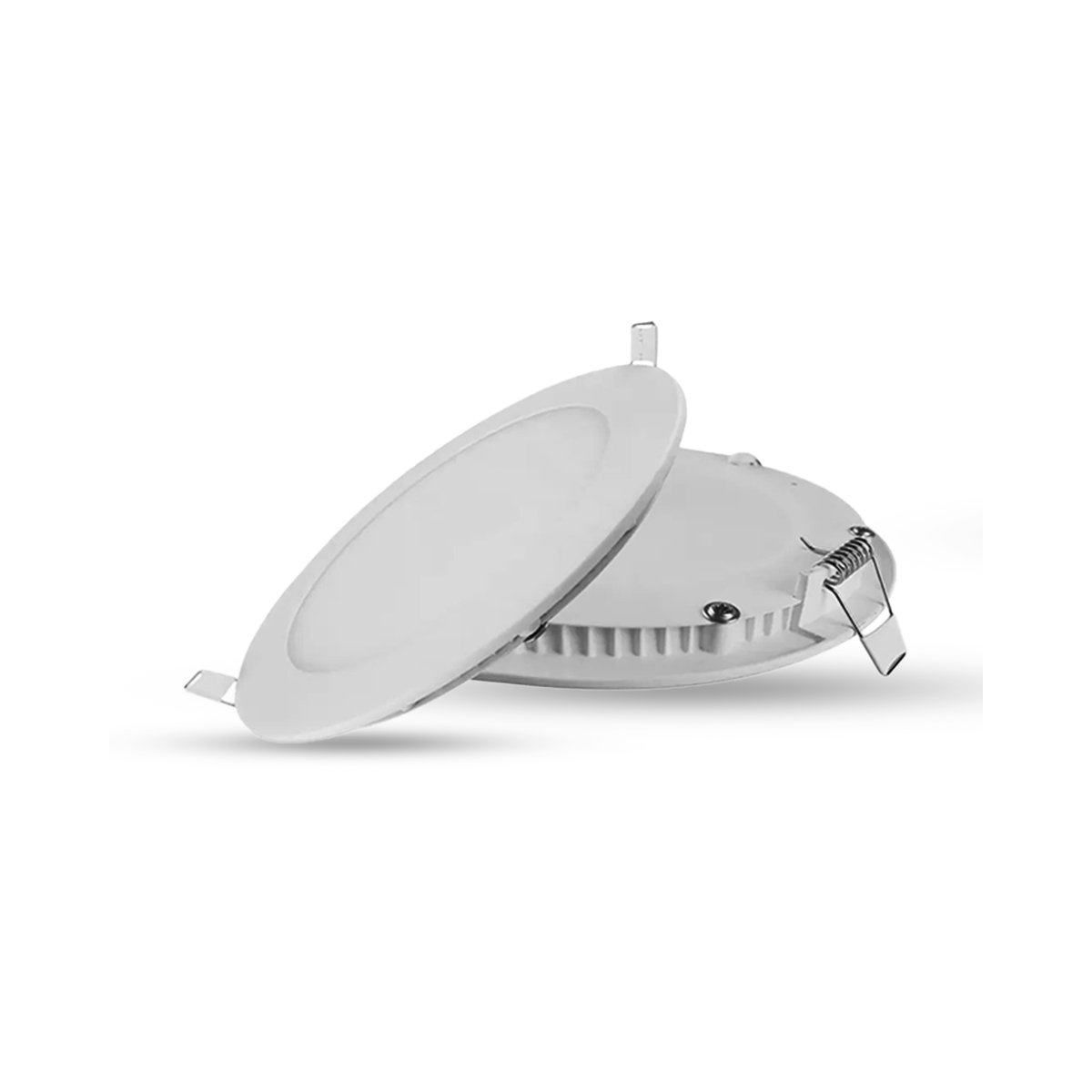

Smart Ceiling Downlight 10W RGB
A Smart Ceiling Downlight 10W RGB is an energy-efficient LED light fixture that fits into a ceiling. It consumes 10 watts of power. It produces millions of colors (RGB) as well as warm and cool white light. It is "smart" because it can be controlled remotely via a smartphone app or voice assistants like Amazon Alexa and Google Assistant. Smart Ceiling light offers features like dimming, scheduling, and pre-set "scene" modes.
Key features
-
Wattage: 10W LED, making it energy-efficient compared to traditional halogen bulbs.
-

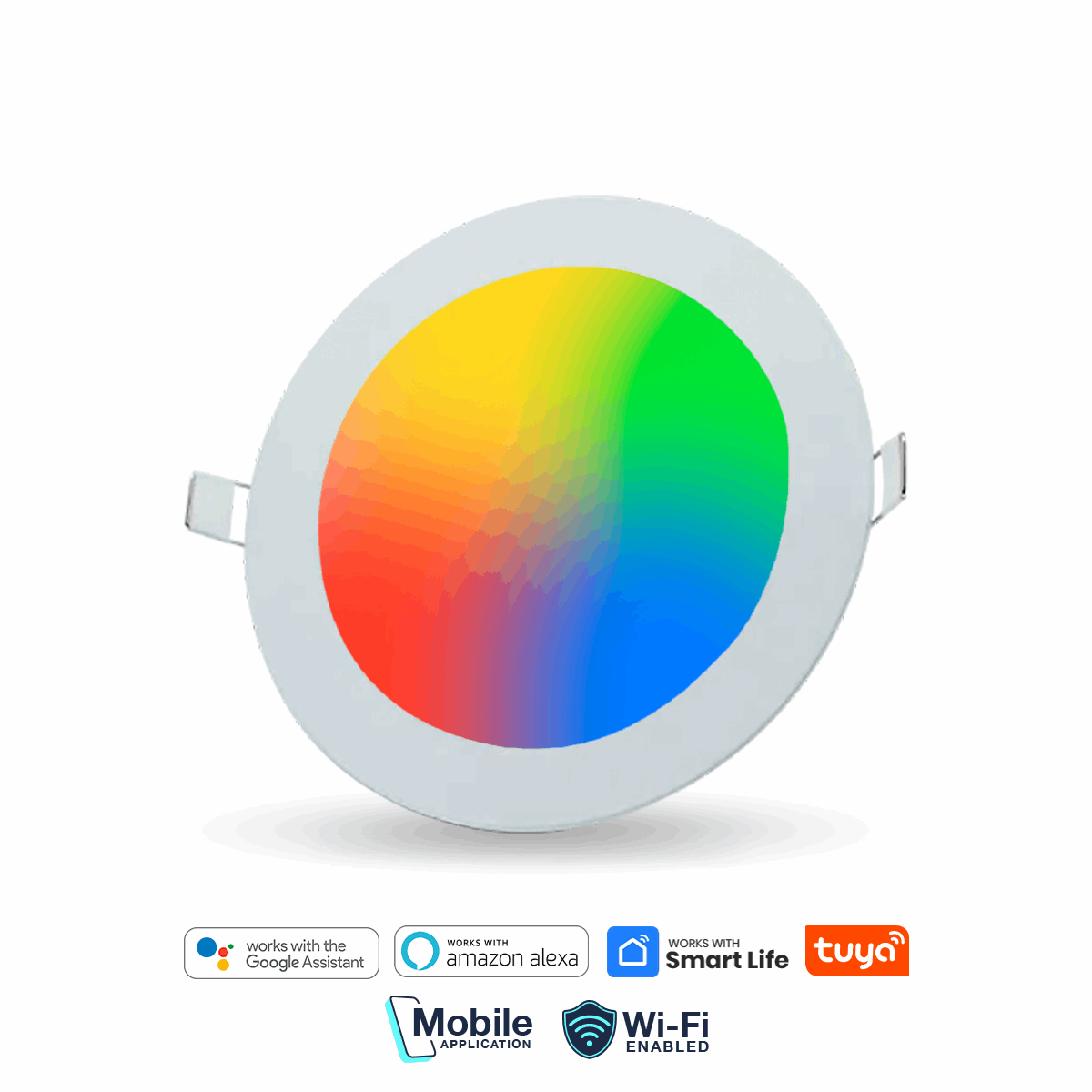

Color Options: Produces a full spectrum of RGB colors plus adjustable warm white and cool white light (RGB+CW+WW).
-
Control: Managed through a smartphone app like Tuya Smart or Smart Life. Compatible with smart assistants like Alexa and Google Assistant.

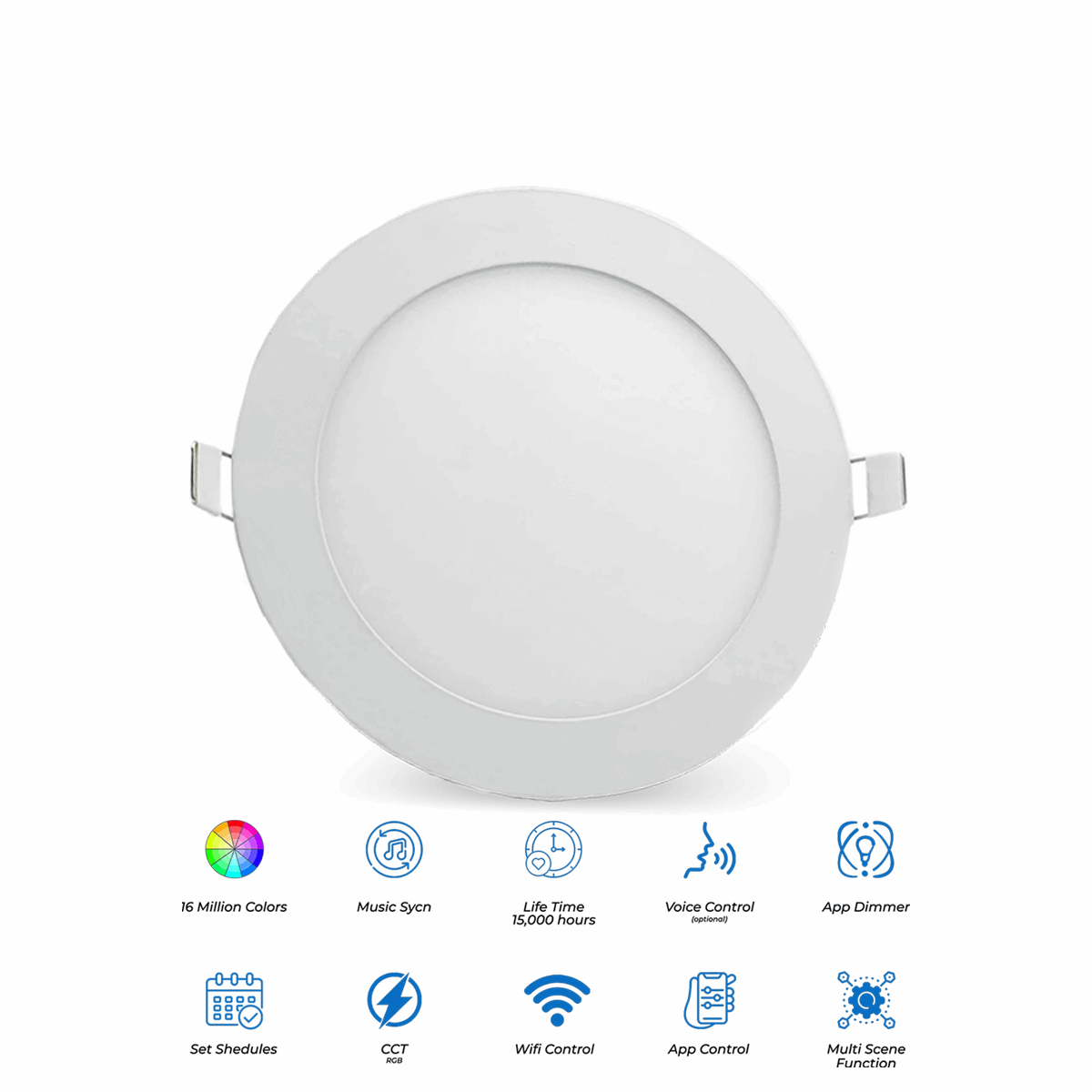

Smart Functionality:
-
Adjust the brightness and color temperature.
-
Set the lights to turn on or off at specific times.
-
Manage multiple lights at once.
-
Offers various pre-programmed lighting effects or allows you to create your own custom scenes.
-
Connects to your home's Wi-Fi network to enable remote and voice control.
Technical Specifications:
| Specification | Details |
|---|---|
| Power | 10W LED |
| Lighting | RGB + Cool White + Warm White |
| Connectivity | Wi-Fi 2.4GHz (Wi-Fi model), Bluetooth (BT model) |
| Voice Control | Alexa / Google Assistant (Wi-Fi only) |

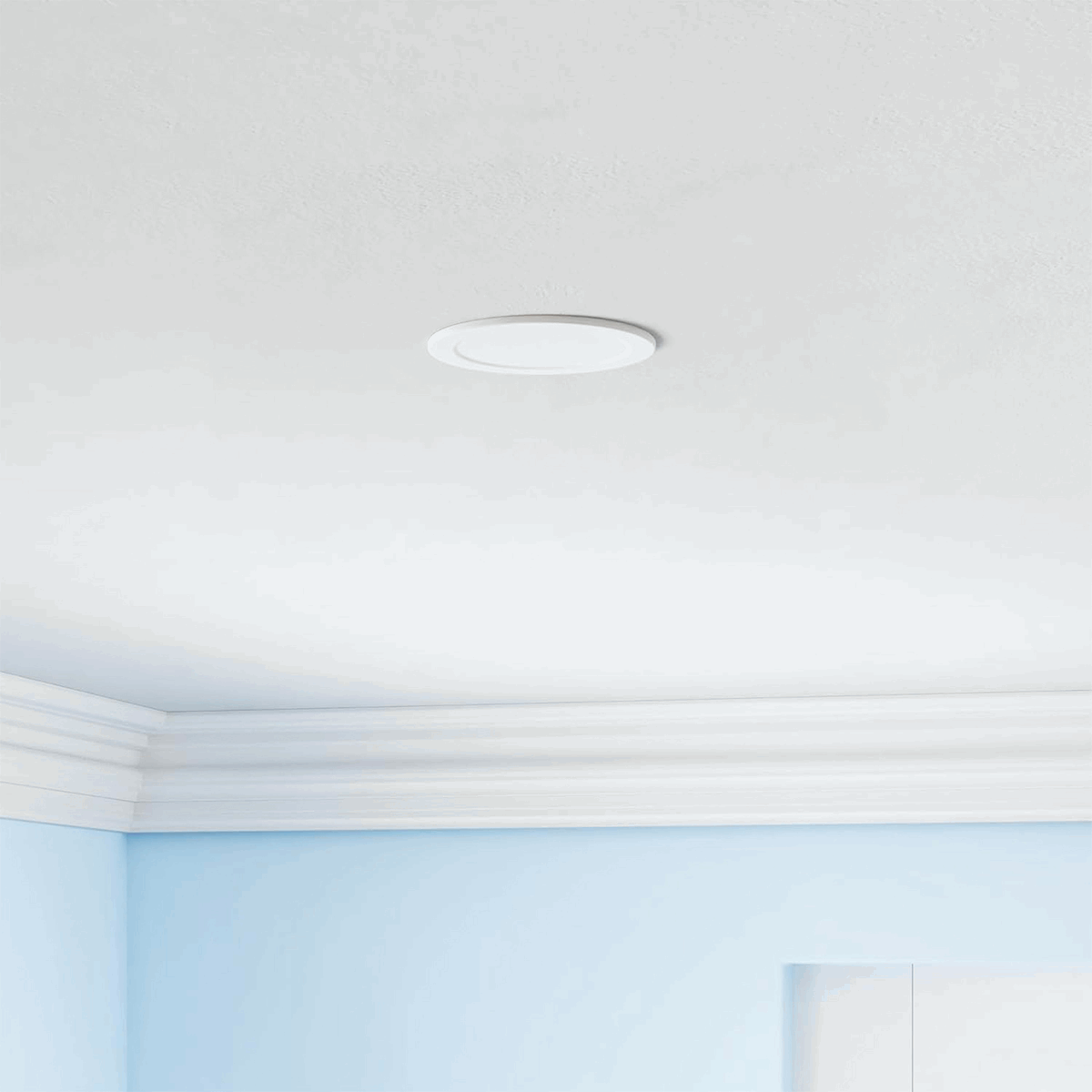

| Mount Type | Recessed Ceiling (⌀ 90–100mm) |
| Socket | E27 |
| Material | ABS + Aluminum |
| Lifespan | 30,000+ Hours |
Working Process of Smart Ceiling Downlight 10W RGB
A 10W RGB smart ceiling downlight is a network-connected recessed lighting fixture that uses energy-efficient LEDs, a microchip, and a wireless module (usually Wi-Fi) to allow color and brightness control via a smartphone app or voice commands.
Internal Components
The downlight integrates several key components within its structure:
-
LED chips: The light source consists of multiple surface-mounted diode (SMD) emitters, specifically red (R), green (G), and blue (B) LEDs. Many models include separate Cool White (CW) and Warm White (WW) LEDs (often called RGB+CCT or RGBCW) for a full spectrum of white light from 2700K to 6500K.
-
LED Driver: This internal electronic circuit converts high voltage AC (Alternating Current) mains power (typically 85V-265V) into the low voltage DC power required by the LEDs, ensuring a constant current supply for optimal performance and lifespan.
-
Microcontroller: The “brain” of the device, this integrated circuit processes incoming commands and controls the power delivery to the different colors LEDs via Pulse Width Modulation (PWM) to achieve the desired colors and brightness levels.
-
Wireless Communication Module: A built-in Wi-Fi chip (typically 2.4 GHz) or Bluetooth module allows the downlight to connect to your home network without a separate hub for basic functions.
-
Heat Sink: LEDs produce minimal heat compared to traditional bulbs, but a heat sink is still necessary to dissipate this heat and ensure the longevity of the LED chips and electronics.
Working process
Power and connectivity: When installed and powered on at the wall switch, the downlight's internal electronics start up and connect to the configured 2.4 GHz Wi-Fi network.
Manual operation (if available) / default state: When the wall switch is used, the light turns on in its last used setting (due to the power memory function) or in the default white light.
App/voice command: Commands are initiated via a mobile app (e.g. Tuya Smart App or Smart Life App) or voice assistant (Amazon Alexa, Google Assistant).
Signal transmission: The command travels over the internet to a secure cloud server, which then sends it back to your home router.
Execution and color mixing: The downlight's wireless module receives the signal. The microcontroller processes the command and precisely adjusts the power delivered to the red, green, blue, and white LEDs to produce the correct color and brightness (from 16 million color options and dimming levels).
Status Confirmation: The downlight sends a confirmation signal to the app/cloud, providing real-time status updates.
Advanced Modes: The microcontroller also manages features such as “Music Sync” (changing colors with sound/music), pre-programmed “scenes,” and scheduled timers based on user settings in the app.
Comparison Table:
| Feature | Wi-Fi Version | Bluetooth Version |
|---|---|---|
| App Control | ✅ | ✅ |
| Voice Assistant (Alexa/Google) | ✅ | ❌ |
| Connectivity | Wi-Fi 2.4GHz | Bluetooth |
| Music Sync | ✅ | ✅ |
| Group Control | ✅ | ✅ |
