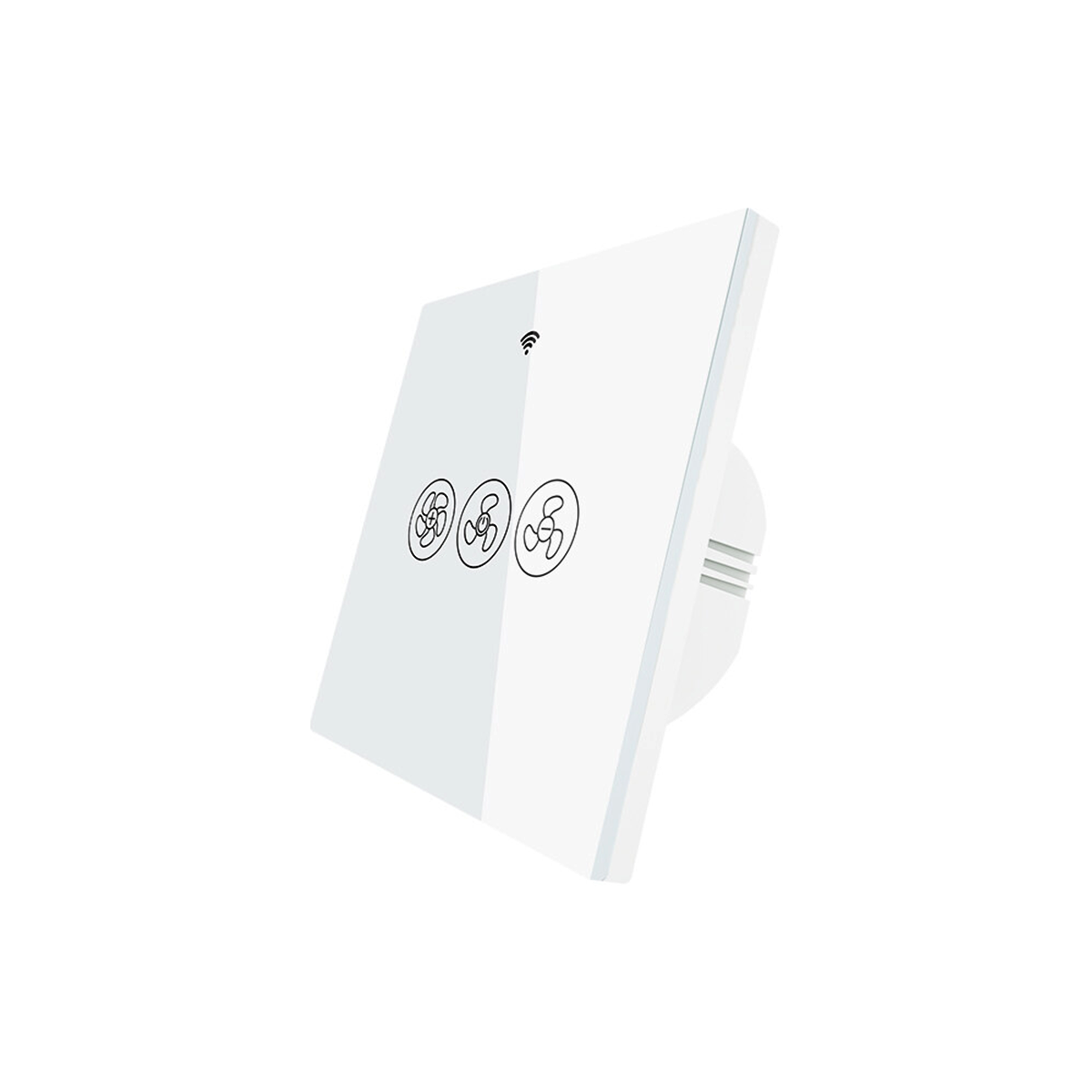

Smart Fan Switch

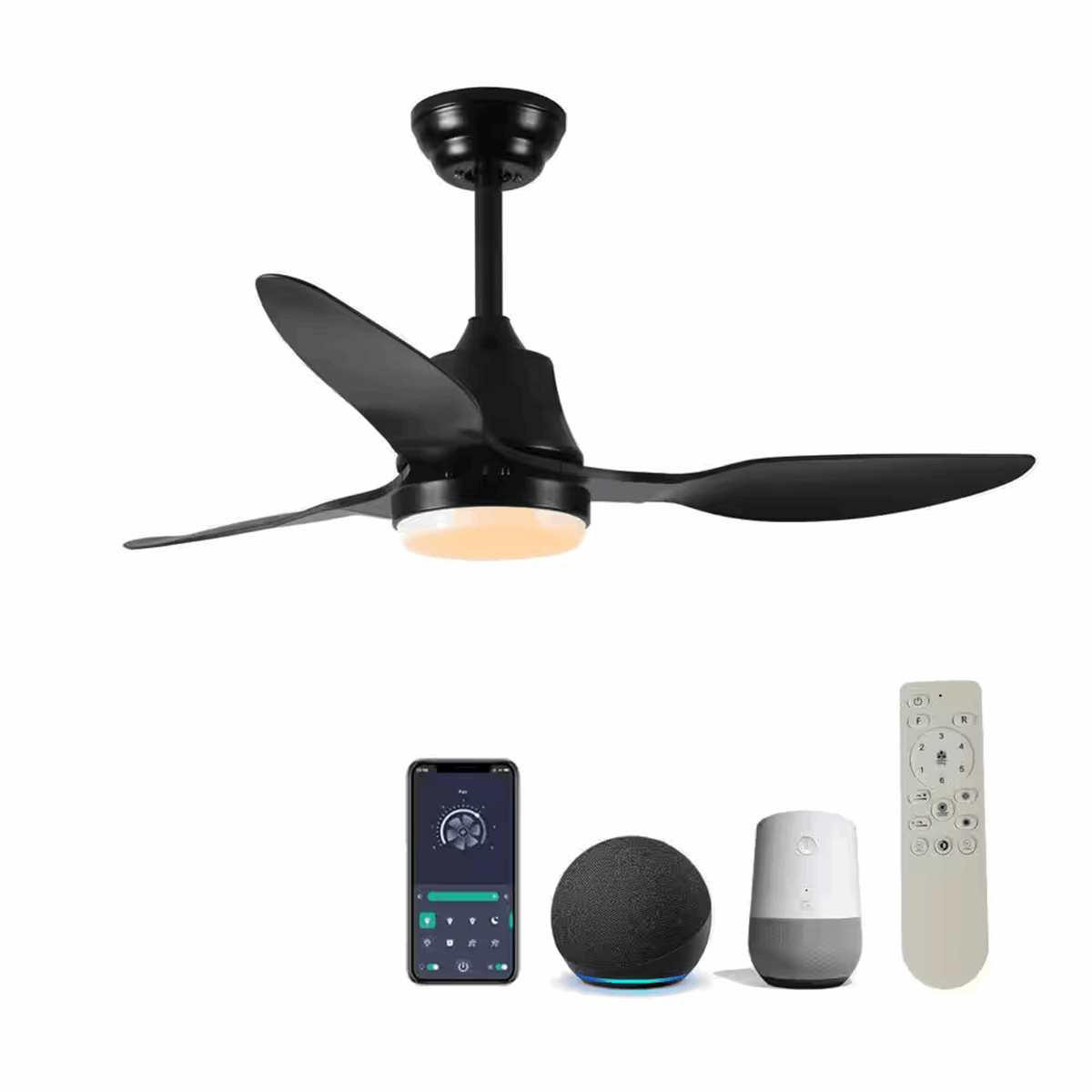

A smart fan switch is a Wi-Fi-enabled or smart home device. It replaces a traditional wall switch to provide remote control over the power, speed, and sometimes its lighting of a ceiling fan. Users can operate the fan from their smartphone using voice commands with a smart assistant like Alexa or Google Assistant and set a schedule or timer for automated operation.
Key Features
-
Remote Control: Turn your fan on or off and adjust the speed from anywhere using a smartphone app.
-
Voice Control: Connect with a smart assistant like Alexa or Google Assistant to control the fan with voice commands.
-
Scheduling and Timer: Set specific times for the fan to turn on or off, which can help save energy.
-
Speed and Light Control: Adjust the fan speed and/or dim the light (if it has a compatible light kit) via the switch or app.
-

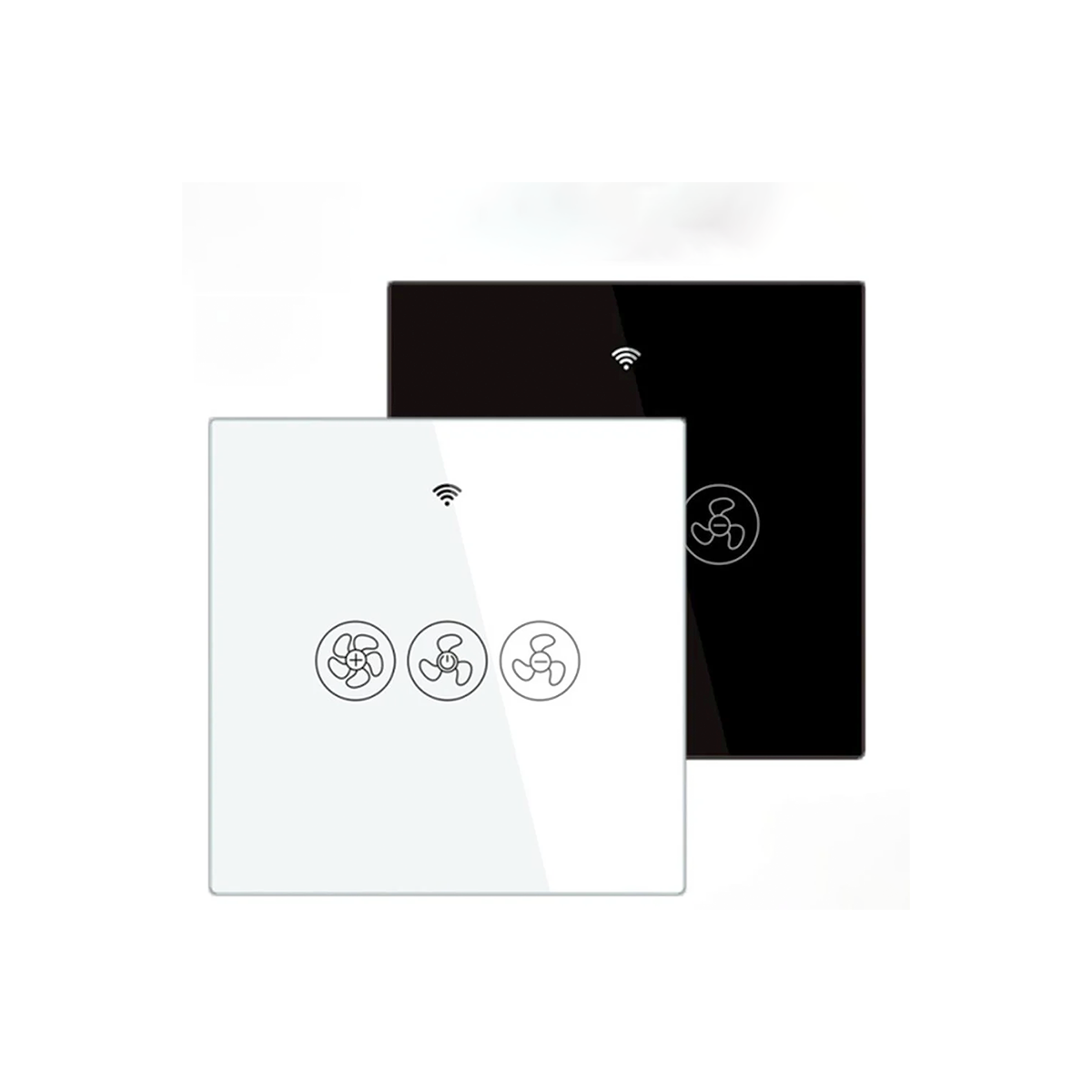

Grouping: Switch multiple smart fans together for unified control in larger spaces.
-
Integration: Connect with other smart home devices to create automated "smart scenes".
Technical Specifications:
| Feature | Details |
|---|---|
| Type | Smart WiFi Ceiling Fan Switch (RF Supported) |
| Connectivity | 2.4GHz WiFi + RF Remote |
| Power Supply | AC 110V–250V |

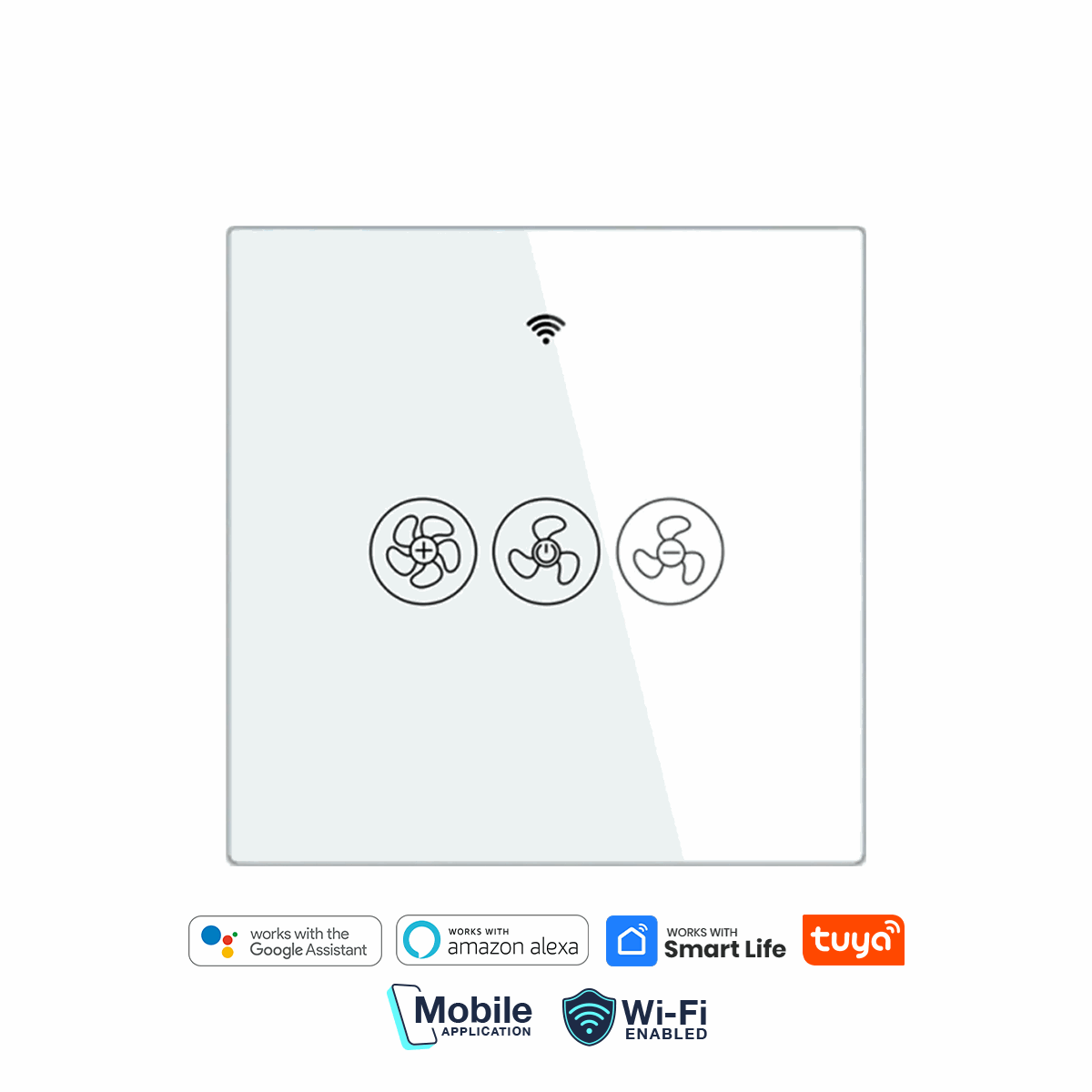

| Voice Assistant | Alexa & Google Assistant Compatible |
| App Support | Tuya Smart / Smart Life (Android & iOS) |
| Control Methods | App / Voice / RF Remote |
| Functions | On/Off, Speed Control, Timer, Schedule |
| Material | High-Quality ABS Plastic |
| Installation | Standard Wall Box Fit |
| RF Range | Up to 10 meters (line of sight) |
| Operating Temp. | Indoor Use Only |
Smart Fan Switch Working

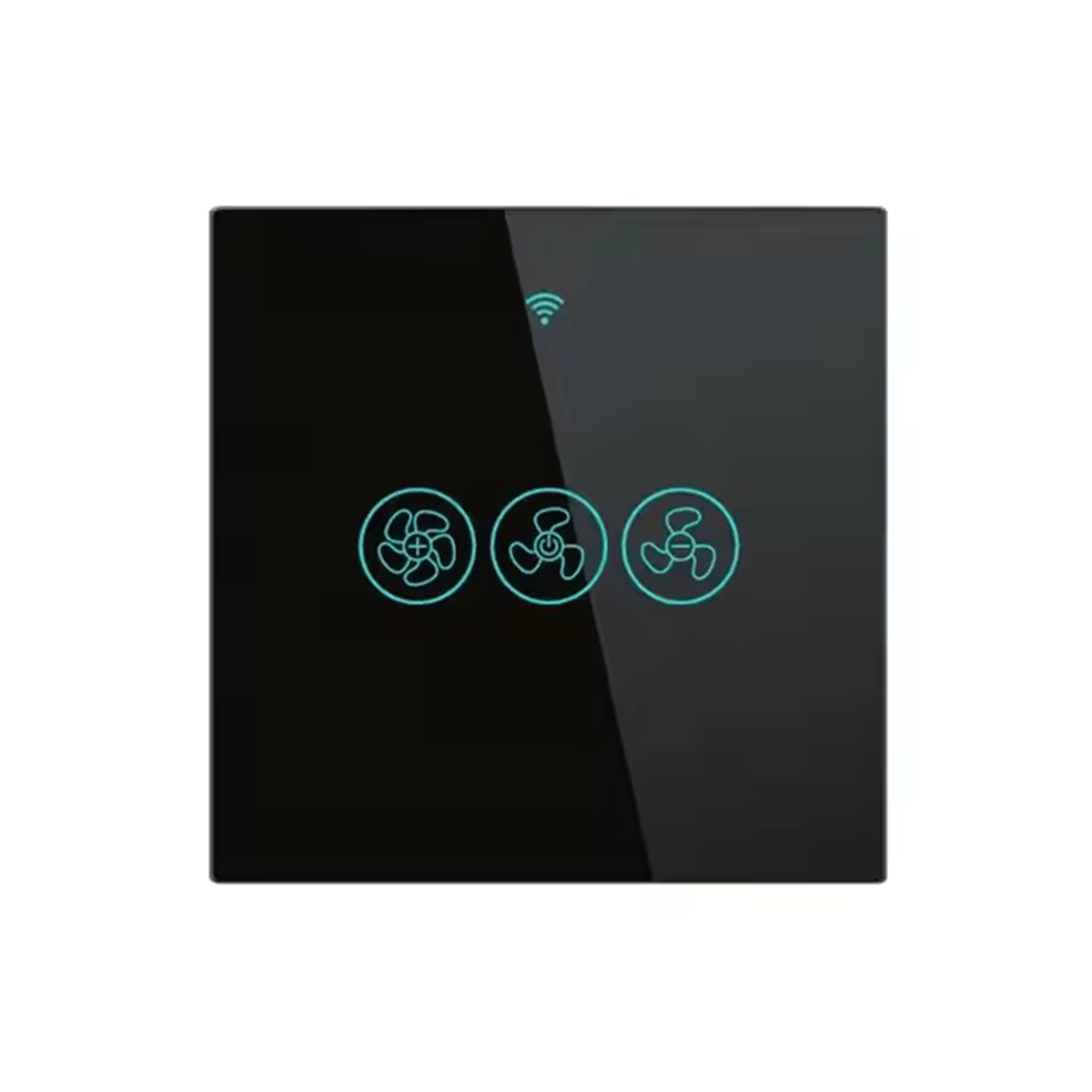

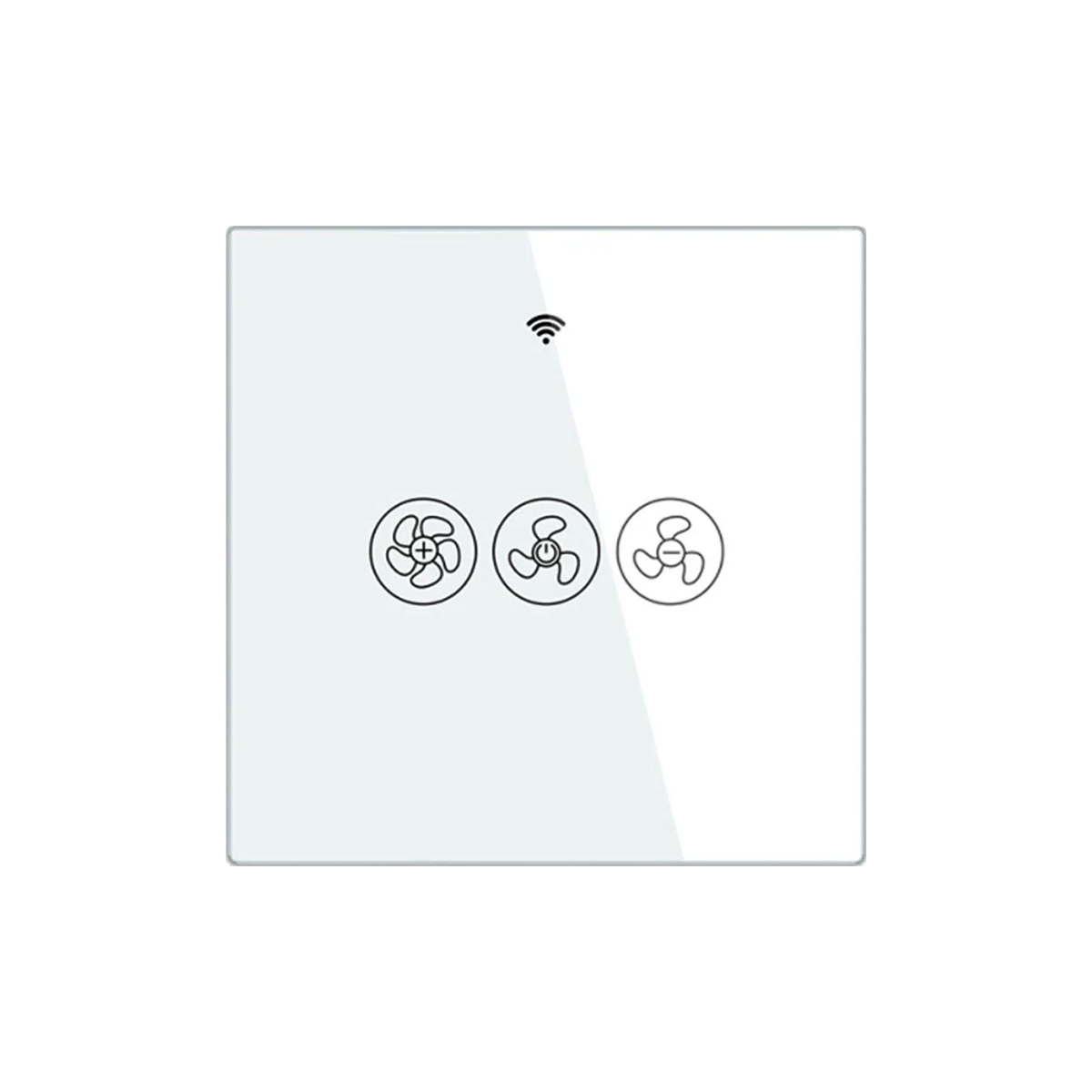

A smart fan switch with dedicated buttons for “Speed Up”, “On” and “Speed Down” works by using a microcontroller to interpret inputs (touch, voice, or from an app) and modulate the electrical power to the fan motor to precisely regulate its rotation speed.
Working Process
The process flow is modeled after a three-button interface:
Input Registration:
-
Touch Panel: When you tap “Speed Up”, “Speed Down” or “On/Off” on the glass panel. The capacitive sensor detects the input of that specific button and sends a signal to the MCU.
-

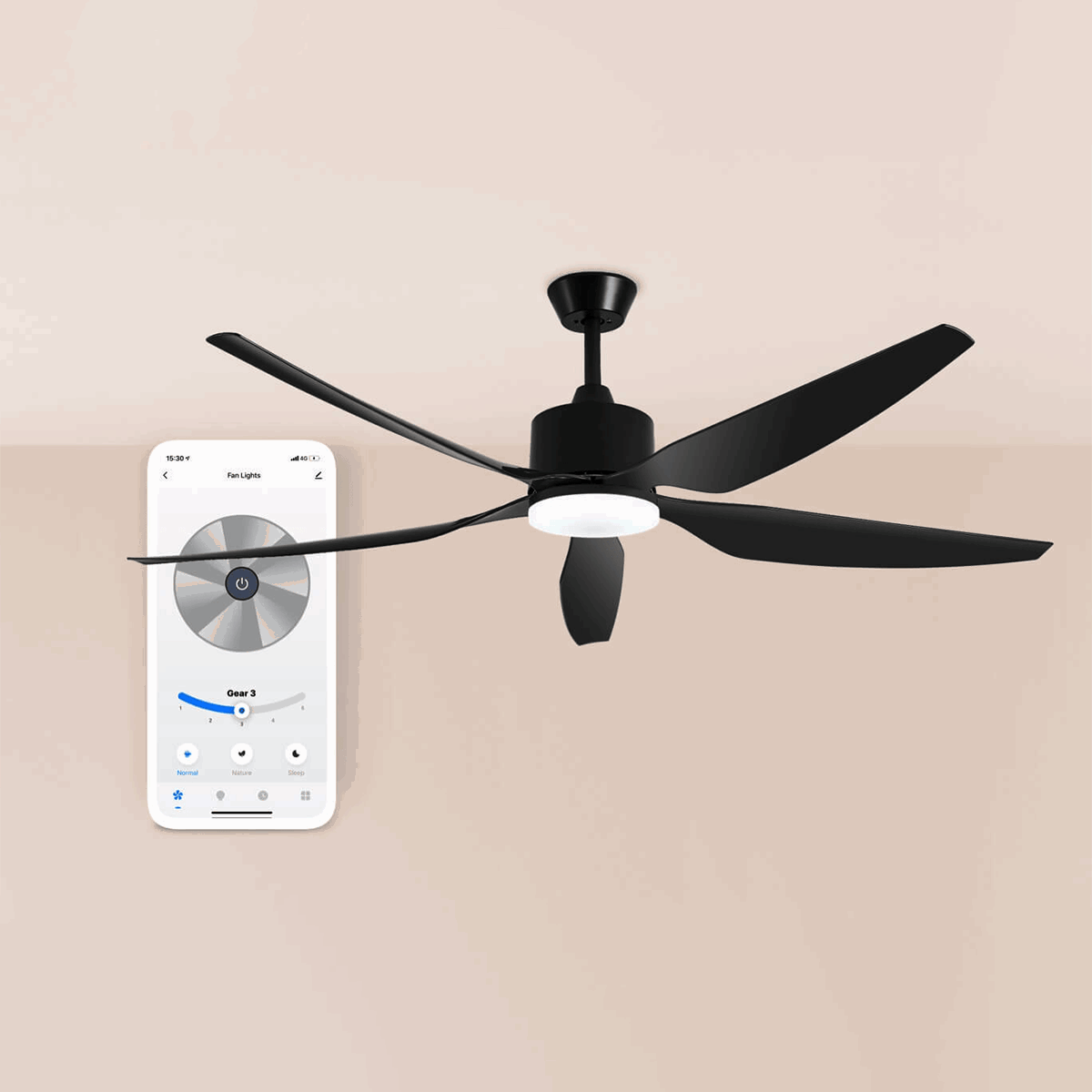

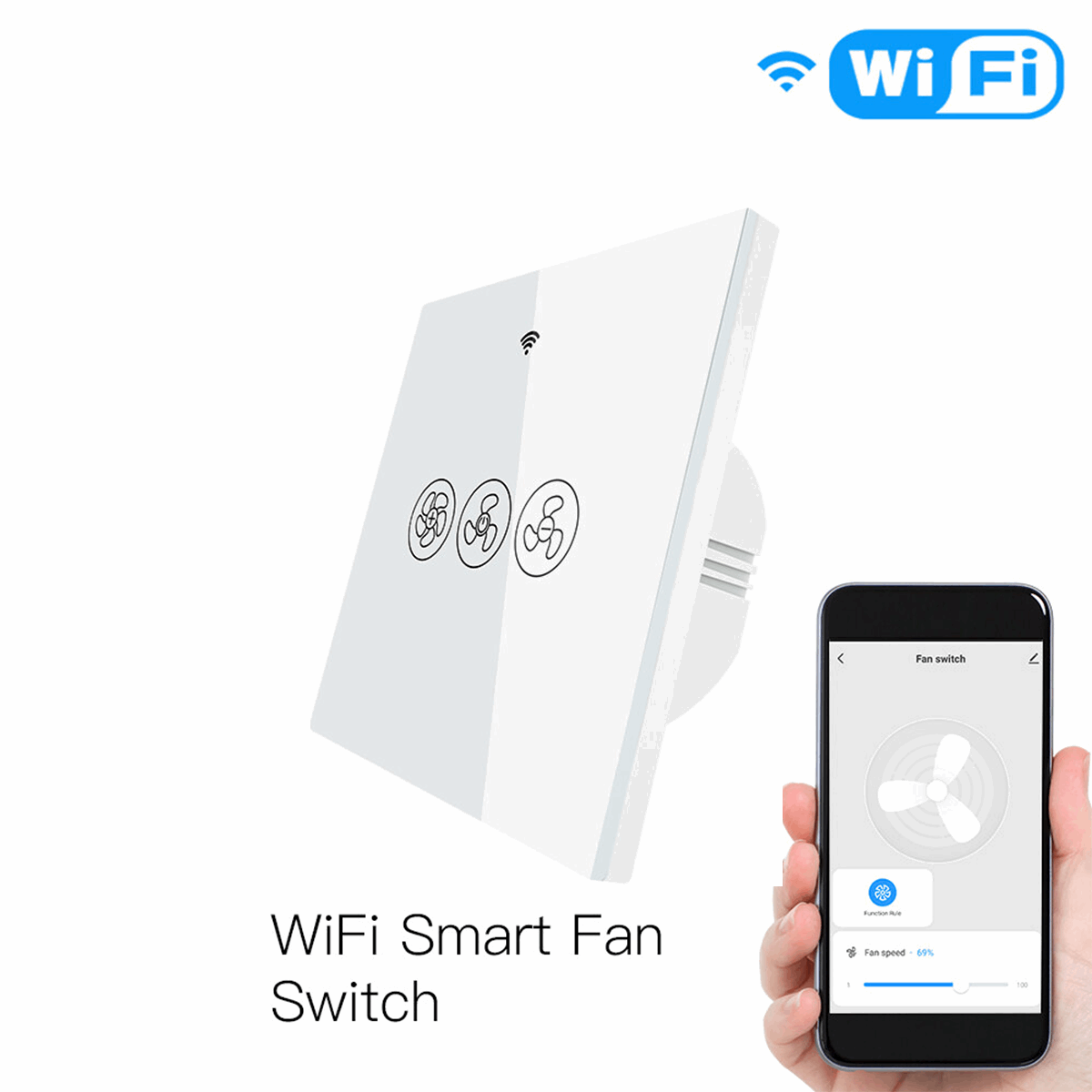

Smartphone App: The app interface mirrors the physical buttons, allowing you to tap the corresponding functions from anywhere (for example, use the in-app slider or the dedicated +/- button).
-
Voice Control: When you issue a command like “Hey Google, increase the fan speed,” the voice assistant platform processes the natural language and sends the corresponding digital command to the switch via the cloud.
Command Interpretation and Logic: The MCU interprets the specific button press or digital command:
-
A “Increase Speed” command tells the MCU to provide a slightly higher power to the motor than the current setting.
-
A “Decrease Speed” command tells the MCU to provide a slightly lower power.
-
A “On/Off” command tells the MCU to either fully complete or break the circuit.
Power Modulation and Execution: The MCU instructs the internal control circuitry to adjust the electrical current/voltage supplied to the fan motor. This allows the motor speed to be changed easily and safely.
Feedback and Status Sync: Current speed settings and on/off status are registered by the MCU and communicated to the mobile app in real-time, ensuring that the app interface always displays the correct fan speed level.
Smart Fan Switch vs Regular Wall Switch:
| Feature | Smart Fan Switch | Regular Switch |
|---|---|---|
| Remote Control | Yes (App + RF) | No |
| Voice Assistant Support | Alexa & Google | No |
| Timer/Scheduling | Yes | No |
| Speed Control | Yes | Manual Only |
| Energy Efficiency | High (with automation) | Low |
| Installation | Standard Wall Box | Standard Wall Box |
