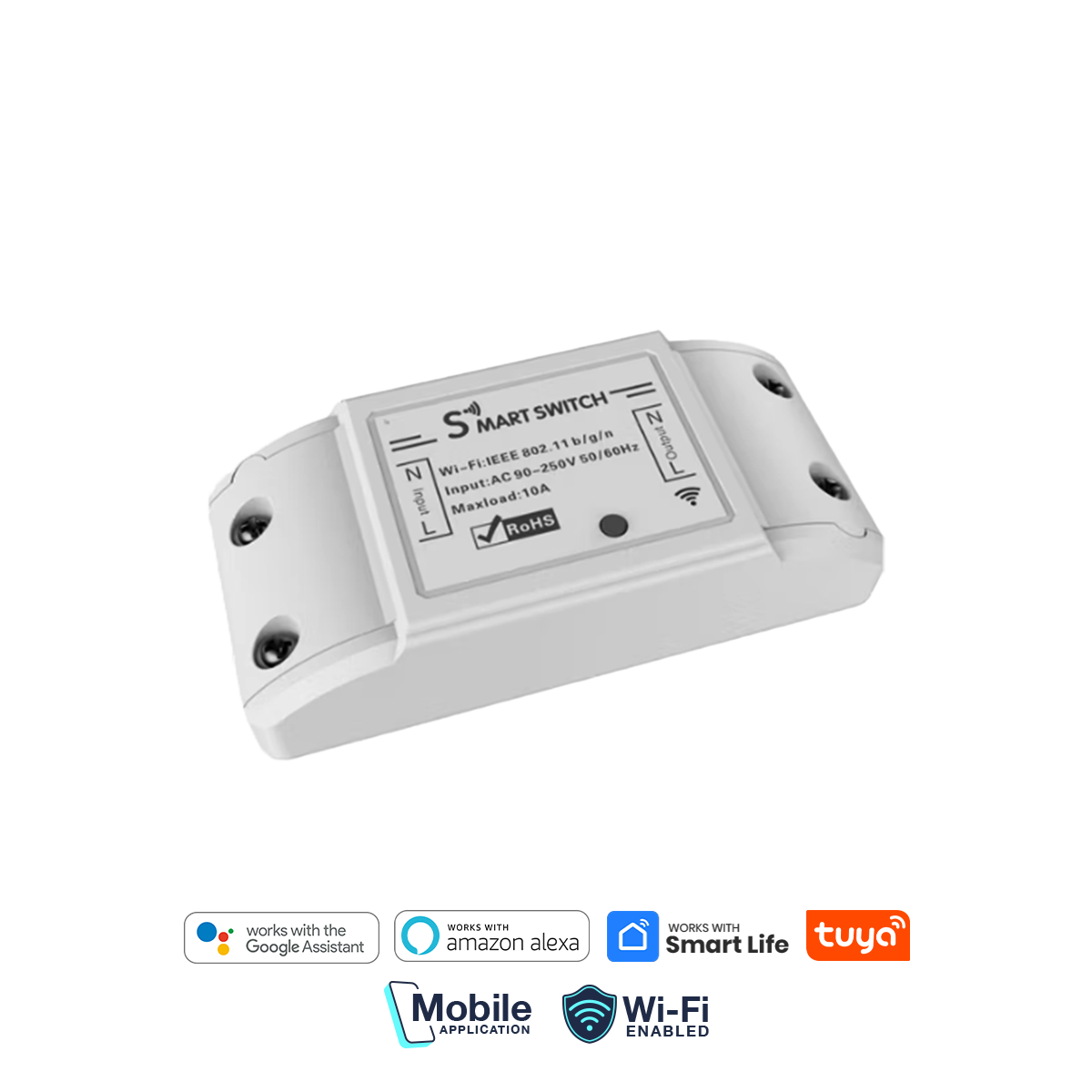

Smart In Wall 1 Gang Switch 10A
A Smart In Wall 1 Gang Switch 10A is a smart home device that replaces a standard light switch to control a single light or appliance. It is designed to be installed in a single-gang electrical box. Its current rating is 10A. You connect to your home Wi-Fi network to allow remote control via a smartphone app. You can use voice assistants such as Alexa or Google Assistant, and manual touch control.

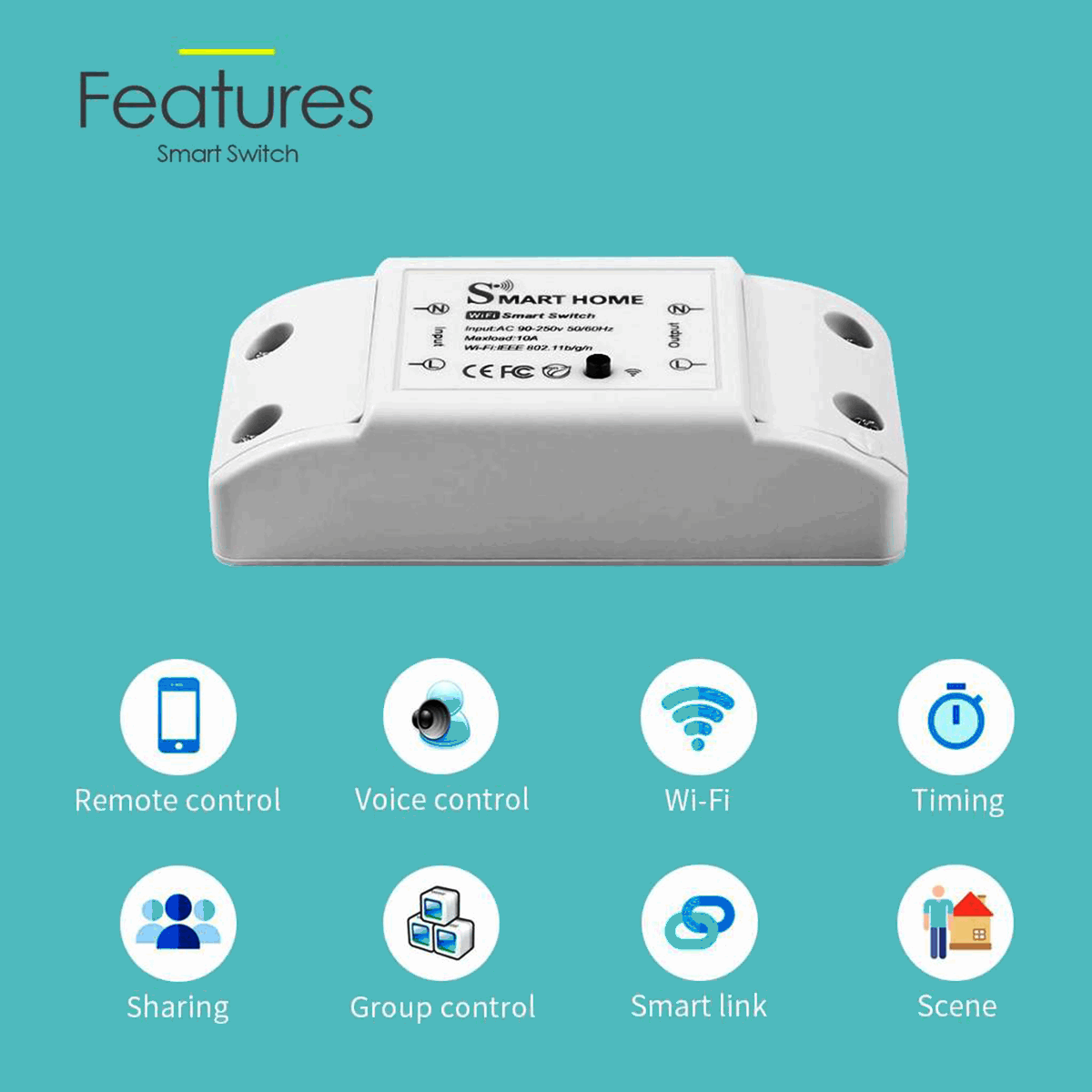

Key Features
-
Smart Control: Manage lights and appliances from anywhere using your smartphone and the associated app.
-
Voice Control: Compatible with voice assistants such as Amazon Alexa and Google Assistant.
-
Scheduling and Timer: Set automatic schedules and countdown timers to turn appliances on or off at specific times.
-
Remote and Manual Operation: Offers both remote control via the app and touch control on the switch panel itself.
-
Installation: Replaces a traditional wall switch and connects to your home’s 2.4 GHz Wi-Fi network.
-
1 Gang: This refers to a single switch on the faceplate, designed for one circuit.
-
10A Rating: This specifies the maximum current (amperage) the switch can handle, which is suitable for many standard lights and appliances.
Technical Specifications:
| Feature | Details |
|---|---|
| Rated Power | Up to 2,200W |
| Current Support | Max 10A |
| Voltage Input | 100–240V AC, 50/60Hz |
| WiFi Compatibility | 2.4GHz only |
| Mobile App | Tuya Smart (iOS & Android) |
| Voice Control | Amazon Alexa & Google Assistant |
| Loadshedding Memory | ON / OFF / Last State |
| Installation | Plug-and-Play (DIY) |
Working Process Smart In Wall 1 Gang Switch 10A:
The working process of the 1 Gang 10A Smart In-Wall Switch integrates traditional electrical switching with modern wireless communication to provide both manual and remote control of connected lights or appliances.
Working Process (Manual Control)
Input: A user physically interacts with the switch (for example, pressing a touch surface or pedal).
Internal Signal: Mechanical or touch input is detected by the internal microcontroller.
Action: The microcontroller sends a signal to toggle the state of the internal relay.
Power Flow: The relay changes state (from closed to open, or closed to open), completing or breaking a 10A electrical circuit to the connected device.

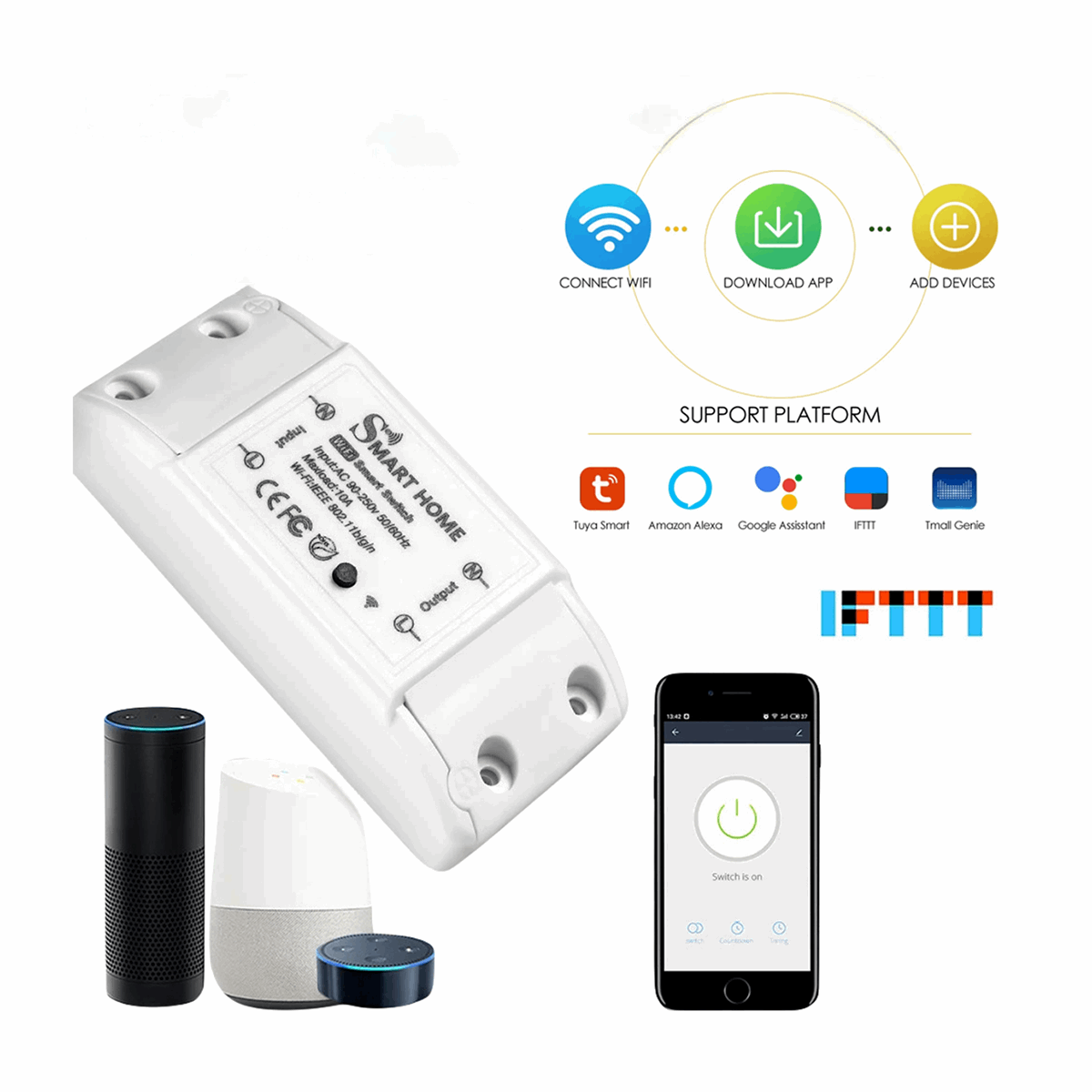

Working Process (Smart Control via Wi-Fi)
The remote or automated control process involves communication over your home network and the internet:
-

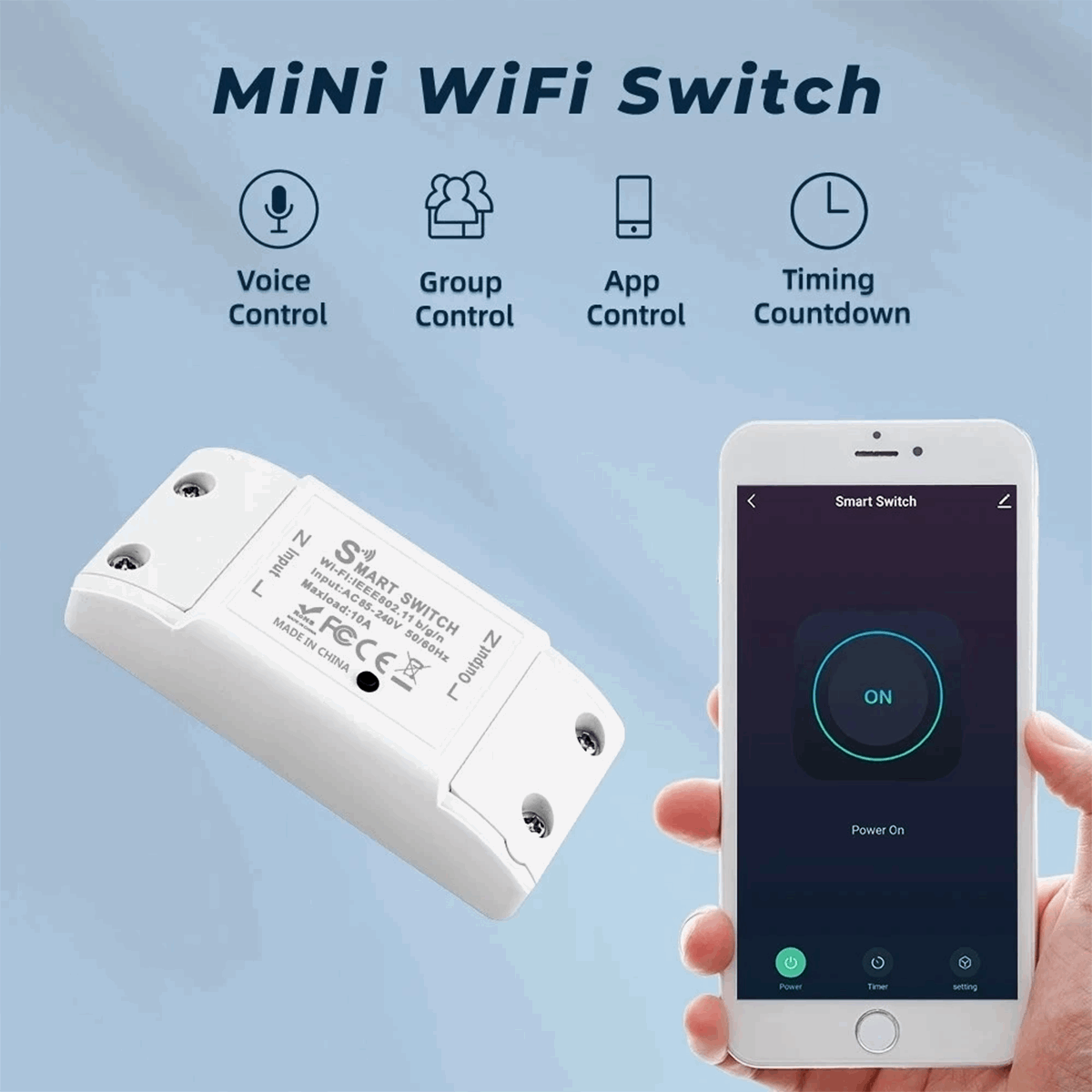

Command initiation: You send the command using a smartphone app (such as the Smart Life app or the Tuya Smart app) or voice assistant (Amazon Alexa, Google Assistant).
-
Cloud transmission: The command travels over the internet from your device to the manufacturer’s secure cloud servers.
-
Local network relay: The cloud server sends the command back to your home Wi-Fi router.
-
Switch reception: The smart switch, which maintains a permanent connection to your Wi-Fi network, receives the specified command.
-
Execution: The switch’s microcontroller receives the instructions and activates an internal relay to physically turn the power flow on or off.
-
Status confirmation: The switch sends a status update to your app via the cloud, confirming that the action was successfully performed and updating the interface in real time.
Smart WiFi Switch 10A vs Regular Socket Timer:
| Feature | Smart WiFi Switch 16A | Traditional Socket Timer |
|---|---|---|
| WiFi Control | ✅ Tuya App (Anywhere) | ❌ Manual Timer Only |
| Voice Control | ✅ Alexa / Google | ❌ |
| Power Rating | Up to 10A / 2200W | Typically Lower (5A) |
| Energy Monitoring | ✅ (Model Dependent) | ❌ |
| Loadshedding Memory | ✅ ON / OFF / Last State | ❌ Resets after power cut |
| Installation | Plug & Play | Plug & Play |
