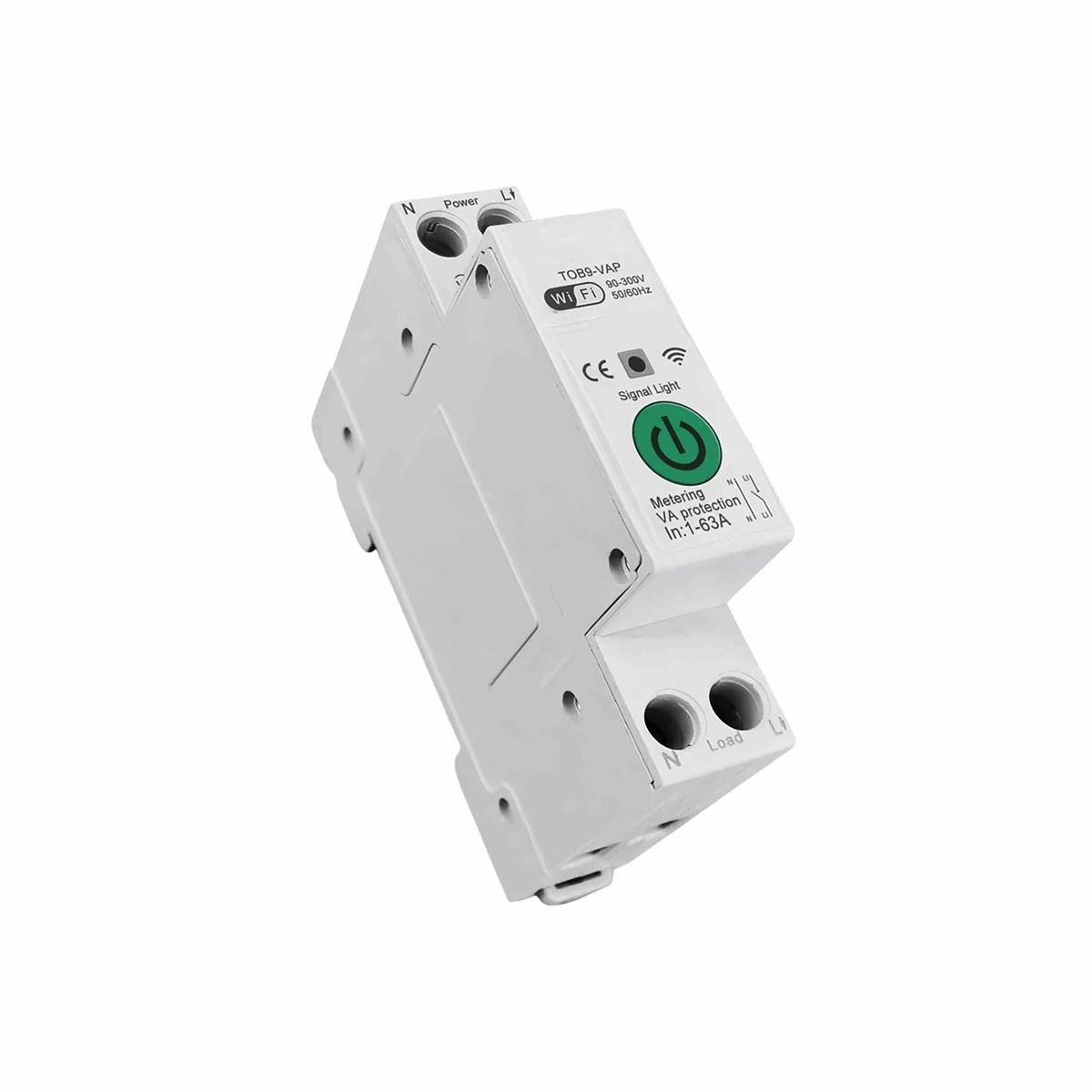

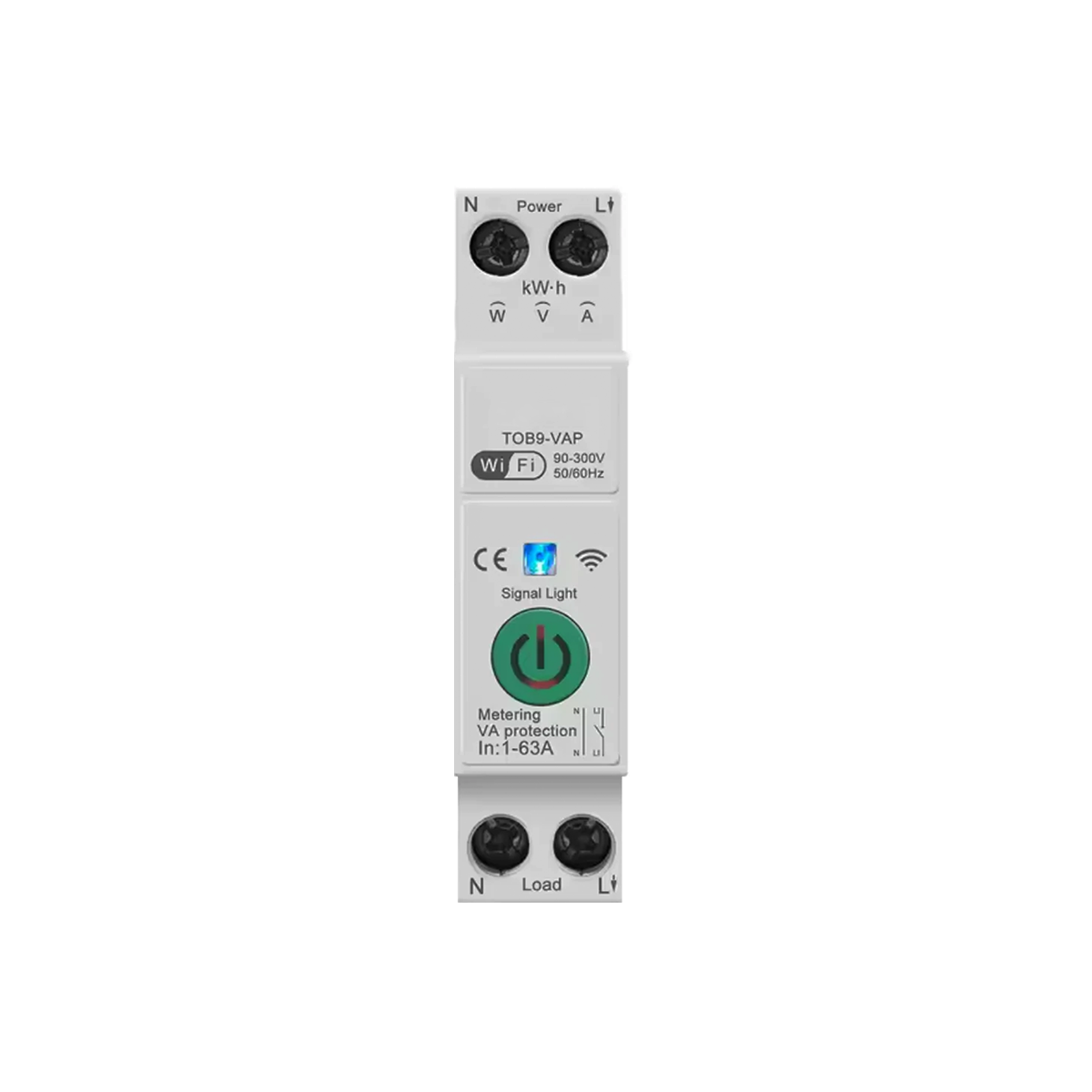

Smart Power Breaker 63A
The Smart Power Breaker 63A is a Wi-Fi-enabled circuit breaker that provides both overcurrent protection and smart home functionality. It allows for remote monitoring and control via a smartphone app. It can handle electrical loads up to 63 amps. It has features like real-time energy monitoring, scheduling, and overload protection. It is an advanced energy management tool for homes or businesses.

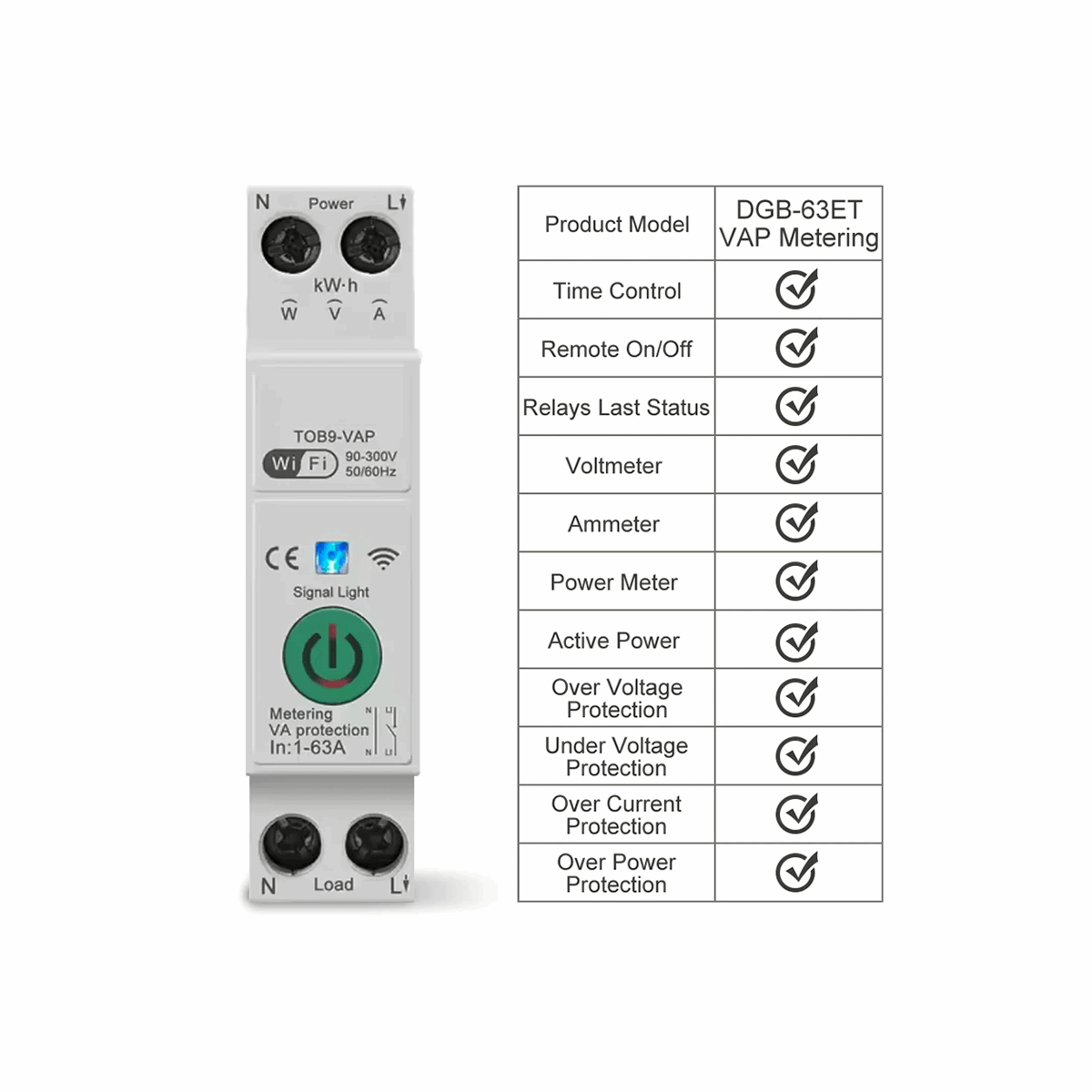

Key Features
-
Remote Control: Turn circuits on or off from anywhere using a smartphone app like Tuya or Smart Life.
-
Energy Monitoring: Tracks real-time electricity usage (kWh, voltage, current) to help you manage your electricity consumption.
-
Scheduling and Automation: Set timers or schedules to automatically control power to appliances.
-
Protection Features: Protects against overloads, overvoltage, and short circuits.
-
Voice Control: Compatible with voice assistants like Amazon Alexa and Google Assistant.
-
Easy installation: Designed to be mounted on a standard DIN rail.
Technical Specifications:
| Specification | Details |
|---|---|
| Type | Smart Circuit Breaker |
| Max Load | 1 – 63A |
| Voltage | 100–240V AC |
| Frequency | 50/60Hz |
| Connectivity | WiFi 2.4GHz only |
| Voice Control | Alexa / Google Assistant |
| Material | Fireproof ABS Plastic |
| Installation | DIN Rail (Standard Electrical Panel) |
| App Support | Tuya Smart / Smart Life |
Working Process Of 63A smart power breaker
A 63A smart power breaker is an advanced electrical safety device that provides traditional circuit protection while adding remote control and real-time energy monitoring capabilities via Wi-Fi connectivity.
Key Features and Working Principles
Overload and Short Circuit Protection: The smart breaker retains the basic functionality of a traditional miniature circuit breaker (MCB) with thermal and magnetic tripping mechanisms. It is designed to immediately and automatically stop a 63A electrical circuit in the event of an overload or short circuit to prevent damage and ensure safety.

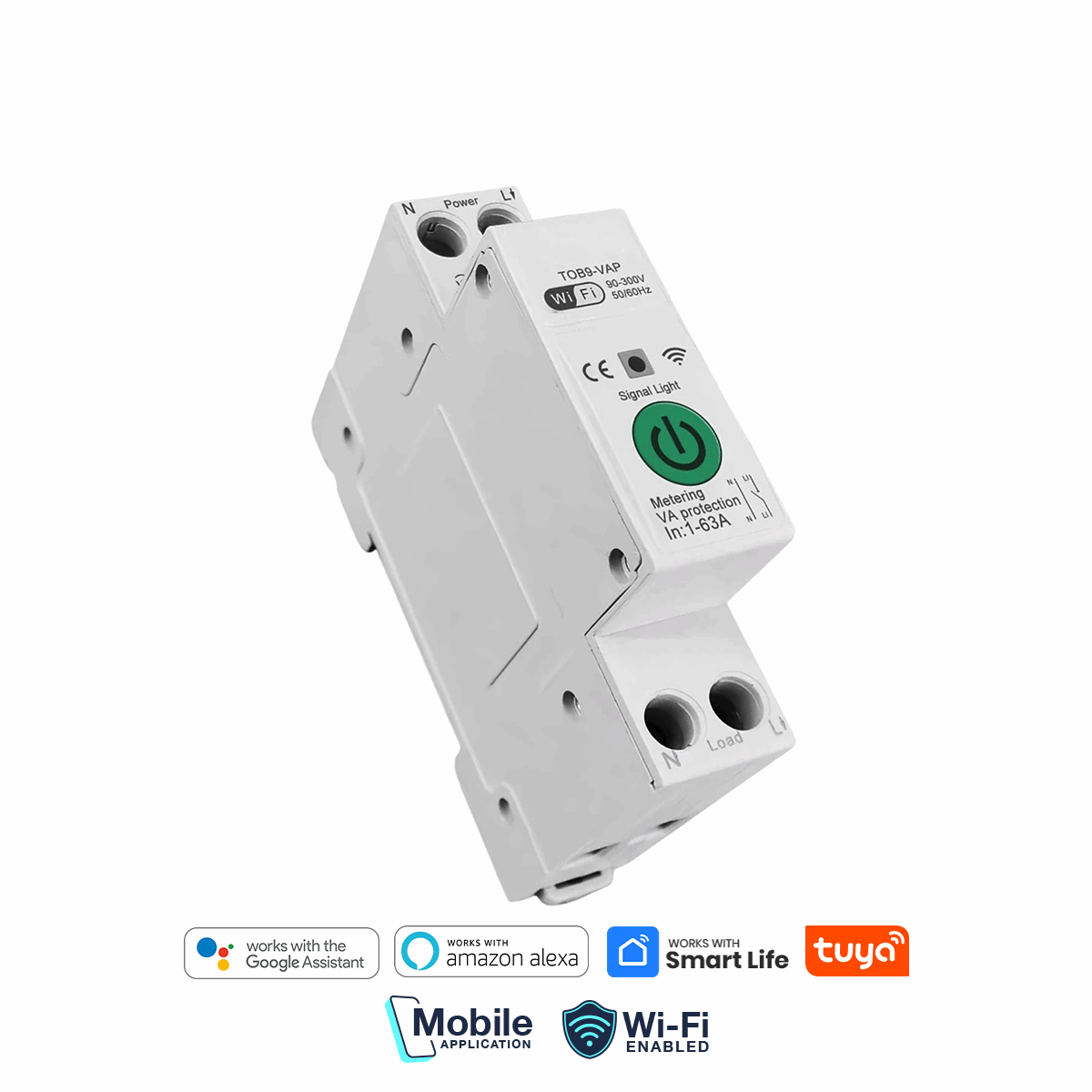

Remote Control: The breaker has a built-in Wi-Fi communication module (typically 2.4 GHz) that connects to the internet. Users can turn the breaker on or off from anywhere in the world using a smartphone app such as the Tuya Smart app or the Smart Life app.
Energy Monitoring: The device is equipped with internal sensors that continuously measure and track electrical parameters in real time. This includes:
-
Voltage (V)
-
Current (A)
-
Instantaneous power (W)
-
Total energy consumption (kWh)
This data is sent to the mobile app, which allows users to monitor usage, identify energy-wasting devices, and optimize energy consumption.
Customizable protection settings: Unlike standard breakers with fixed trip limits, many smart 63A breakers offer adjustable protection settings via the app. Users can set specific limits for:
Overvoltage and under voltage: Automatically trip if the voltage goes outside a predefined safe range (e.g. between 140V-295V).
Overcurrent: The current limit can be adjusted, for example, from 1A to the full 63A capacity, providing tailored protection for different loads.
Automation and scheduling: Smart functions allow for advanced automation, timers, countdowns, and loop controls. For example, the breaker can be programmed to automatically turn off the power to a geyser or pool pump or when a certain energy consumption threshold is reached.
Voice Control: The breaker can be integrated with popular smart home platforms such as Amazon Alexa and Google Assistant, enabling hands-free operation via voice commands.
Smart vs Regular Breaker:
| Feature | Smart Breaker | Regular Breaker |
|---|---|---|
| Remote ON/OFF Control | ✅ Via App or Voice | ❌ Manual Only |
| Real-Time Monitoring | ✅ Live Energy Data | ❌ Not Available |
| Scheduling & Automation | ✅ Fully Programmable | ❌ Not Available |
| Overload Protection | ✅ Yes | ✅ Yes |
| Voice Assistant Support | ✅ Alexa / Google | ❌ No Integration |
