Smart Power Breaker With Monitor – 63A
A 63A Smart Power Breaker with Monitor is a modern electrical device. It combines the overcurrent protection of a standard circuit breaker with smart home technology for remote control and real-time energy monitoring. It protects against overloads, overvoltages, and undervoltages. While allowing users to turn circuits on/off, set schedules, and track energy usage (voltage, current, kWh) via a smartphone app or voice assistant. The “63A” rating indicates that it can handle a maximum of 63 amperes of continuous current.
Key Features
-
Circuit Protection: The primary function is to protect electrical circuits from overloads and short circuits, but additional safety features such as over/under voltage and, in some models, ground fault protection.
-
63A Rating: This means that the device is designed to handle a maximum of 63 amperes of continuous current. At 220V, a 63A breaker can handle a maximum load of about 13,860 watts (\(13.86\) kW).
-

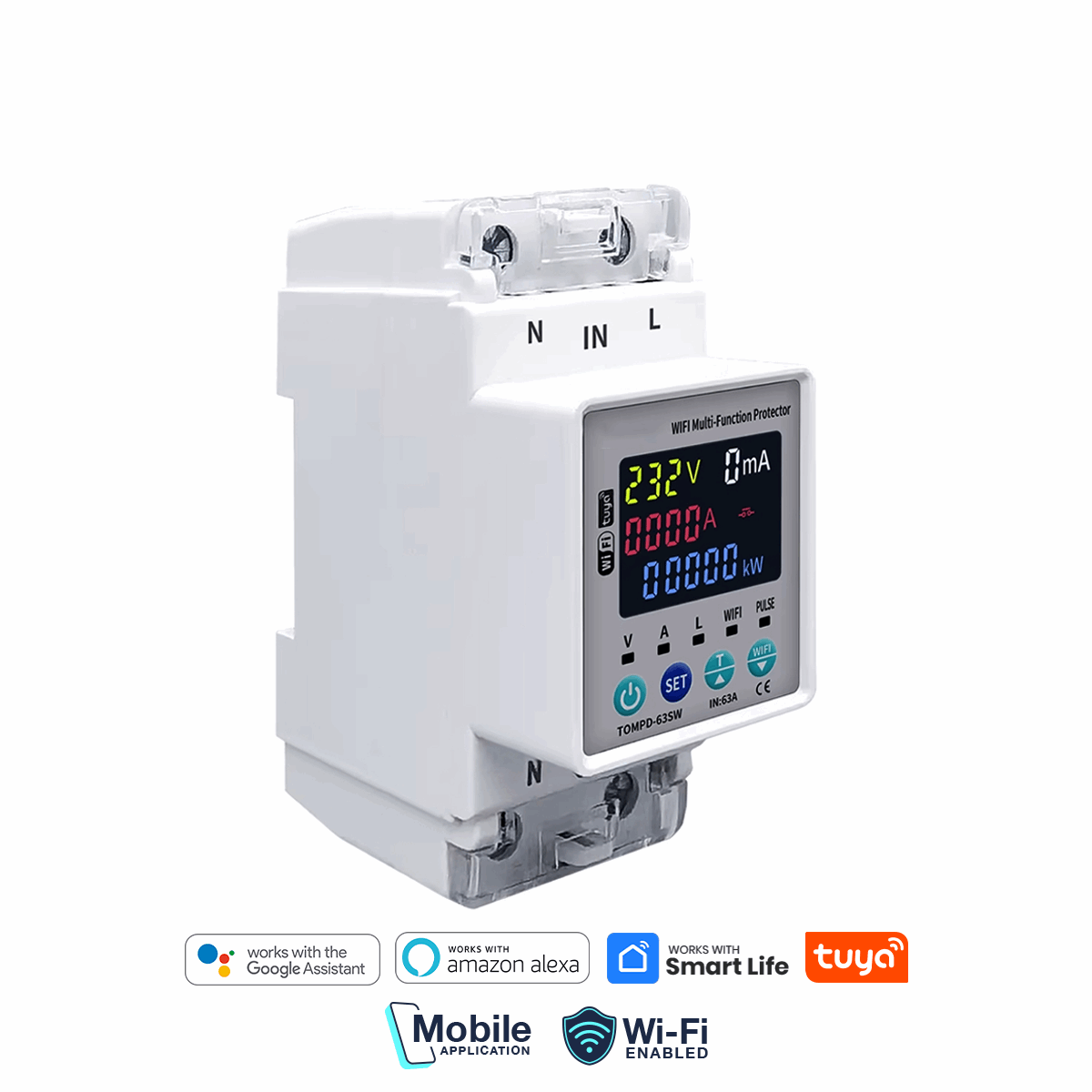

Smart connectivity: It connects to the home’s Wi-Fi network, enabling remote control via a smartphone app like Tuya or Smart Life.
-
Energy monitoring: It provides real-time data on voltage, current, power, and total energy consumption (\(kWh\)).
-
Remote control: Users can turn connected circuits on or off from anywhere using an app.
-
Voice control: It is often compatible with voice assistants like Alexa and Google Assistant for hands-free operation.
-

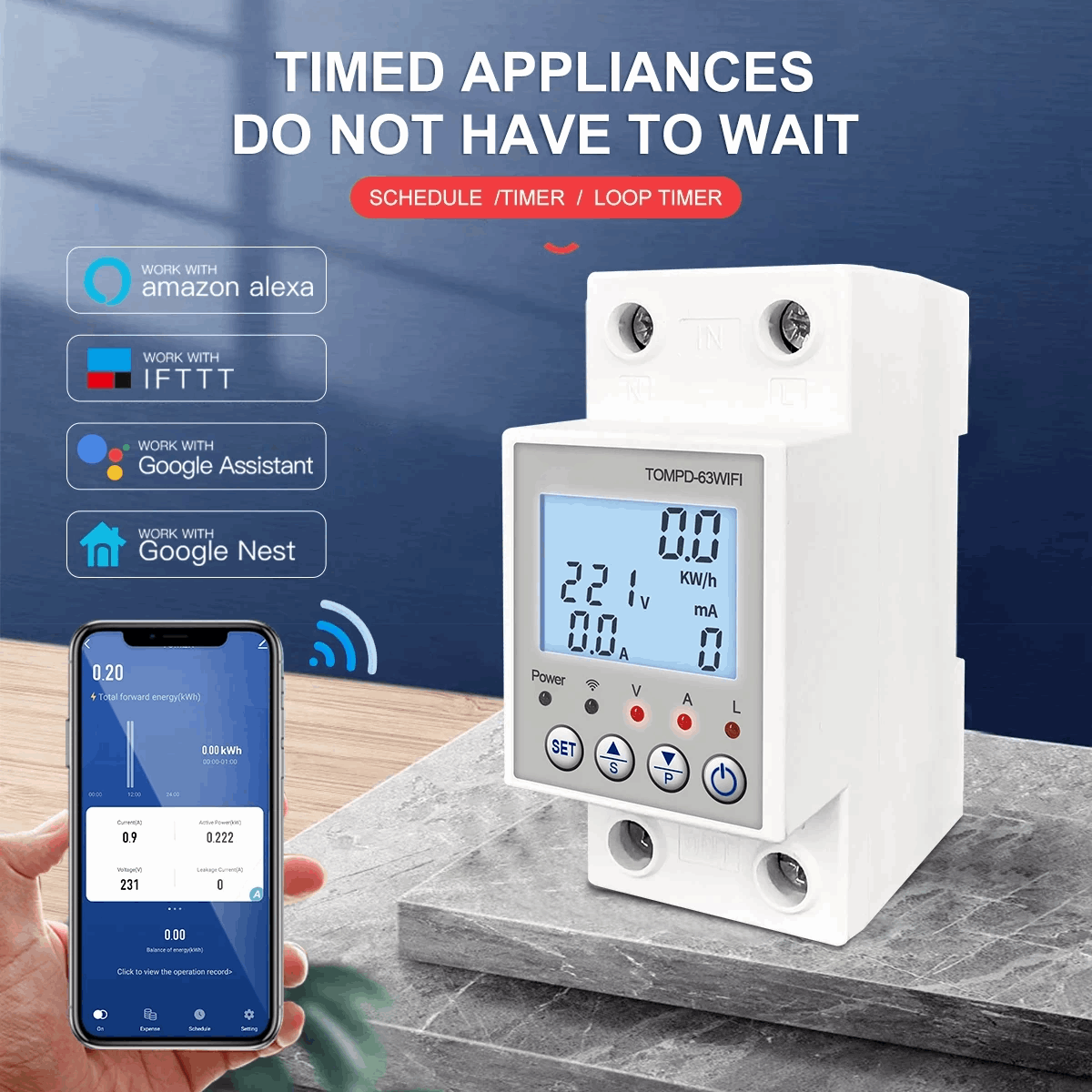

Automation and scheduling: Users can set schedules or timers for devices to turn on and off automatically.
-
Adjustable settings: Some models allow you to set specific thresholds for overvoltage, under voltage, and overcurrent.
-

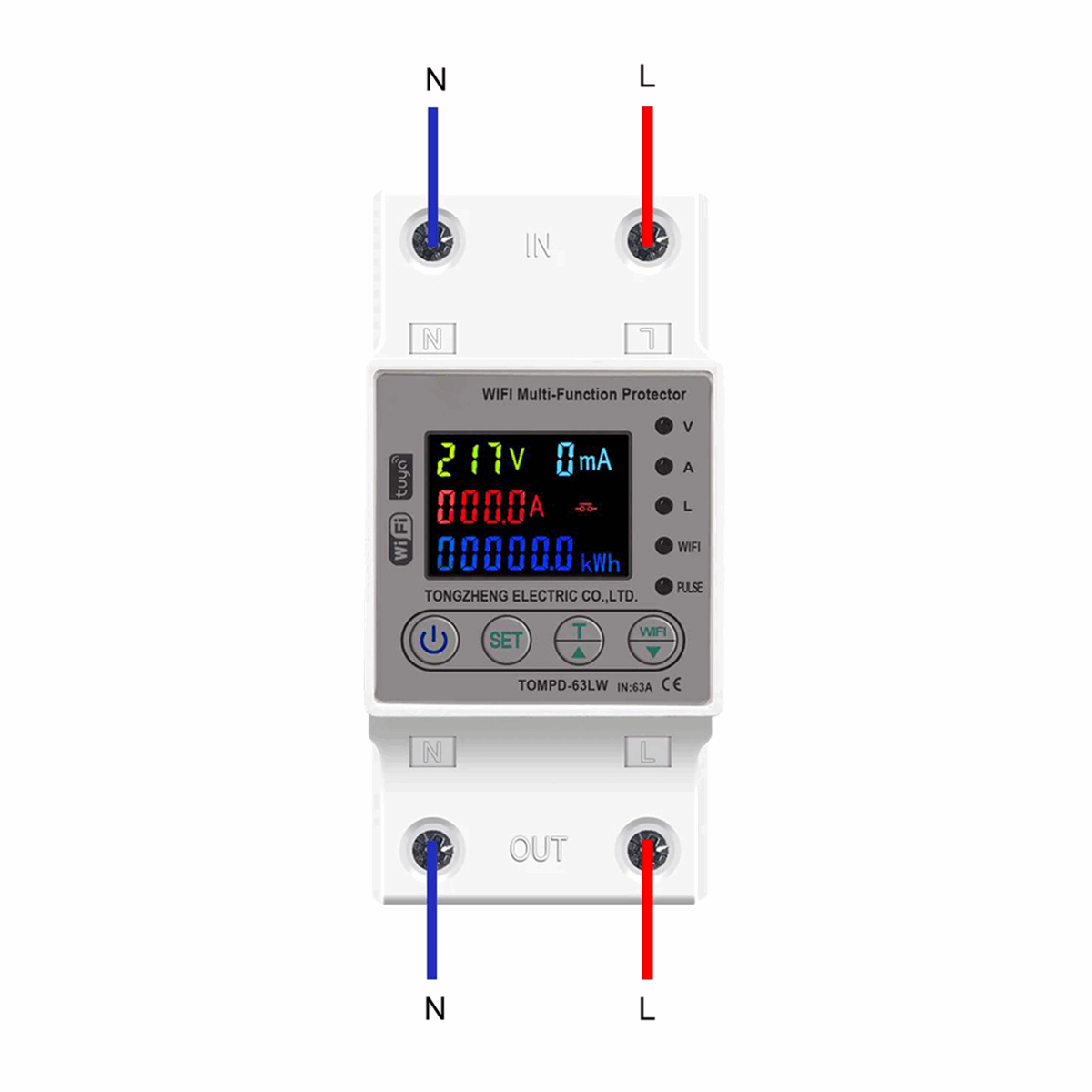

DIN Rail Mounting: This design makes it easy to install in a standard electrical distribution board.
Technical Specifications:
| Specification | Details |
|---|---|
| Rated Voltage | 230V |
| Frequency | 50/60Hz |
| Current Capacity | Adjustable 1A – 63A |
| Over Voltage Protection | 225V–295V (Default: 265V) |
| Under Voltage Protection | 140V–210V (Default: 170V) |
| Over Current Protection | 1A–63A (Default: 40A) |
| Reconnect Delay Time | 1–500s (Default: 30s) |
| Action Time | 1–30s (Default: 1s) |
| Calibration Range | ±9.9% |
| Wi-Fi | 2.4GHz only |
| Backlight | White LED |
| Installation | DIN Rail Mount |
| Material | Durable ABS Plastic |
| Mount Type | Fits Standard Electrical Panels |
Working Process Smart Power Breaker With Monitor – 63A
A 63A Smart Power Breaker with Monitor is an advanced circuit protection device that combines the safety features of a traditional circuit breaker with the functionality of a real-time energy meter and remote control capabilities via Wi-Fi.
Working Process
The Smart Power Breaker works using both traditional electromagnetic principles for instant fault protection and an electronic module for smart features and monitoring.
Manual and Basic Protection: The breaker can be turned on or off manually. Like a standard miniature circuit breaker (MCB), it has an internal thermal magnetic trip mechanism. In the event of a sustained overload (thermal) or short circuit (magnetic), the internal mechanism automatically trips, breaking the circuit and ensuring safety, even without an internet connection.
Energy Monitoring: Built-in sensors continuously measure electrical parameters in real time, including:
-
Voltage (V)
-
Current (A)
-
Instantaneous power (W)
-
Total energy consumption (kWh)

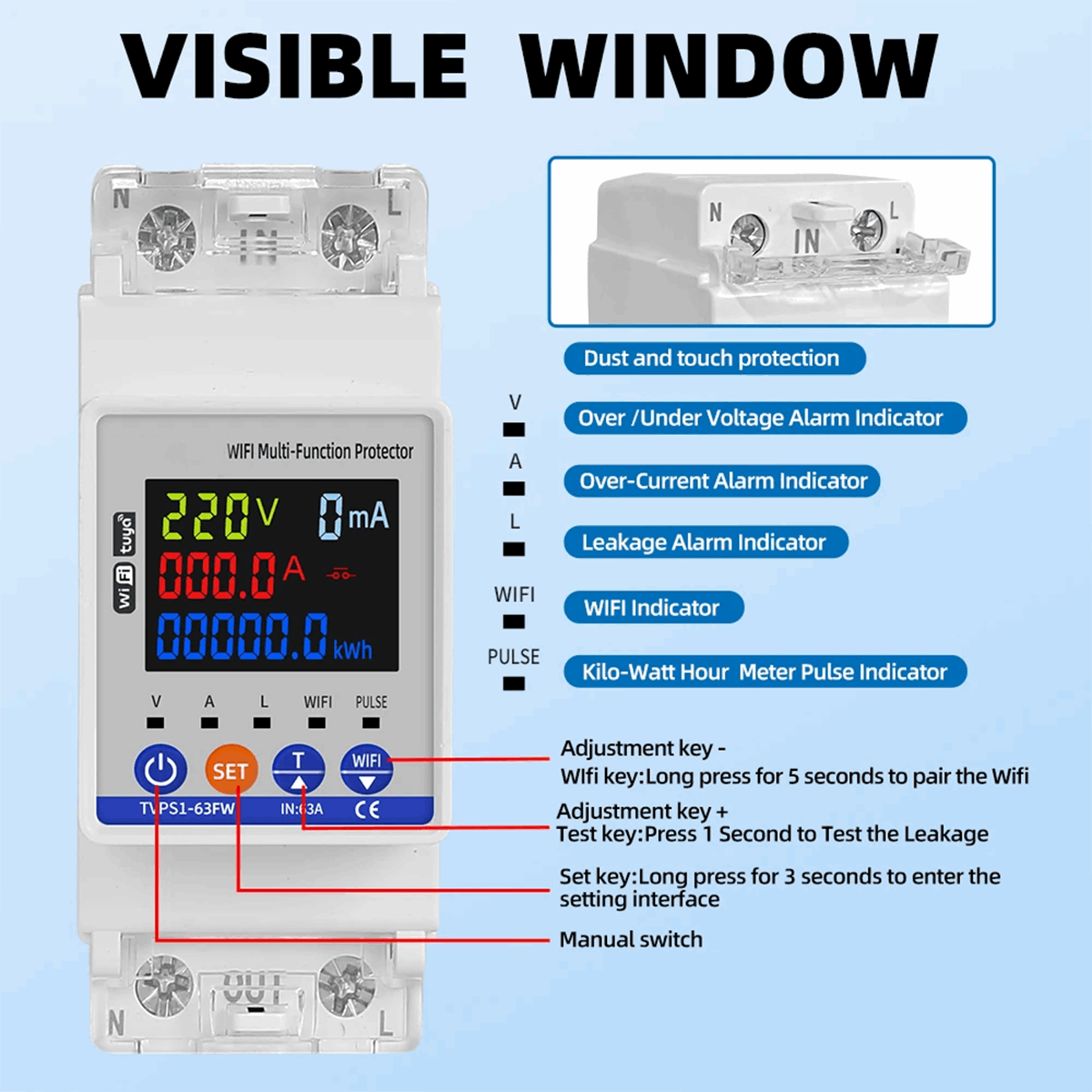

A digital display on the unit displays these values, and an internal microcontroller processes this data for logging and transmission.
Smart connectivity and remote control: The electronic module includes a Wi-Fi chip (typically 2.4 GHz) that connects to your home network.
-
The data collected by the sensors is sent to a cloud platform (via apps like Tuya or Smart Life) for storage and analysis.
-
You can access this data from anywhere and remotely control the breaker (turn it on/off) using the mobile app.
-
The app allows you to set schedules, timers, and specific automation rules.
Advanced Protection and Automation:
Through the app, you can set custom thresholds for protection:
Overvoltage and under voltage protection: The breaker automatically trips if the voltage goes outside a predefined safe range.
Overcurrent protection: The current limit can be adjusted (for example, from 1A to 63A). The breaker trips if the real-time current exceeds this value.
Automatic reconnect: Some models can be configured to automatically restore power after a set delay.
Smart Power Breaker vs Regular Breaker:
| Feature | Smart Breaker | Regular Breaker |
|---|---|---|
| Real-Time Monitoring | ✅ Voltage, Current, kWh | ❌ Not Available |
| Remote ON/OFF Control | ✅ Via App or Voice | ❌ Manual Only |
| Overload & Voltage Protection | ✅ Adjustable via App | ✅ Fixed |
| Energy Limit Auto Cut-Off | ✅ Programmable | ❌ Not Available |
| Voice Assistant Support | ✅ Alexa / Google | ❌ No Integration |
