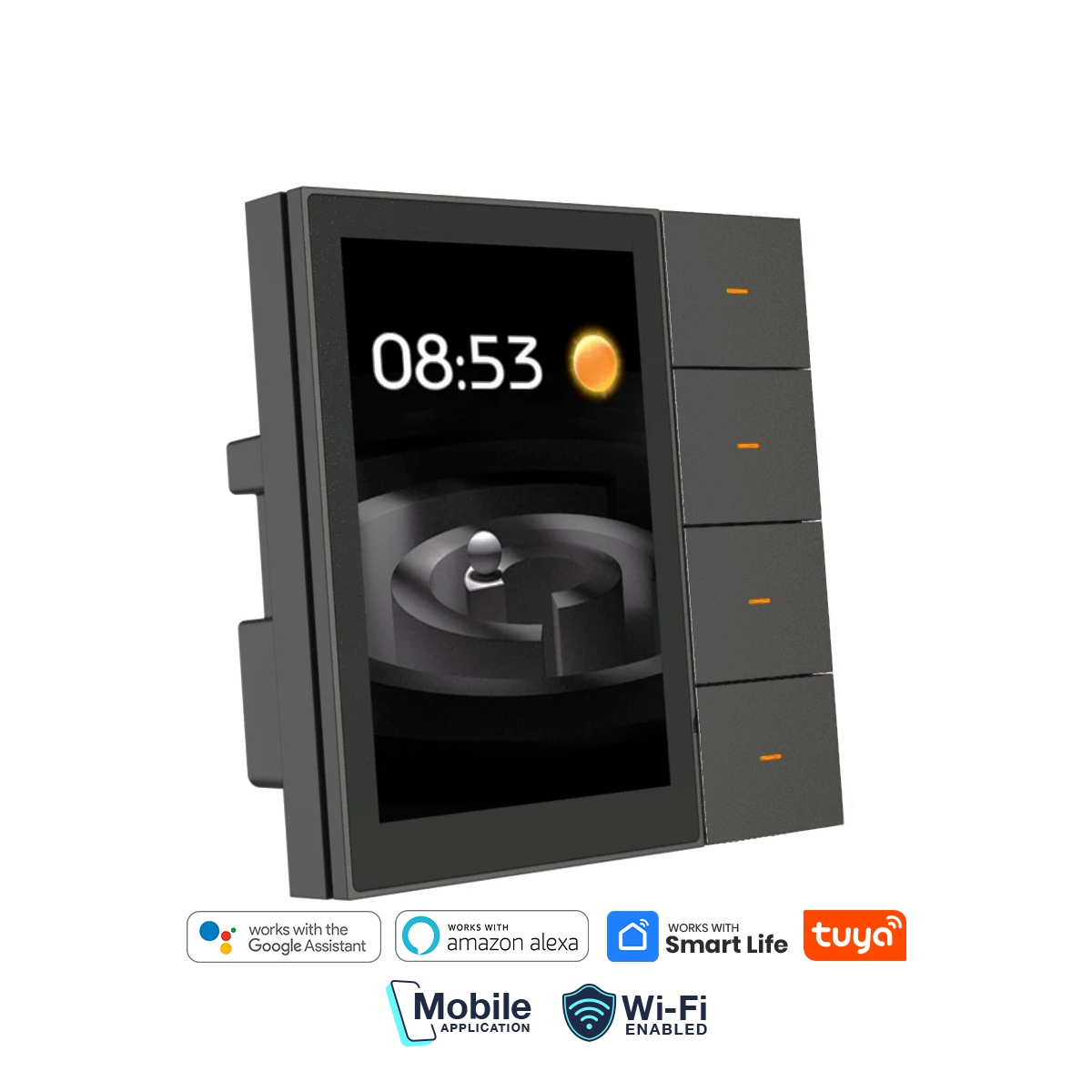

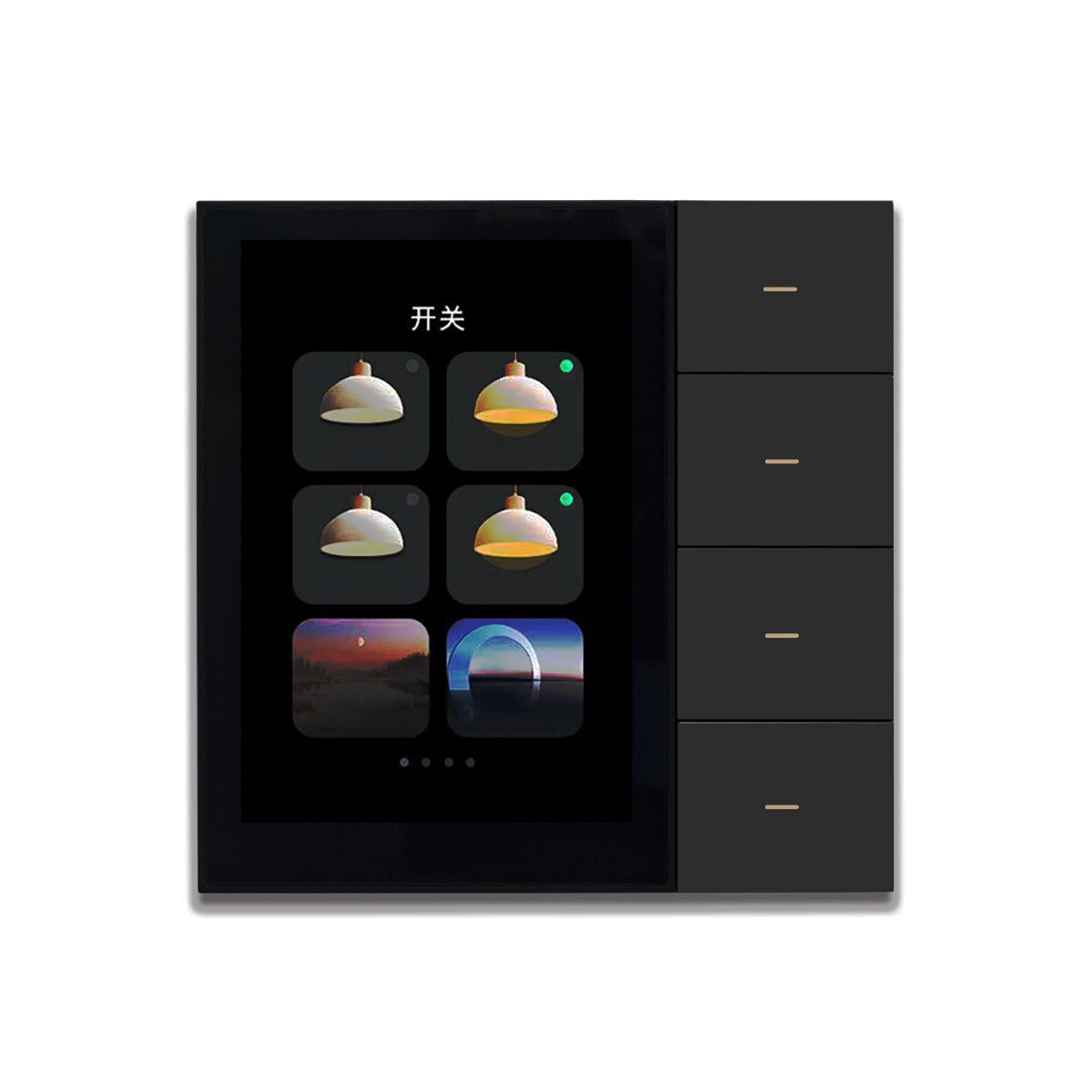

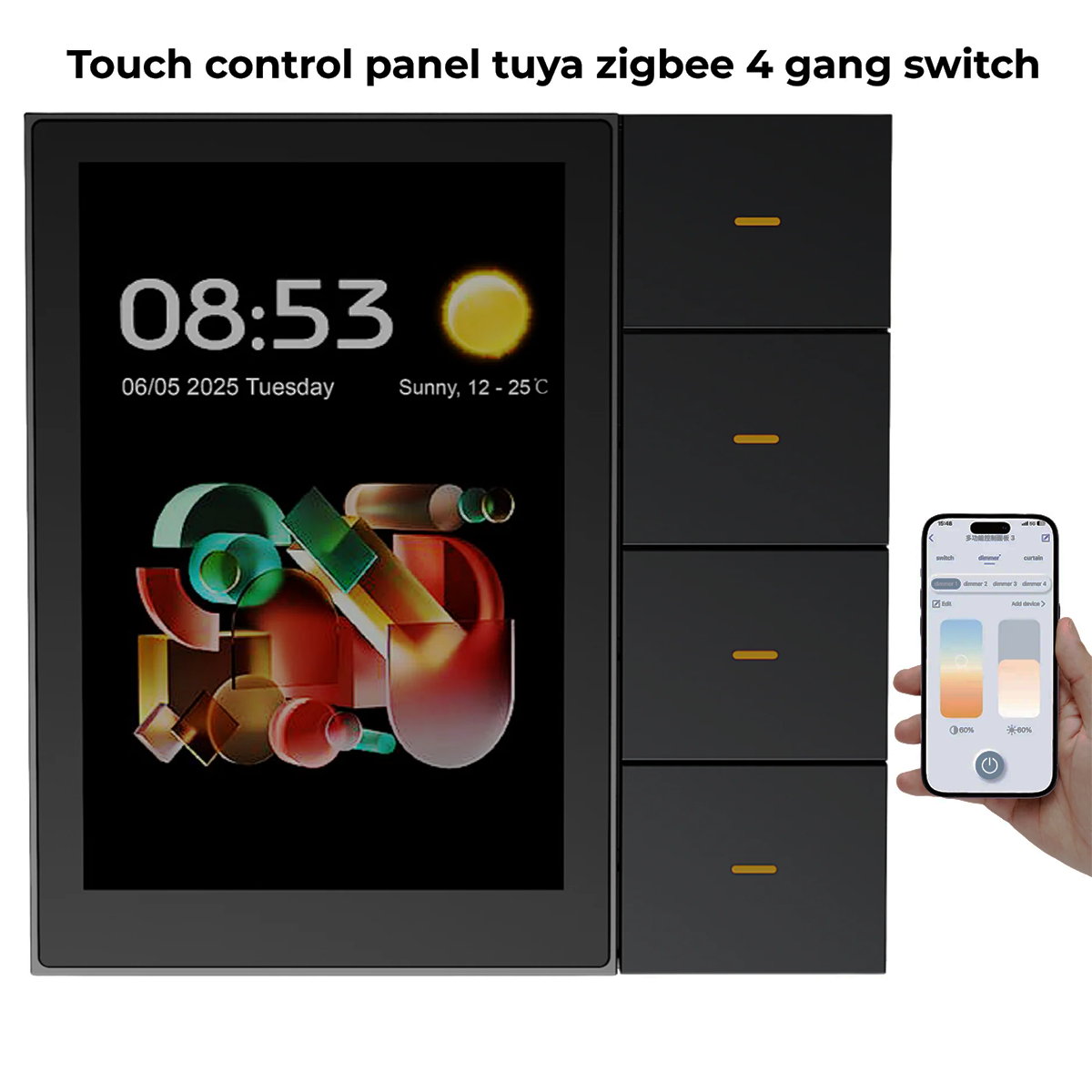

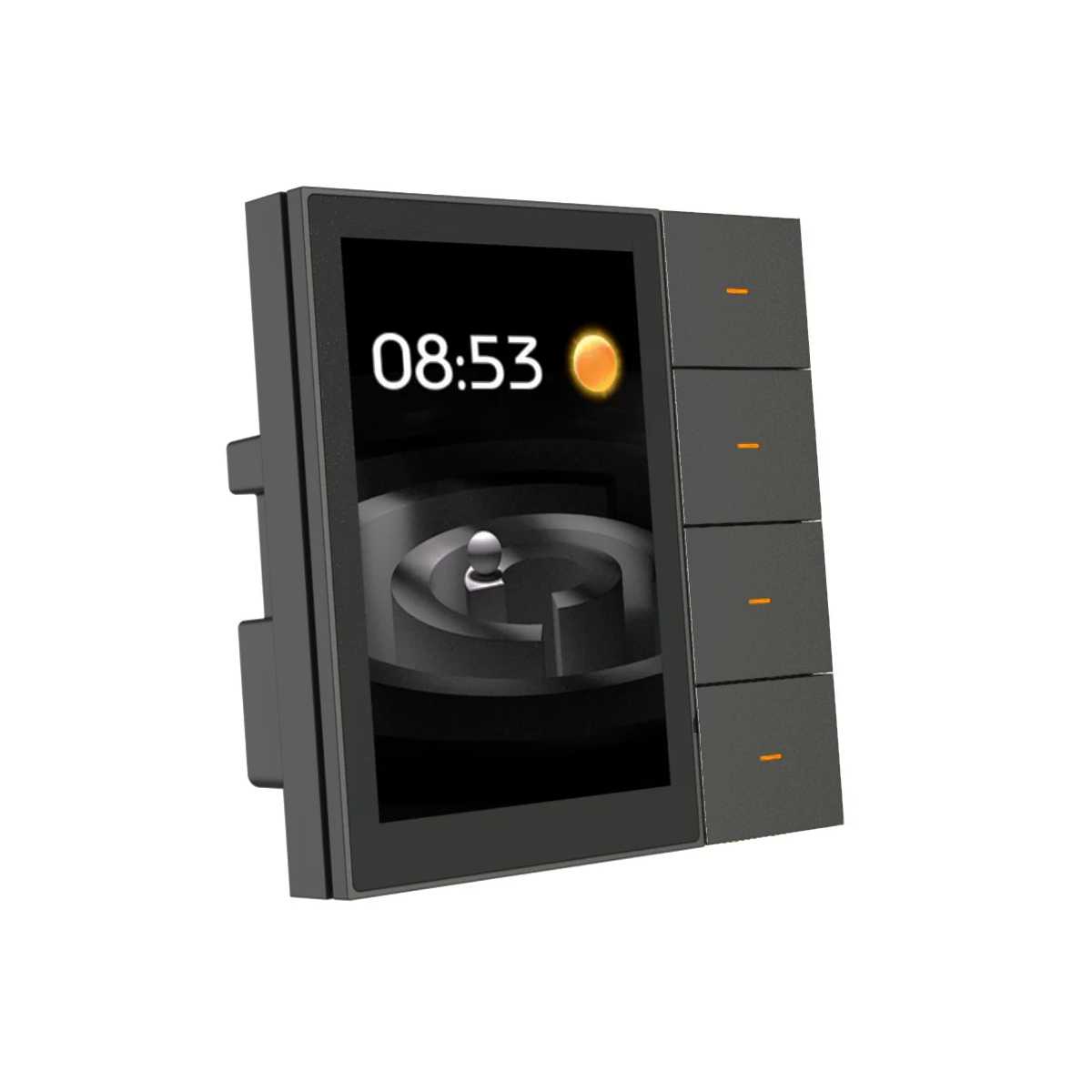

Smart Touch Panel Control With 4 Gang Switch
A smart touch panel control with 4-gang switch is a modern in-wall control panel. It replaces traditional switches to allow you to control up to four different lights or appliances. It features a sleek glass panel with touch-sensitive buttons. You can control it via a smartphone app, voice assistants like Amazon Alexa or Google Home, and directly from the panel.

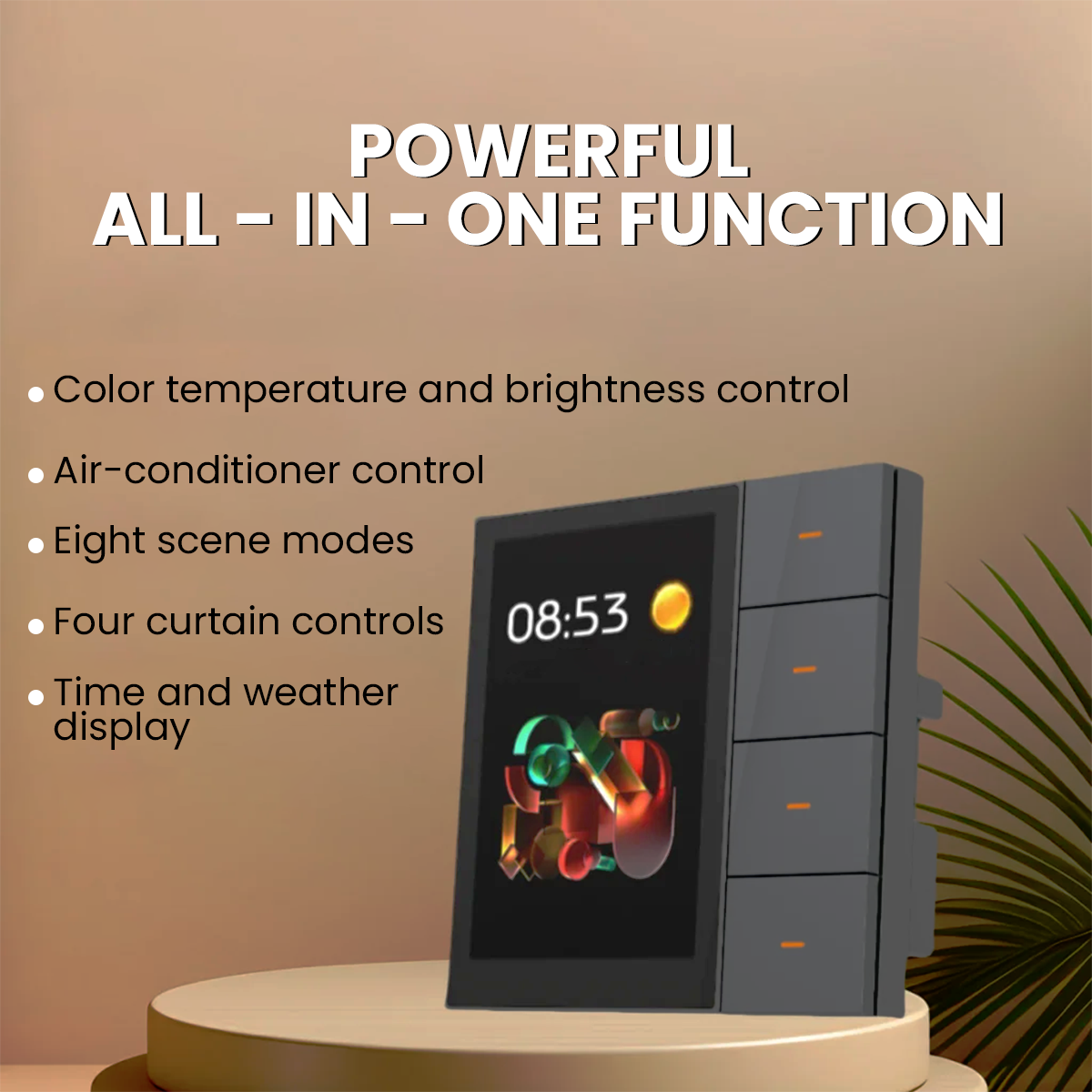

Key Features
-
Touch Control: The panel uses capacitive touch-sensitive buttons for a modern look and feel.
-
App and Voice Control: You can manage devices remotely via a smartphone app and use voice commands with assistants like Alexa and Google Assistant.
-
Smart Home Integration: It connects to your home’s Wi-Fi network to enable smart home automation.
-
Multi-Device Control: The “4-gang” design means it can control four separate electrical circuits or appliances.
-
Advanced Features: Many models include features like scheduling, scene settings (like “Movie Mode”), and countdown timers.
-
Visual Indicators: LED indicators on the panel provide a clear visual status of each switch, making it easy to see which devices are on or off.
-
Connectivity: Some panels use both Wi-Fi and Zigbee for dual connectivity and can connect to a Zigbee hub for more advanced automation options.
Technical Specifications
| Specification | Details |
|---|---|
| Type | 4-Gang Touch Smart Control Panel |
| Connectivity | Zigbee |
| App Support | Tuya Smart / Smart Life |
| Voice Assistants | Amazon Alexa, Google Assistant |
| Voltage | 100–240V AC |
| Material | Tempered glass + PC back shell |
| Mounting | Standard wall installation |

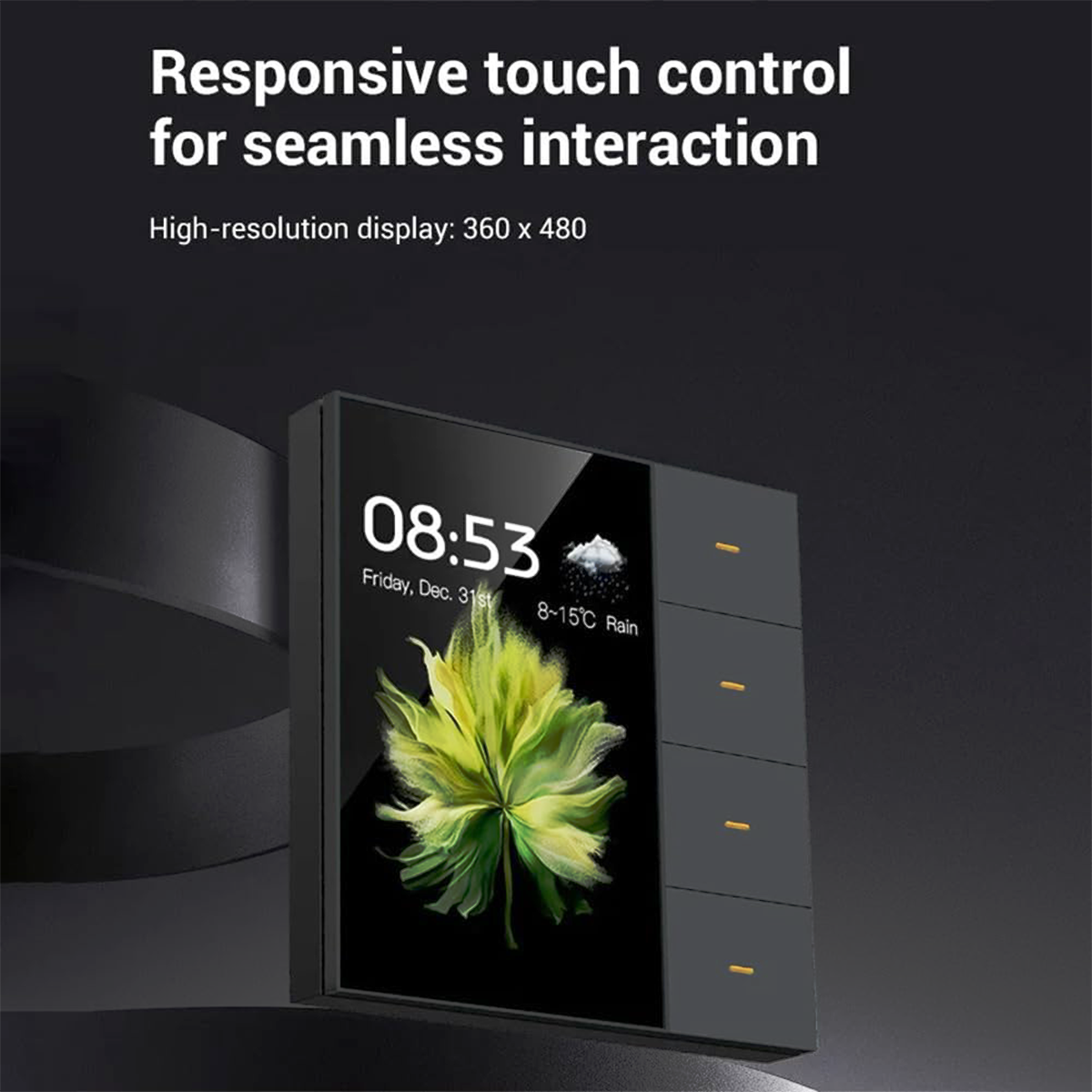

| Display | 360×480 high-resolution touch panel |
Working Process Of Smart Touch Panel Control With 4 Gang Switch
A smart touch panel control with a 4-gang switch allows you to manage four separate electrical circuits using a sleek glass interface, smartphone app, or voice commands. These devices replace traditional mechanical switches and offer advanced control features.
Working Process:
The operation of a 4-gang smart touch switch can be divided into manual, remote, and automatic processes.
Capacitive Touch: The “touch” aspect refers to a capacitive touch sensor built into the glass panel. Your finger has electrical properties (body capacitance). Touching the panel changes the local electric field. Which the switch’s internal sensor detects, registering it as a command to the microcontroller.
Microcontroller: A central microcontroller receives touch input (or wireless signal) and processes the command for the specific “gang” or circuit.
Internal Relays: The switch has four independent internal relays, one for each group. The microcontroller tells the specified relay to open or close the electrical circuit, thus turning the connected light or appliance on or off.

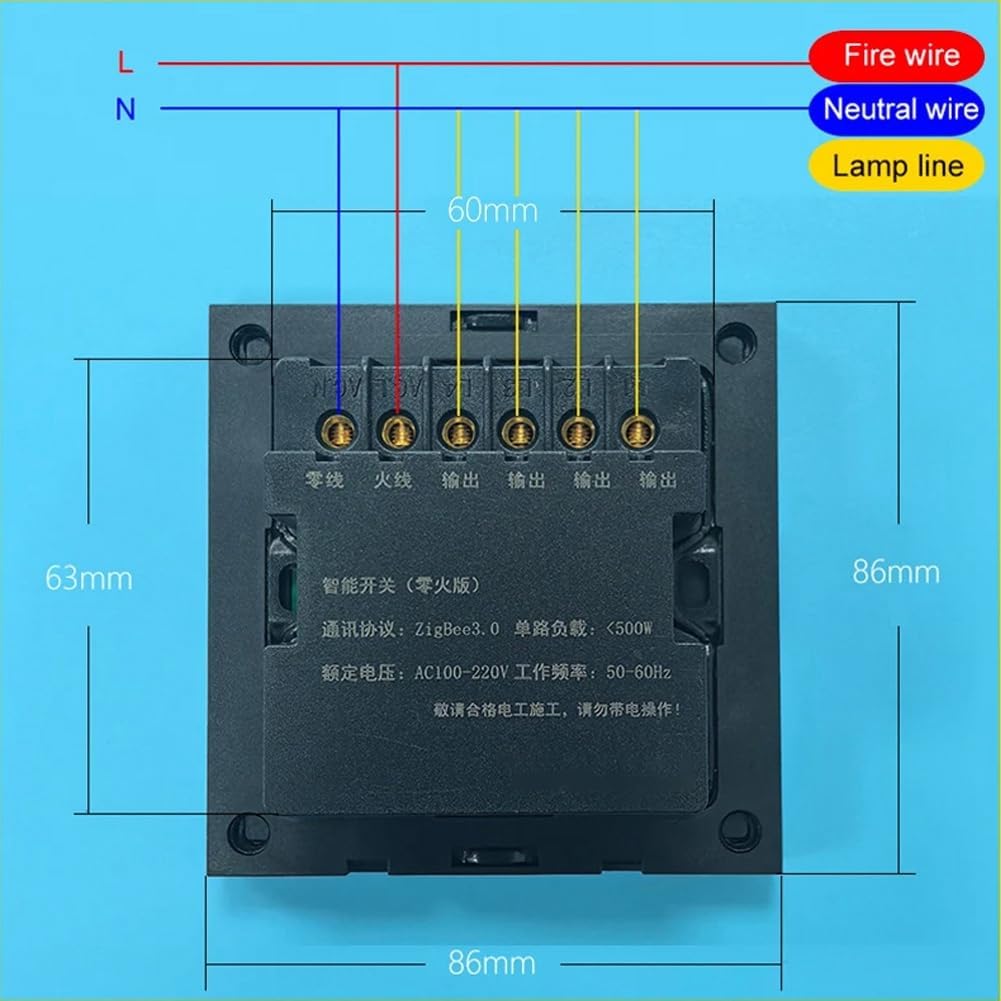

Constant Power: The device requires a constant power supply (usually a neutral wire is required in the wall box) to power its internal electronics, Wi-Fi module, and LED indicators, even when the lights are off.
