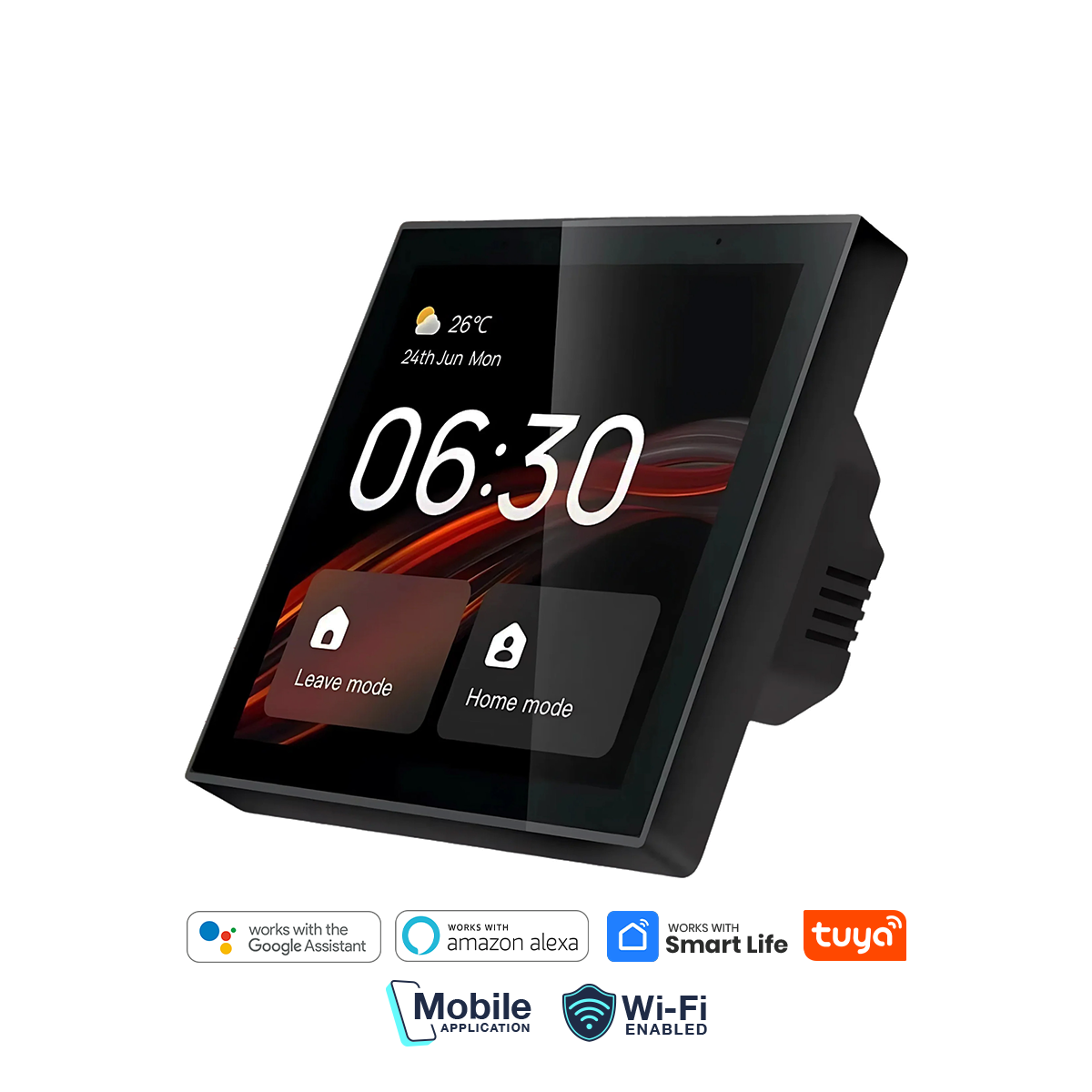

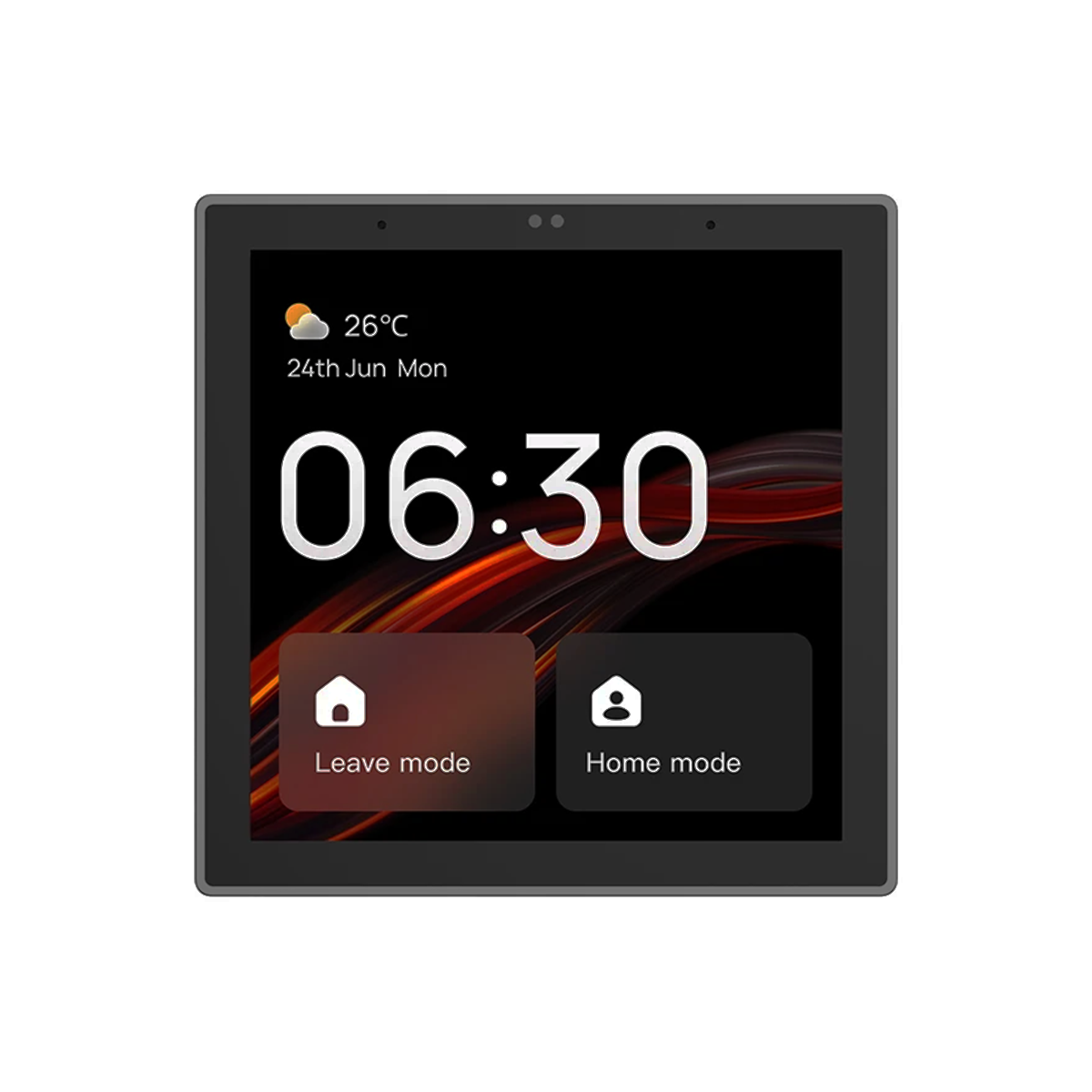

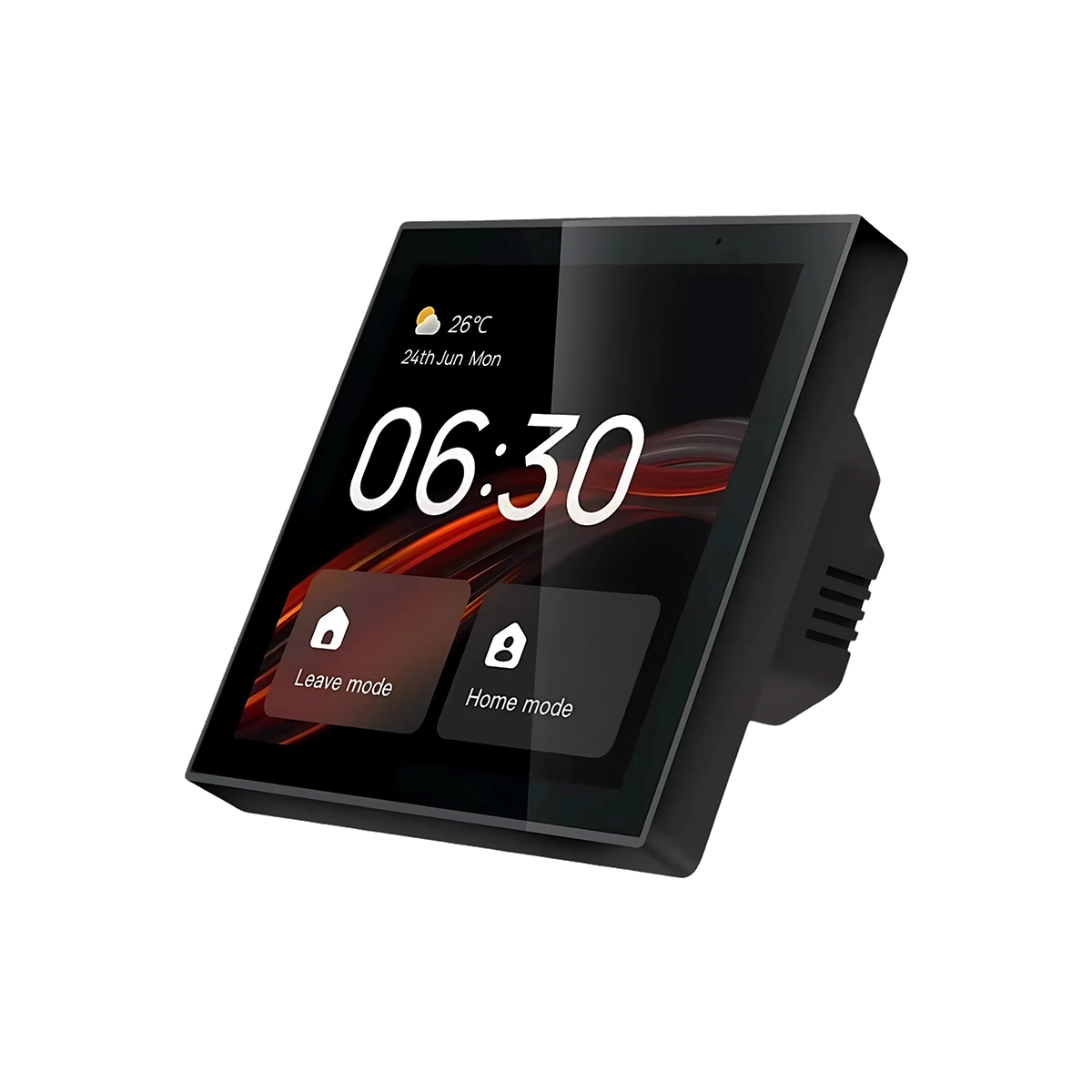

Smart Touch Panel Control With Alexa

Smart Touch Panel Control with Alexa is a system that allows you to manage your smart home devices through a combination of a physical touchscreen and voice commands via Amazon’s Alexa. This can be a central wall-mounted panel or switch. That connects and controls various smart devices such as lights, blinds, and security systems. Users can operate devices by physically tapping the screen, or by giving commands to Alexa, offering both manual and hands-free control.

Key Features and Benefits:

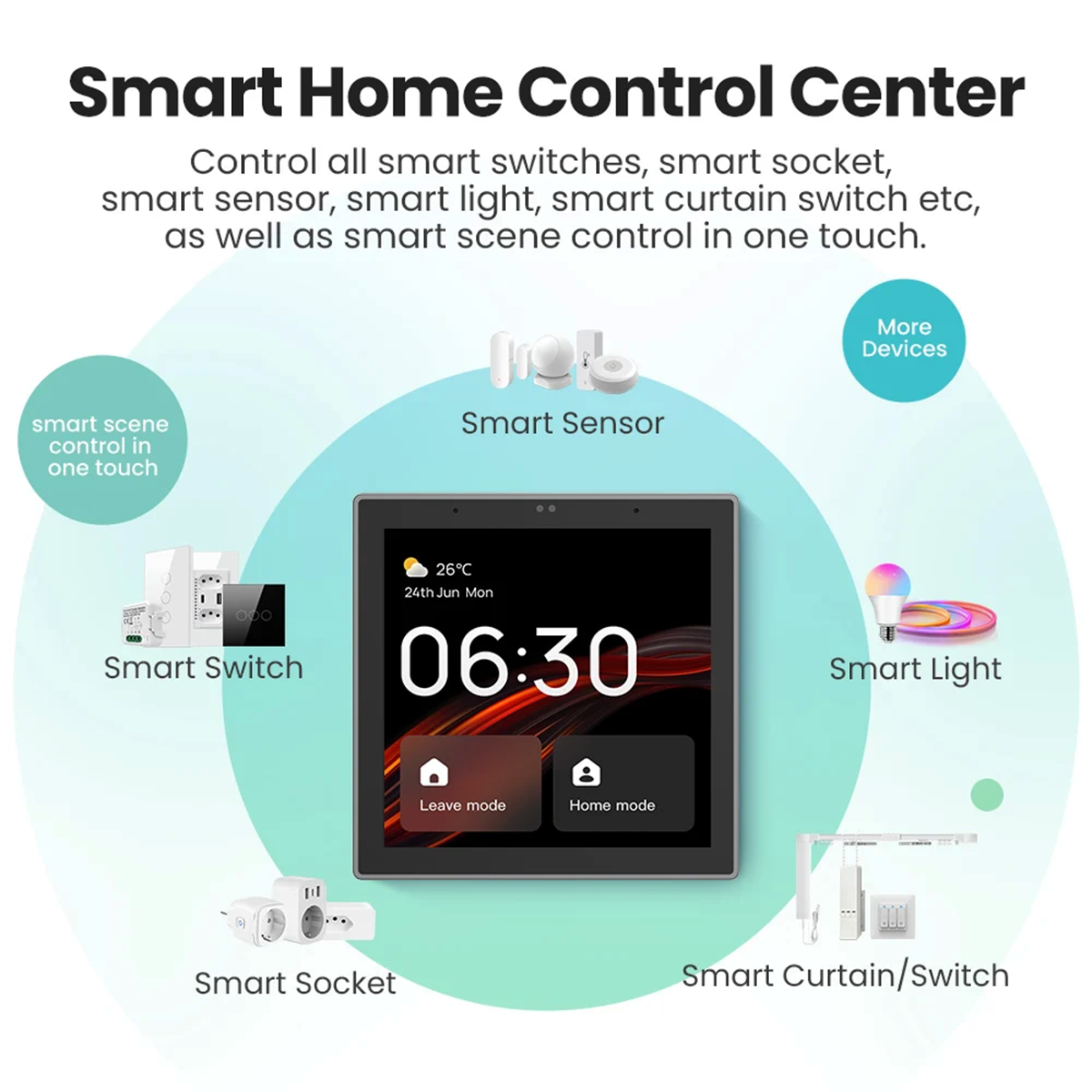

  • Centralized Control: Instead of using multiple apps, you can manage all your connected devices from one touchscreen interface.

  • Voice Commands: Alexa allows for hands-free control, so you can manage your smart home without having to get up or use your phone.

  • Automation: You can create custom “scenes” to automate actions, such as a “Good Night” scene that turns off the lights, locks the doors, and adjusts the thermostat with a single tap or command.

  • Connectivity: Many systems use both Wi-Fi and Zigbee to connect a wide range of devices, including those that use different communication protocols.

  • Sleek design: These panels and switches often have a modern, elegant design with a glass touch surface that can enhance the look of a room.

  • Remote access: You can control devices from anywhere in the world using a smartphone app connected to the system.

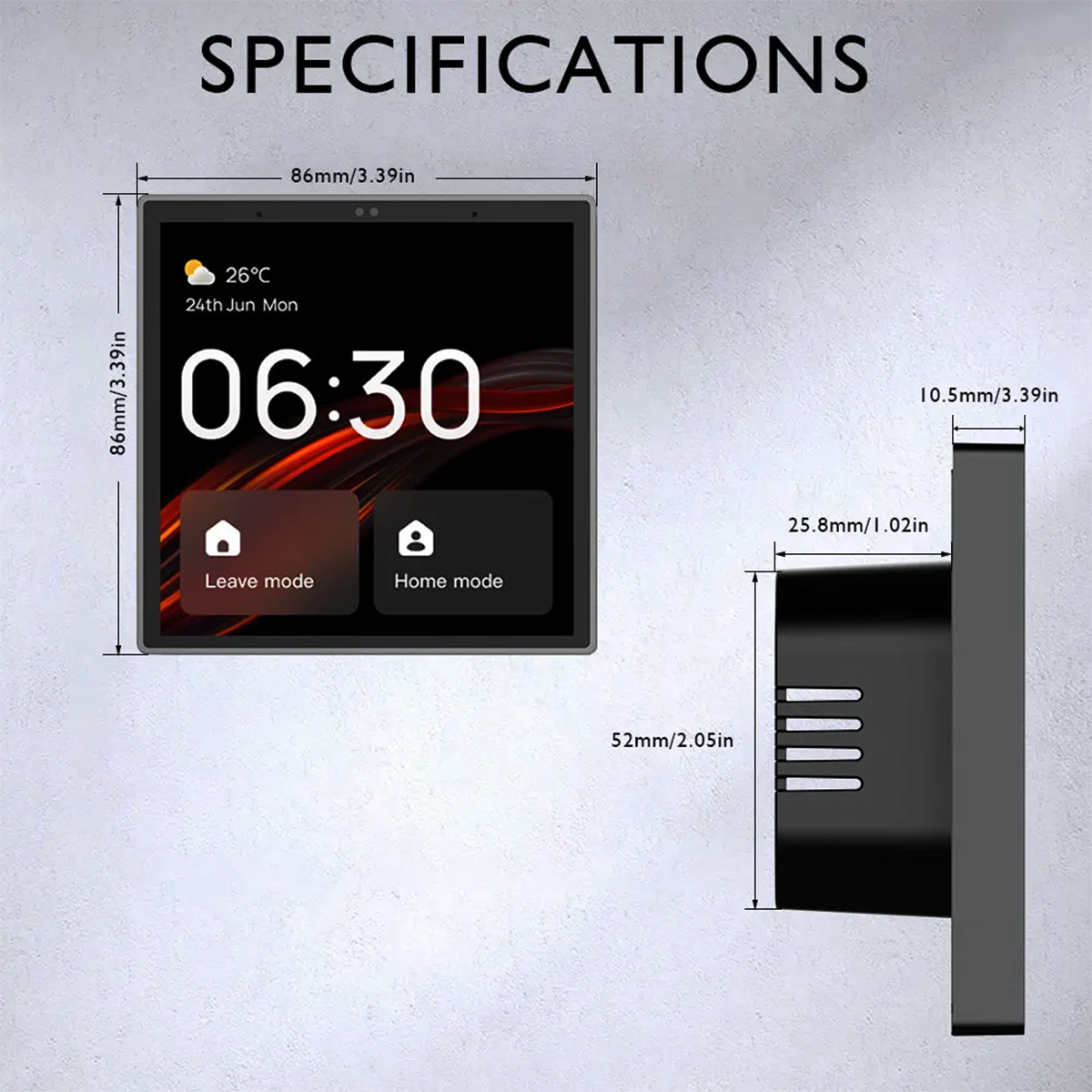

Technical Specifications

Display 4” HD Touch Screen (480 × 480)
Processor Quad-Core Cortex-A35
Connectivity ZigBee 3.0
Voice Assistant Alexa Built-in
Supported Devices Lights, Curtains, ACs, Sensors, Appliances
Power Supply AC 110V–240V

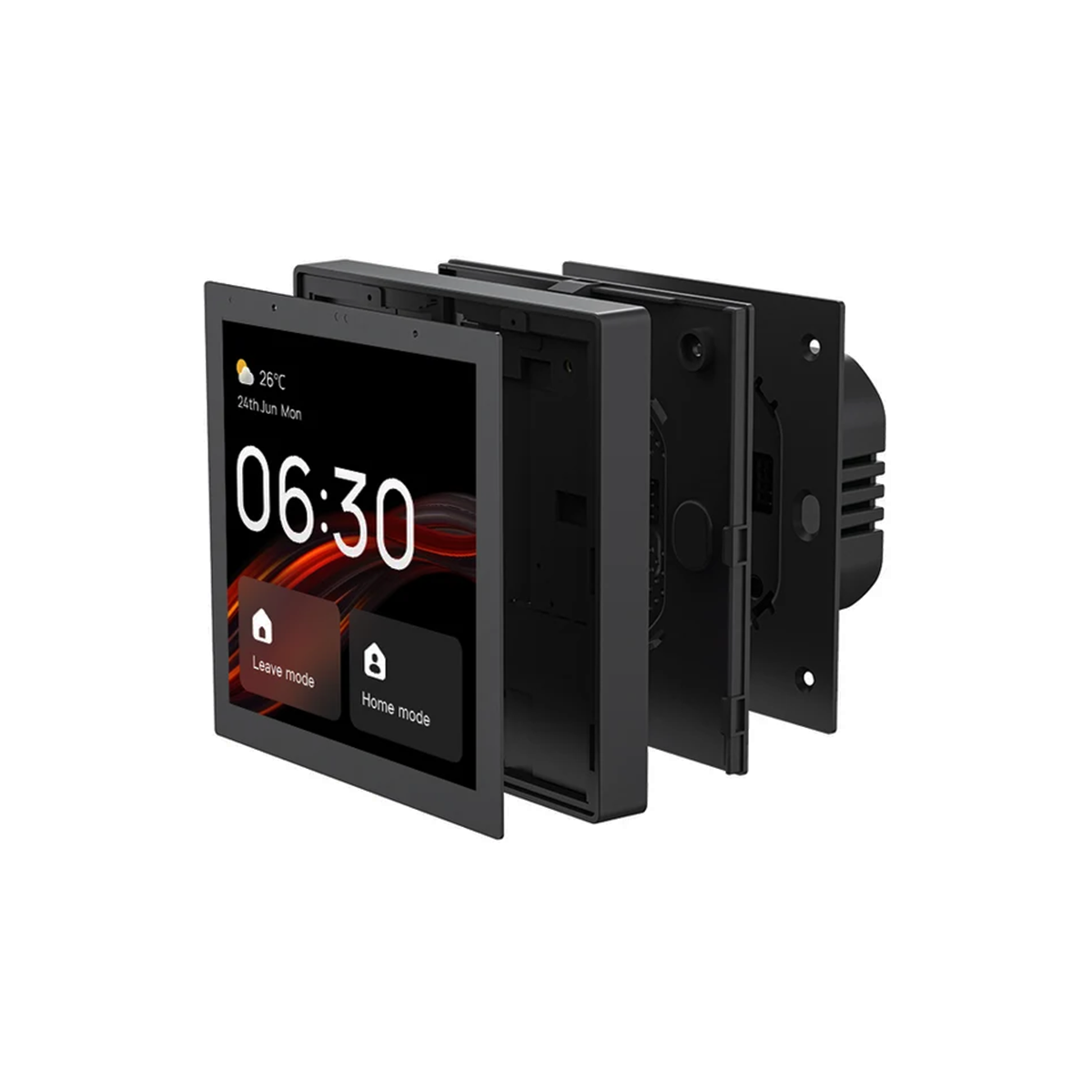

Installation Wall-Mount (2-wire setup)
Material ABS + Tempered Glass
Compatibility Tuya Smart / Smart Life App
ZigBee Device Support Up to 100+ sub-devices
System Linux-based OS with Dual Mics & Noise Reduction

Working Process Of Smart Touch Panel Control With Alexa

A smart touch panel switch works with Amazon Alexa through a secure, cloud-based integration that enables seamless voice control of your home’s lighting and connected devices.

How it works with Alexa.

Local control (touch panel): You can manually control the switch via its capacitive touch panel. Touching the glass panel on the corresponding “gang” or circuit sends a local signal to the switch’s internal microcontroller and relays power to turn it on or off.

Initial setup and app control: The smart switch connects to your home’s 2.4GHz Wi-Fi network. Using a manufacturer-specific app (e.g., Smart Life or Tuya), you set up and configure the switch, including naming it (for example, “Living Room Light”). This app allows for remote control from anywhere with an internet connection.

Alexa Skill Integration: To enable Alexa functionality, you must link your Switch’s manufacturer app account to your Amazon Alexa account.

  • In the Alexa app, you go to the “Skills & Games” section.

  • You search for and enable a skill specific to your Switch brand (e.g., the “Smart Life” skill).

  • You then link your manufacturer app credentials (username/password) to the Alexa app to sync your devices.

Device Discovery: After linking accounts, you can find your Alexa-enabled device (such as an Echo speaker) by saying “Alexa, discover devices” or tapping “Discover devices” in the Alexa app. Alexa searches for Switches associated with your manufacturer app account.

Voice Command Process: When you issue a voice command, the following sequence occurs:

  • Your voice is picked up by the microphone in the Alexa device and sent to Amazon’s cloud servers.

  • Amazon’s service processes the command (“Alexa, turn on the living room lights”) and sends instructions to the manufacturer’s cloud server via the enabled skill.

  • The manufacturer’s server then sends the command to your home’s Wi-Fi router.

  • The smart switch receives the command and its internal relay physically switches the flow of electricity, turning the light on or off.
