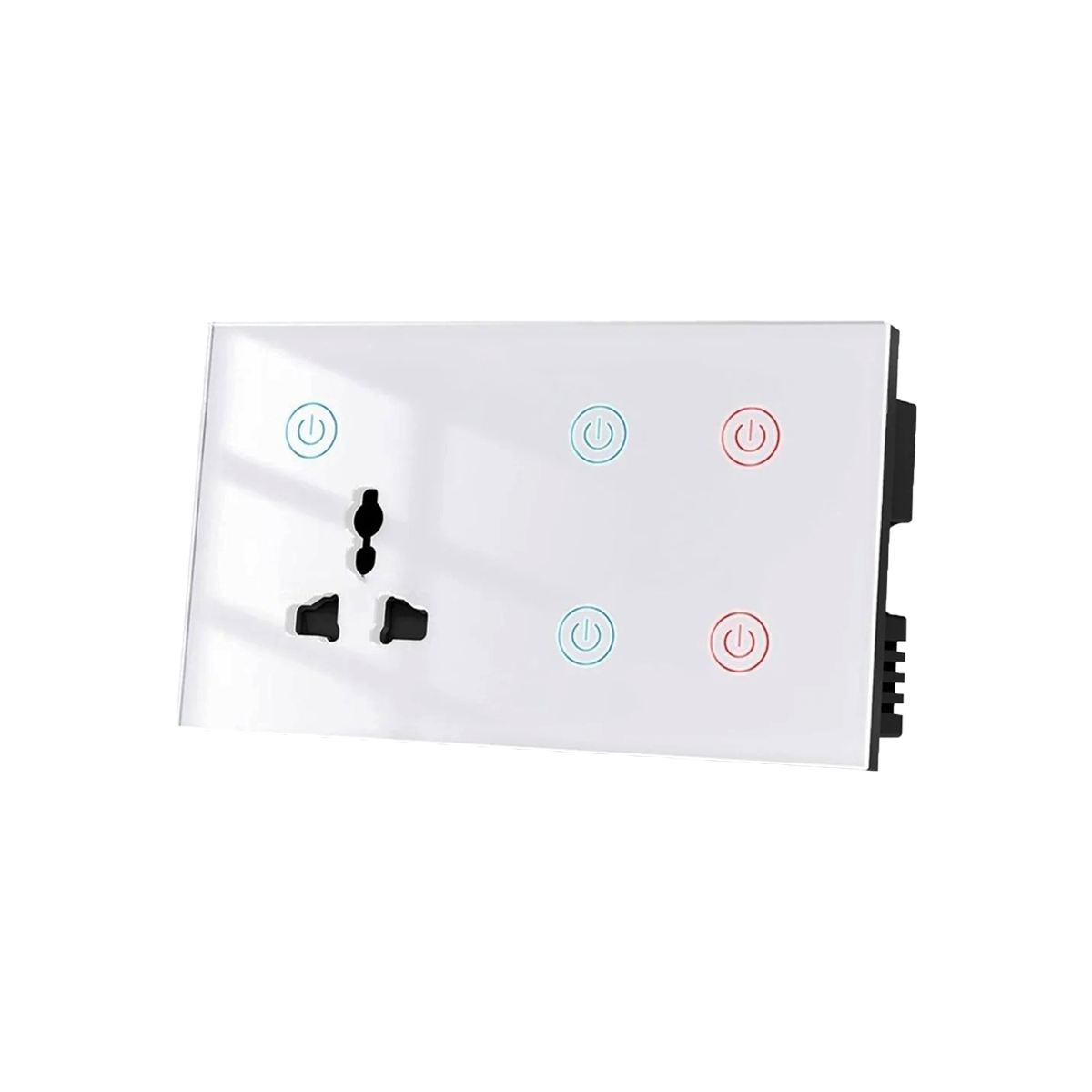

Smart WiFi 4 gang + Socket Wall Switch
Compatibility
Couldn't load pickup availability
Estimate delivery times: 3-5 days all across Pakistan
Free Shipping on all the orders above Rs. 3000
Smart WiFi 4 gang + Socket Wall Switch
A Smart WiFi 4 gang + Socket Wall Switch is a multi-functional, Wi-Fi-enabled wall plate that replaces a traditional switch. It outlet to allow remote control of up to four connected lights or appliances through smartphone app or voice assistant. In addition to the four touch-sensitive switch panels. It includes a universal power socket that can be controlled independently. This allows for smart features like scheduling, remote operation, and energy monitoring for multiple devices from a single unit.
Key features
-

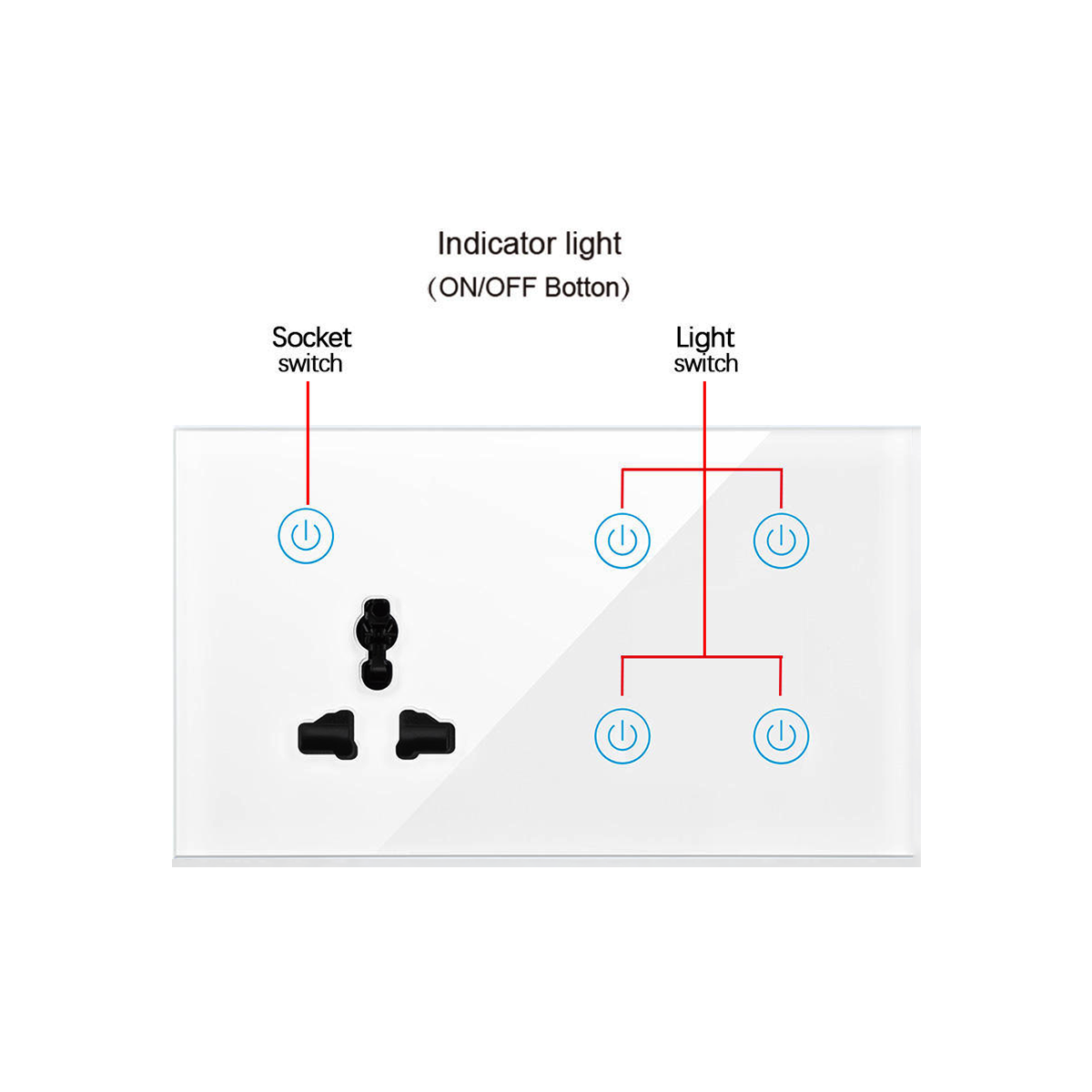

4-gang switch: Controls up to four separate lights or appliances through the individual touch-sensitive panels.
-
Universal socket: Includes a standard power outlet for controlling other appliances, which can also be managed via the app.
-

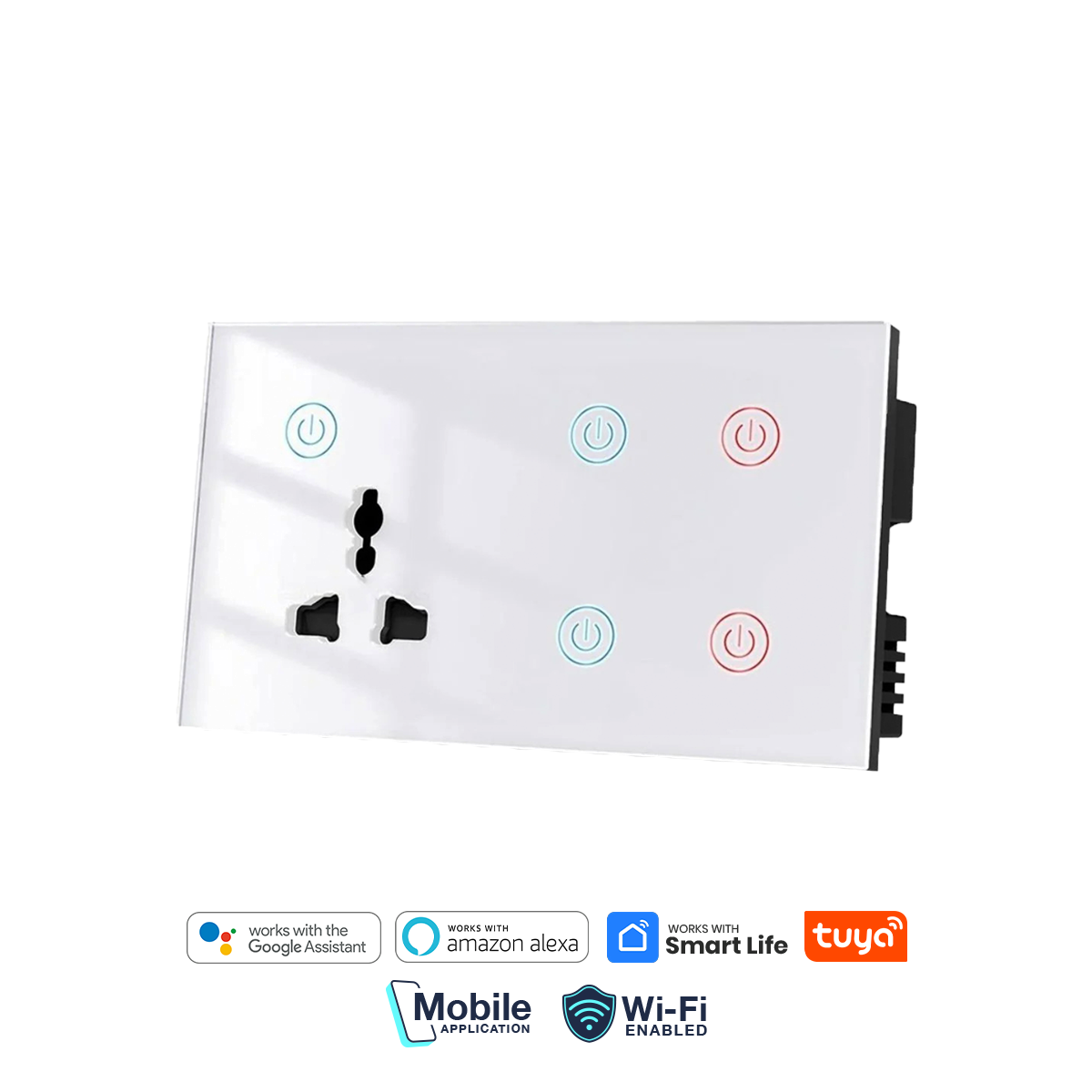

App and voice control: Can be controlled from anywhere using a smartphone app Tuya and Smart Life and is compatible with voice assistants like Amazon Alexa and Google Assistant.
-
Smart scheduling: Allows you to set timers and schedules for devices to turn on or off automatically.
-

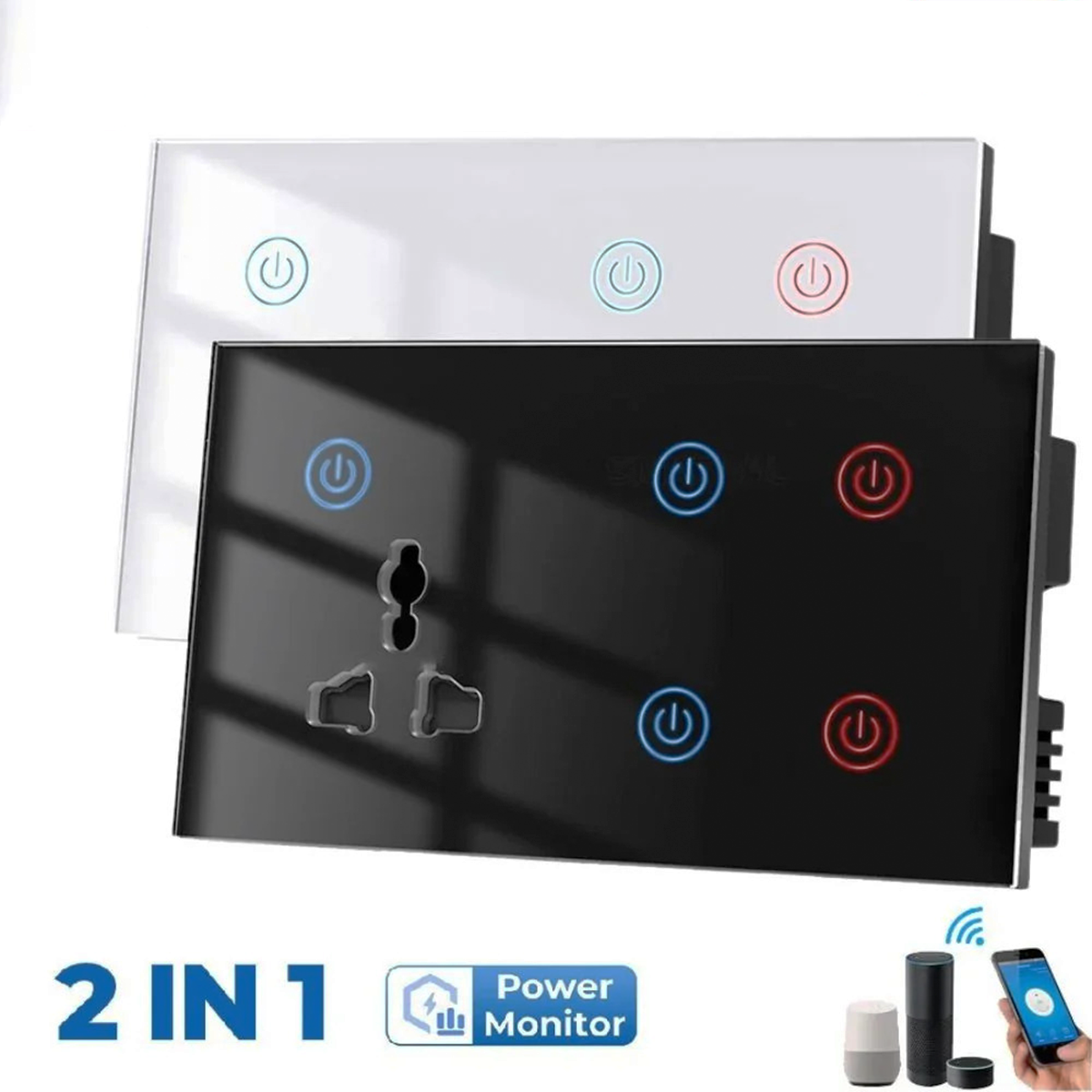

Energy monitoring: Many models offer real-time power monitoring to help you track and save energy.
-
Manual and touch control: Can still be controlled manually with the touch panels, even without Wi-Fi.
-
Safety features: Often includes a tempered glass panel for durability and an indicator light to show the on/off status. Some also feature a child lock.

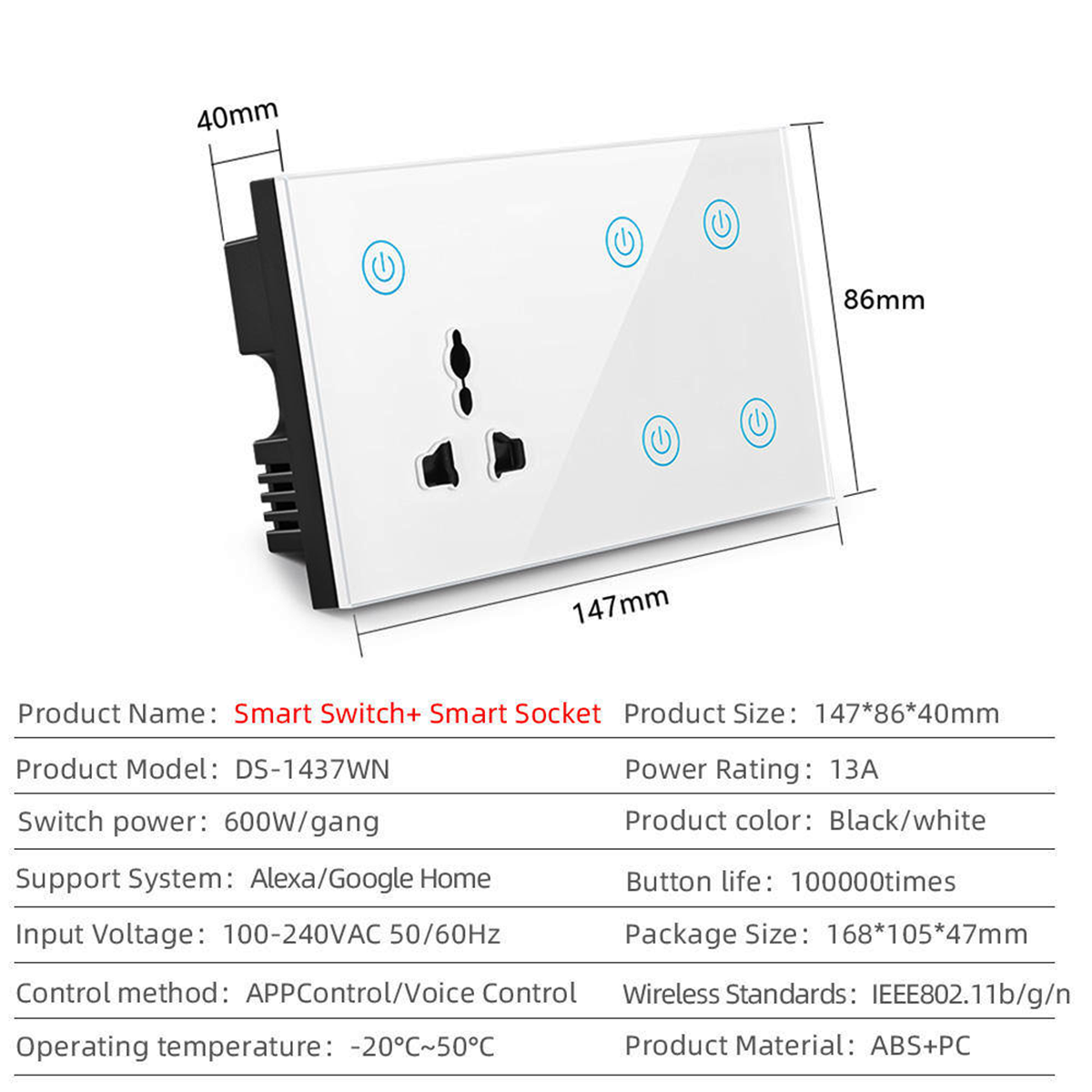

Technical Specifications:
| Specification | Detail |
|---|---|
| Product Size | 147 × 86 × 40 mm |
| Wi-Fi Standard | 2.4GHz 802.11 b/g/n |
| Material | PC + ABS + Tempered Glass |
| Power | 600W per gang |
| Input Voltage | AC 100–240V, 50/60Hz |
| Socket Max Current | 13A |
| Indicator Light | Blue (On), Red (Off) |
| Working Temp | -20°C ~ 50°C |
Smart WiFi 4 gang + Socket Wall Switch
A Smart WiFi 4 Gang + Socket Wall Switch is an integrated unit that combines four independent smart light switches into a single wall plate with a full-function smart electrical socket. It offers comprehensive control over both lighting and appliances.
Step-by-step working process
Input reception: A command is initiated by a specific light (gang 1-4) or connected socket:
-
Manual touch: The user touches the corresponding area on the glass panel.
-
Smartphone app: The user selects a specific output on a compatible app such as Tuya Smart or Smart Life.
-
Voice command: The user uses Amazon Alexa or Google Assistant to control the designated output (e.g., “Alexa, turn on the ceiling fan” and “Alexa, turn off the socket”).
Signal processing:
-
Manual touch signals go directly to the MCU.
-
Remote/voice commands travel through the cloud to the home router, then to the switch’s WiFi module, and finally to the MCU.
-
The MCU interprets the specific command and identifies which of the five relays is the target.
Circuit Activation: The MCU activates the required relay mechanism to physically open or close the electrical circuit for that specific load, without affecting others. The dedicated 13A relay handles the high power demand of the devices plugged into the socket.
Status Feedback: The new status (on/off) of the specific output is registered by the MCU and sent back to the smartphone app in real time.
Comparison Regular VS Smart Switches
| Feature | Smart 4-Gang + Universal Socket | Regular Wall Switch |
|---|---|---|
| Remote Control | ✅ Yes (via Tuya/Smart Life app) | ❌ No |
| Voice Control | ✅ Google & Alexa compatible | ❌ No |
| Touch Panel | ✅ Tempered glass, stylish & scratch-resistant | ❌ Basic plastic buttons |
| Energy Monitoring | ✅ Real-time power tracking | ❌ No |
| Universal Socket | ✅ Built-in (13A max) | ❌ No |
| Smart Scheduling | ✅ Yes | ❌ No |
| Internet Connectivity | ✅ Wi-Fi 2.4GHz | ❌ None |
