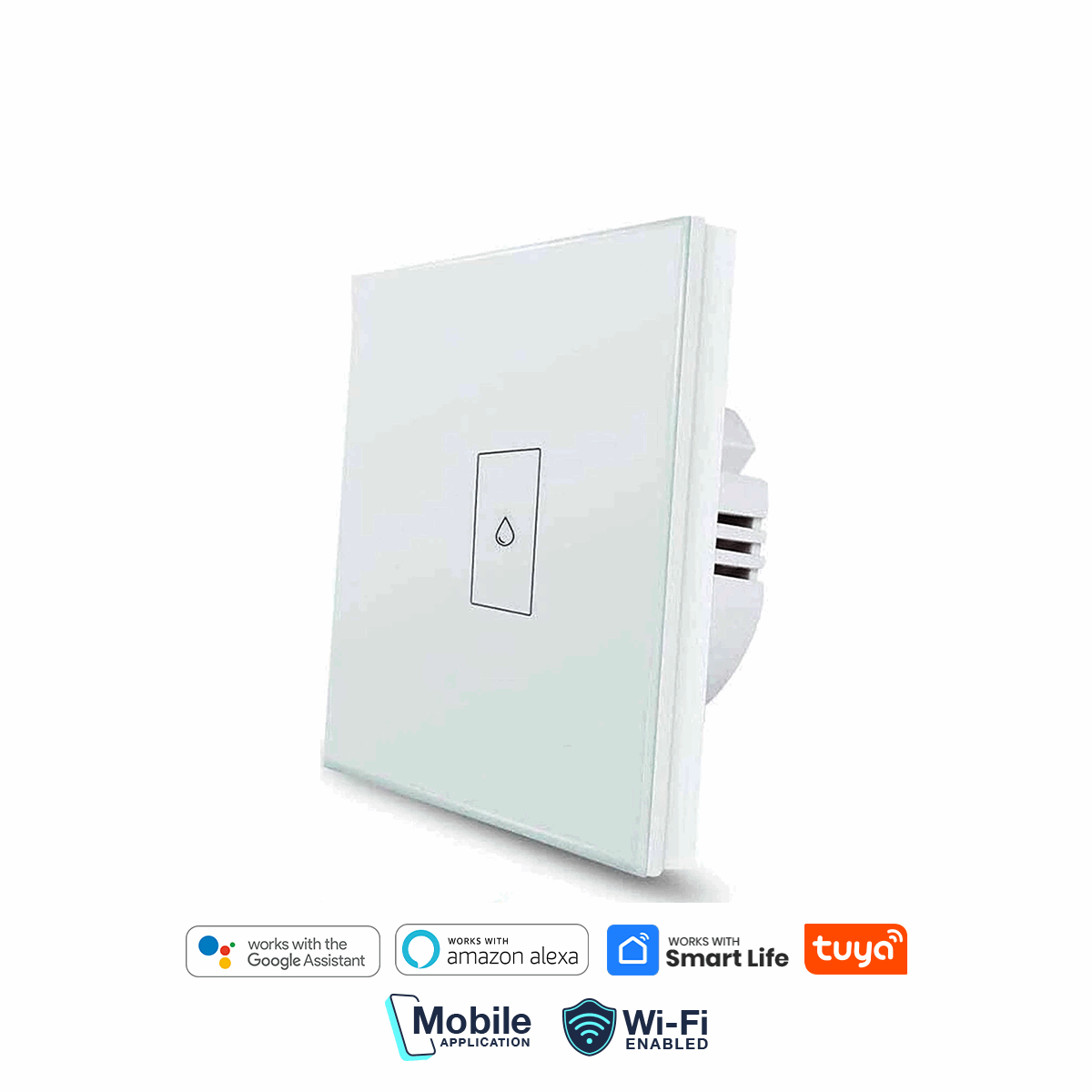

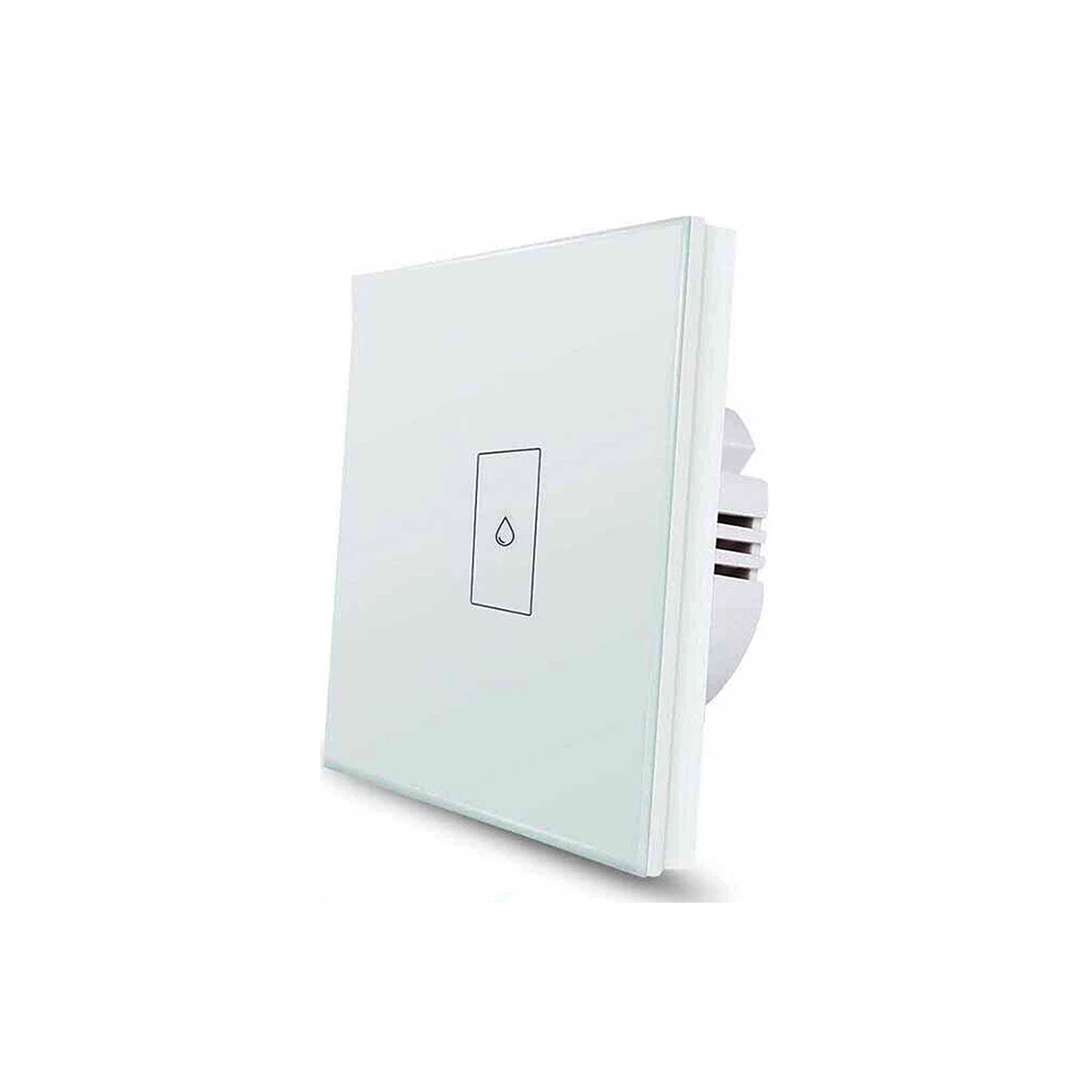

Smart WiFi Touch Switch 20A
A Smart WiFi Touch Switch 20A is a high-power electrical switch that can be controlled remotely via a smartphone app or voice commands like Alexa or Google Home. The "20A" rating means it can handle up to 20 amps of current. It is suitable for controlling heavy-load appliances such as air conditioners, boilers, and water heaters. These switches feature a touch-sensitive, tempered glass panel. Touch Switch offers features like energy monitoring, and requires a neutral wire for installation.
Key Features
-
High-power capacity: The 20A rating allows it to manage high-power devices like air conditioners, boilers, and water heaters safely.
-
Remote and voice control: You can turn appliances on or off from anywhere using a mobile app or through voice commands with assistants like Alexa and Google Assistant.
-
Energy monitoring: Many models include a feature to track and monitor your real-time energy consumption, helping you manage electricity bills.
-
Scheduling and timers: Set schedules to automatically turn appliances on or off at specific times, providing convenience and energy savings.
-

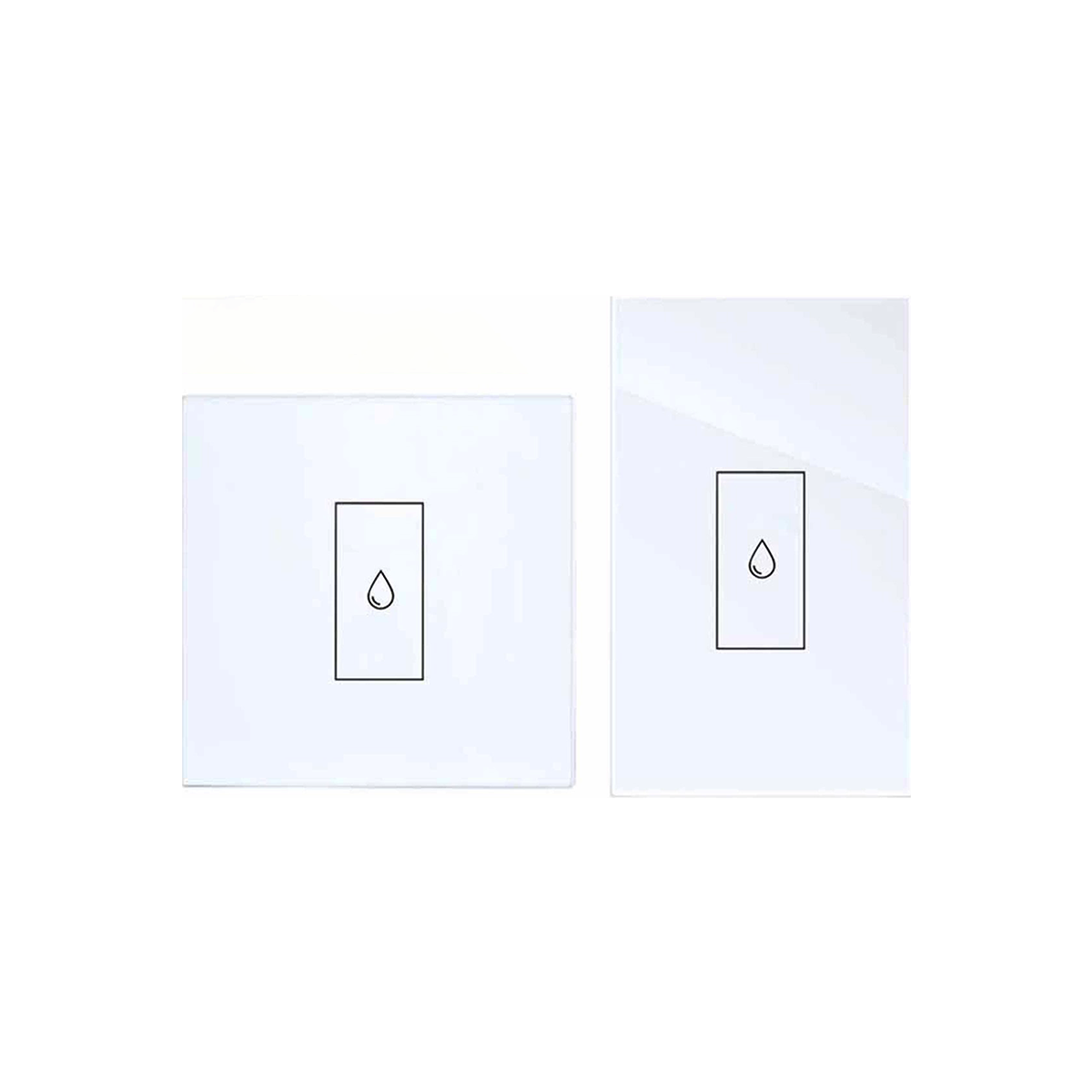

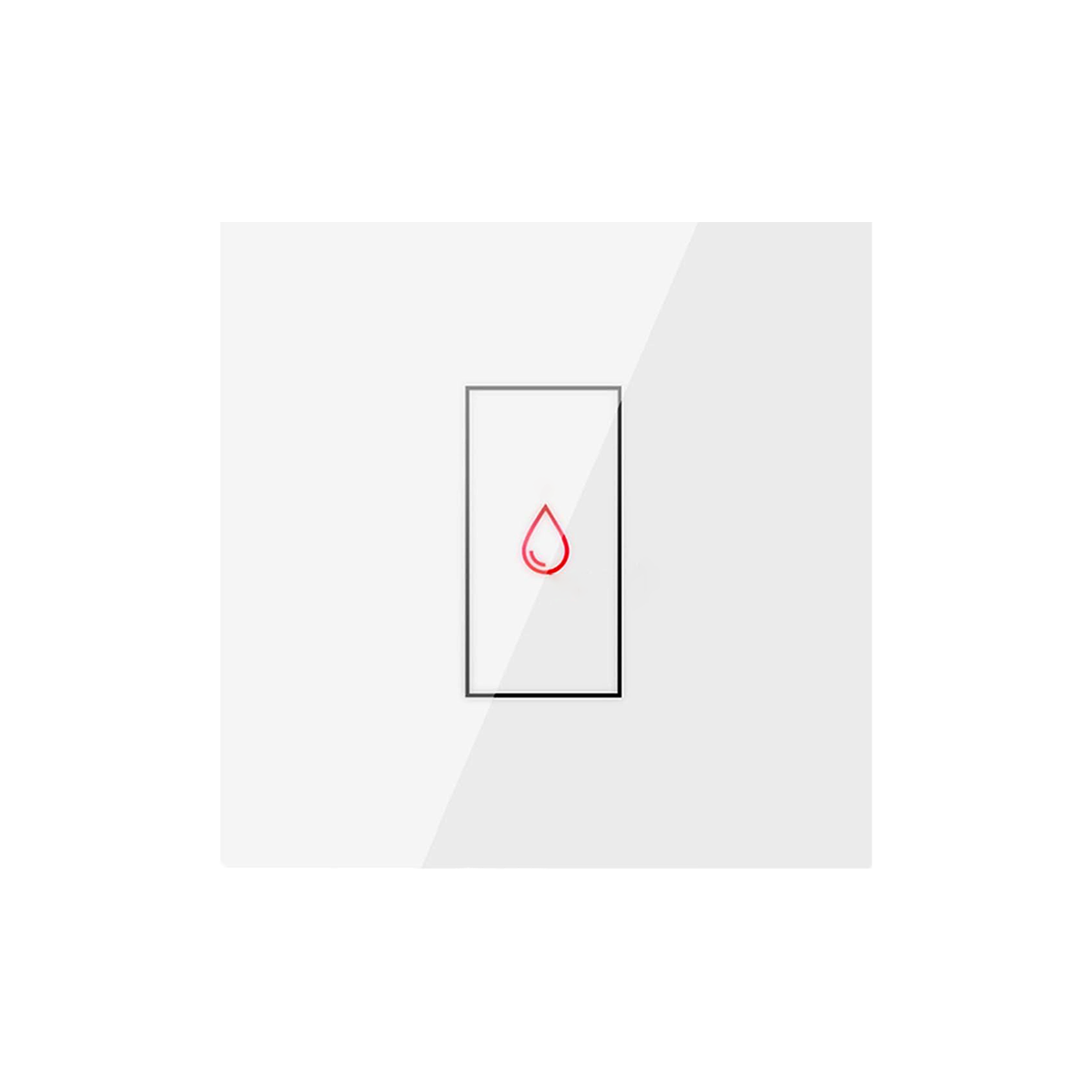

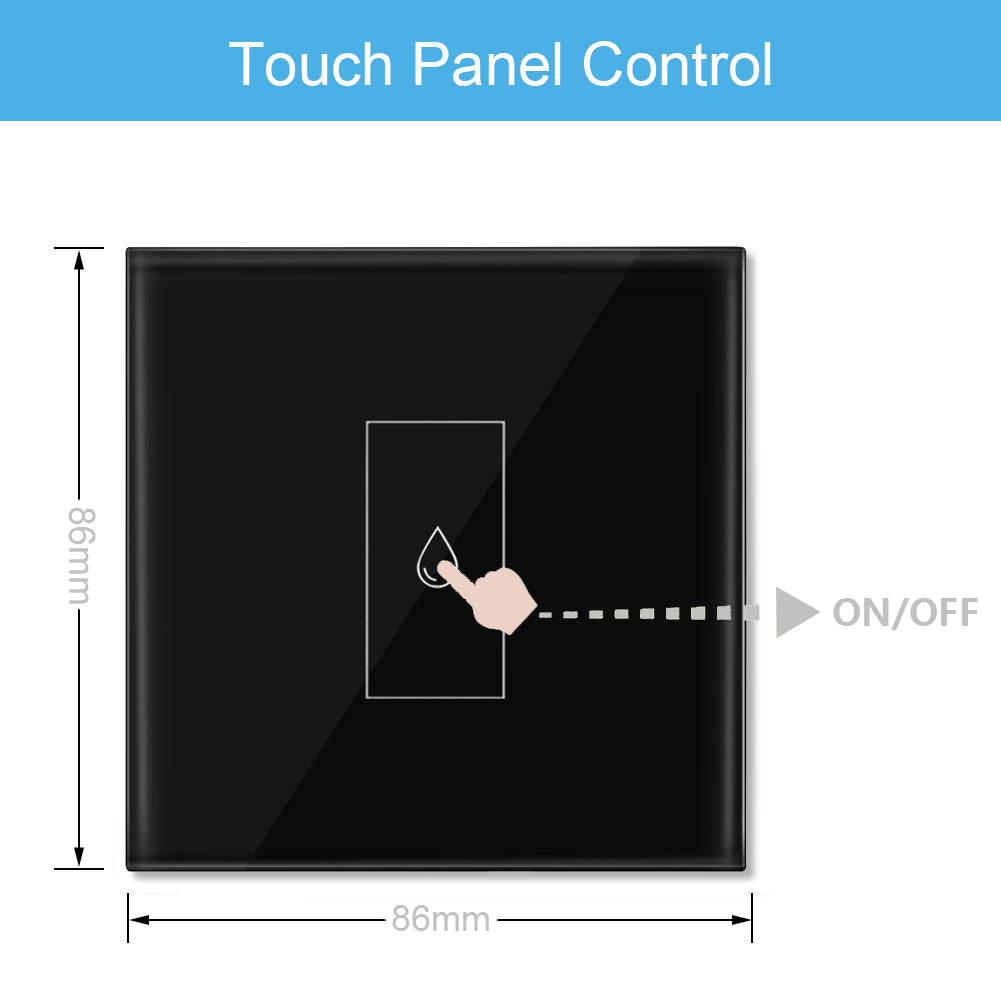

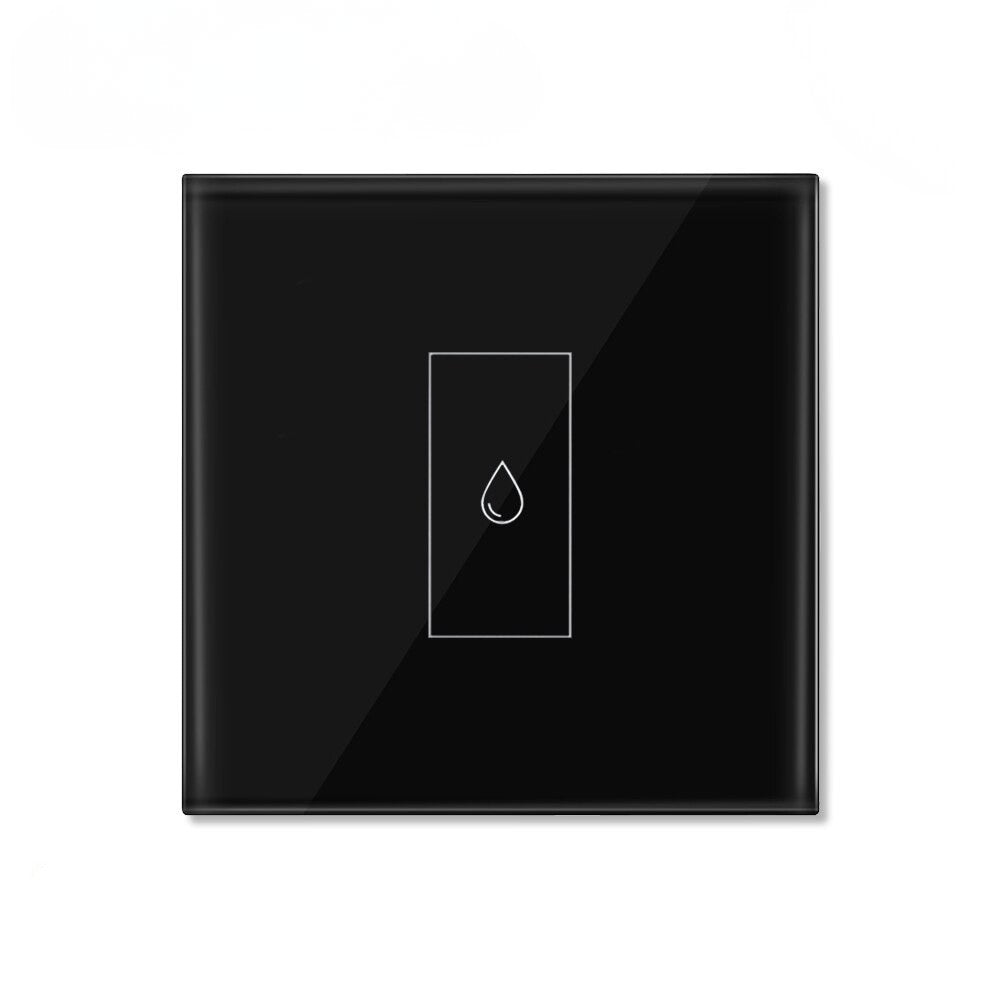

Touch-sensitive glass panel: Features a modern, easy-to-clean tempered glass surface with touch controls.
-
WiFi connectivity: Connects directly to your home's 2.4GHz Wi-Fi network, usually without needing an extra hub.
-

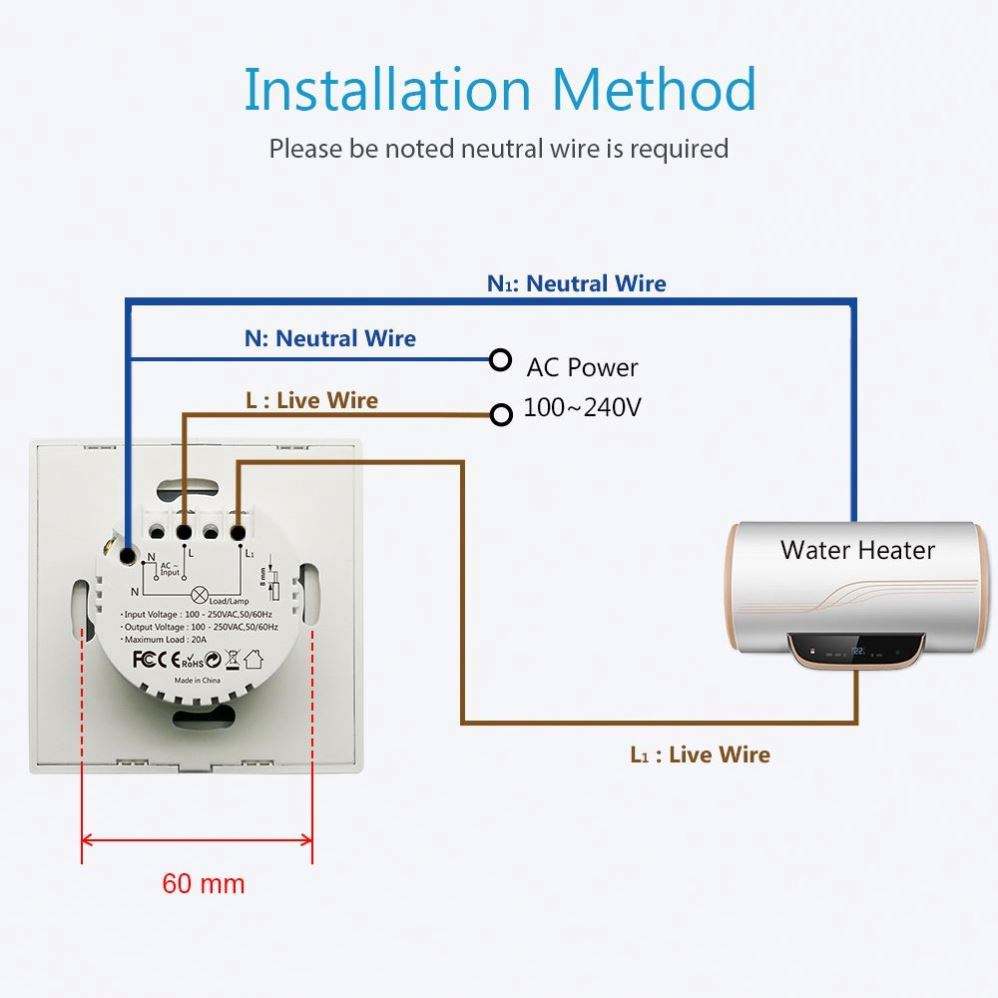

Installation requirement: A neutral wire is typically required for proper installation and operation.
Technical Specifications
| Feature | Details |
|---|---|
| Product Type | Smart WiFi Touch Switch with Power Monitoring |
| Rated Current | 20A |
| Rated Voltage | 100–250V AC, 50/60Hz |
| Connectivity | 2.4GHz WiFi (No Hub Required) |
| App Compatibility | Tuya Smart / Smart Life (iOS & Android) |
| Material | Crystal Glass + Flame Retardant ABS |
| Color Options | White |

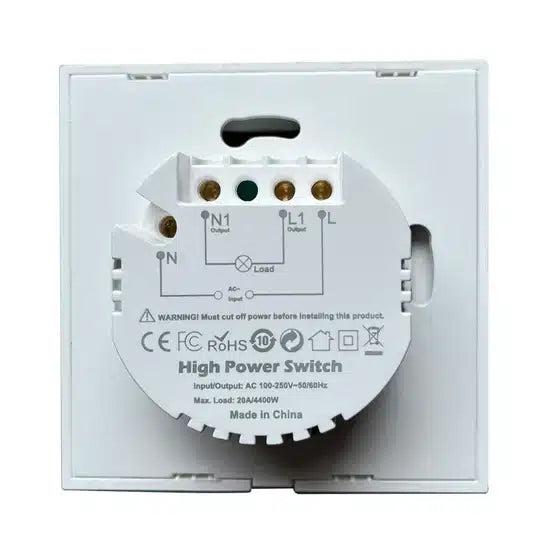

| Installation | Wall Mount (EU Standard Box) |
| Recommended Usage | Geyser, Boiler, AC, Heater, Heavy Appliances |
Working Process
A smart Wi-Fi touch switch 20A is specifically designed to control high-power, high-current electrical loads up to a maximum of 20 amperes (approximately 4400 watts at 220V-240V). It functions like a standard smart switch but is built with heavy-duty internal components to safely manage the electrical current required by powerful devices.
Step-by-step working process
Input: A command is initiated via a touch panel, smartphone app (e.g., Tuya Smart, Smart Life, etc.), or voice assistant such as Amazon Alexa or Google Assistant.
Signal transmission and processing: The Wi-Fi module receives the command and sends it to the MCU. The MCU interprets the command and checks it against safety parameters (e.g., if overload protection is enabled).
High-current circuit control: The MCU sends a signal to the heavy-duty relay. The relay physically closes or opens a high-voltage, high-current (up to 20A) electrical circuit in the connected device.
Status Feedback: The operational status of the switch is tracked by the MCU and communicated to the smartphone app in real time.
Comparison: Smart Touch Switch Vs Regular Switch
| Feature | Smart WiFi Switch | Regular Switch |
|---|---|---|
| Load Capacity | 20A (Heavy-Duty) | Up to 10A |
| Power Monitoring | Yes | No |
| Voice Assistant Control | Alexa / Google Assistant | No |
| Remote App Control | Yes (Tuya / Smart Life) | No |
| Design | Tempered Glass Touch | Basic Plastic Toggle |
