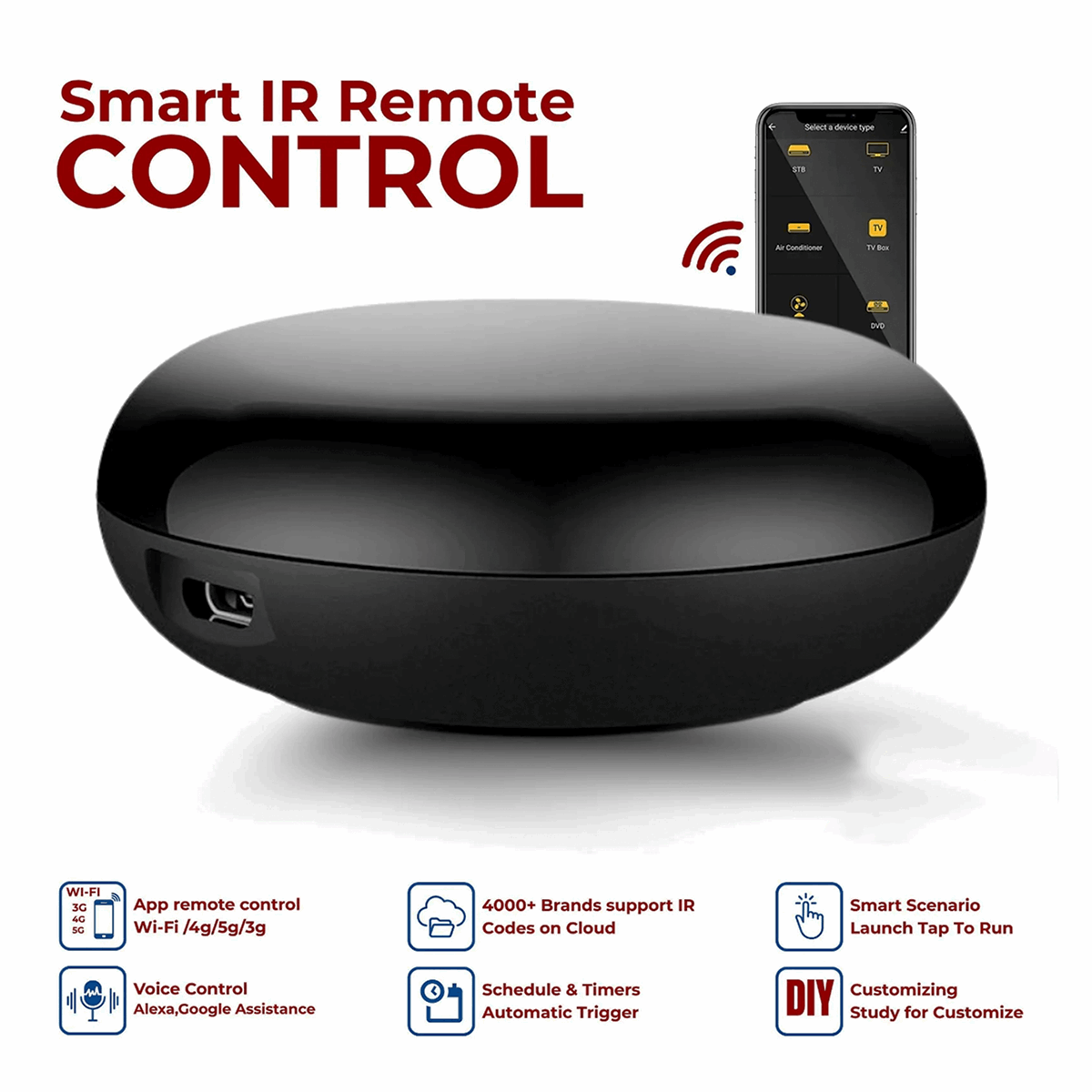

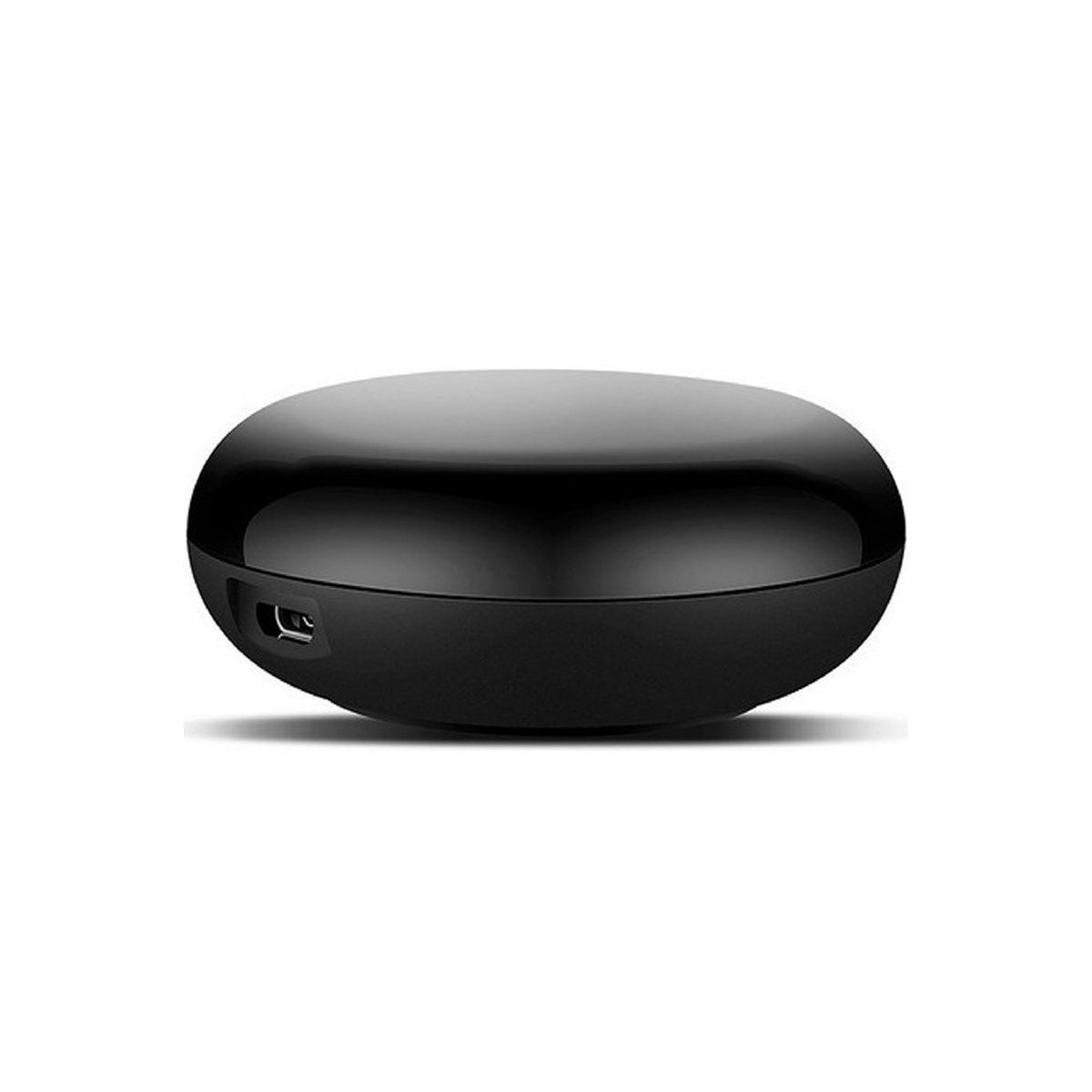

Universal IR Remote

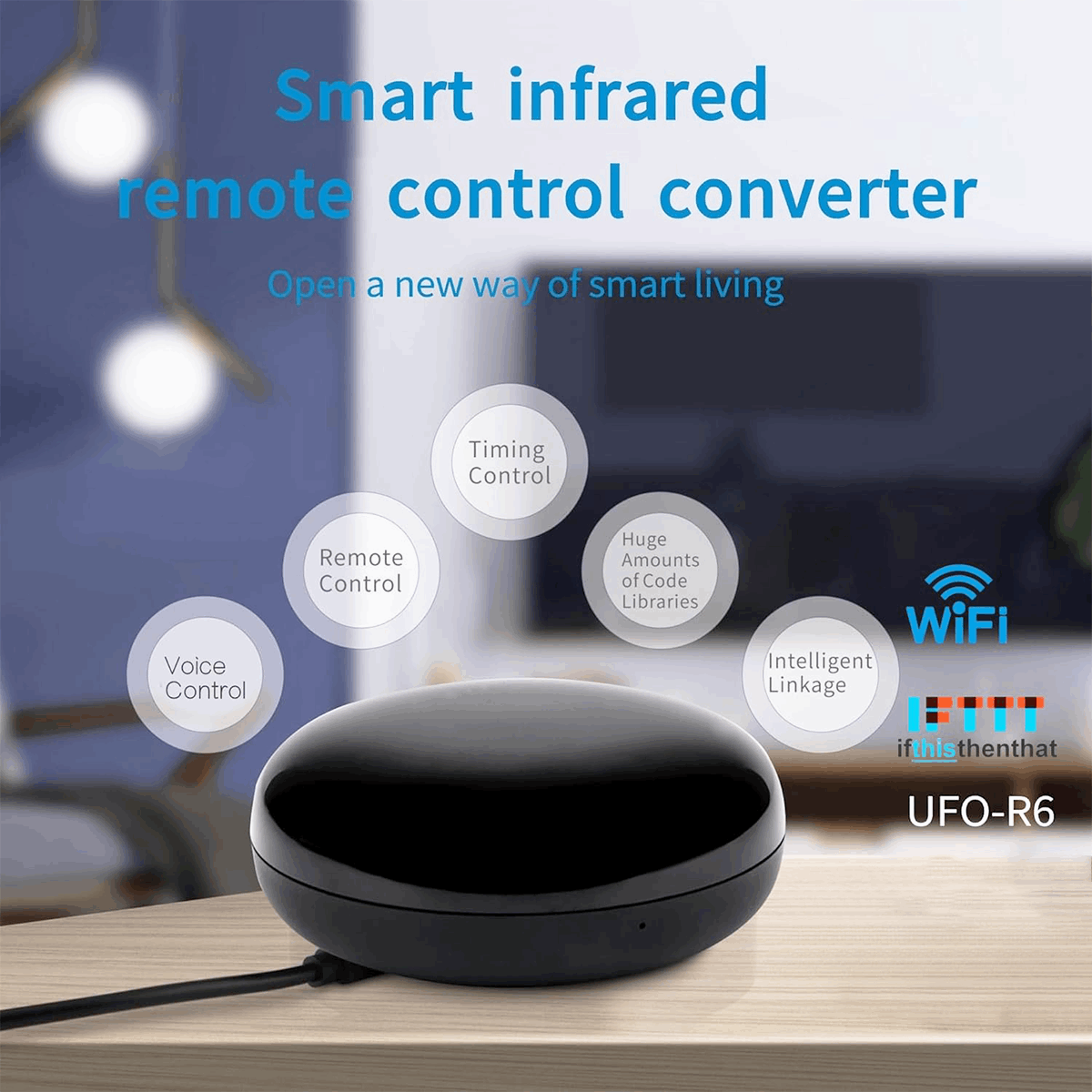

A universal IR remote is a device that lets you control multiple infrared (IR) devices, such as TVs, air conditioners, and fans, with a single controller, eliminating the need for multiple remotes. These can be smart, Wi-Fi-connected devices that are controlled via a smartphone app and controlled via voice commands through an assistant like Google Assistant or Amazon Alexa. Alternatively, there are some small adapters that plug in to turn your phone into a remote.
Key Features and Benefits
-
Consolidation: Replace the stack of remotes with a smart device or your smartphone.
-
Remote Access: Control your home’s IR devices from anywhere with a Wi-Fi connection.
-
Voice Control: Use voice commands with assistants like Alexa and Google Assistant for hands-free operation.
-
Automation: Set schedules, timers, and create routines to turn your devices on or off automatically.
-
Wide Compatibility: Most smart universal remotes are compatible with thousands of brands and models.
📦 Technical Specifications
| Brand | Tuya |
| Type | WiFi IR Remote Device |
| Connectivity | 2.4GHz WiFi |
| Control Type | Infrared (IR) |
| Control Range | Up to 10 meters (line of sight) |
| Power Supply | DC 5V via USB |

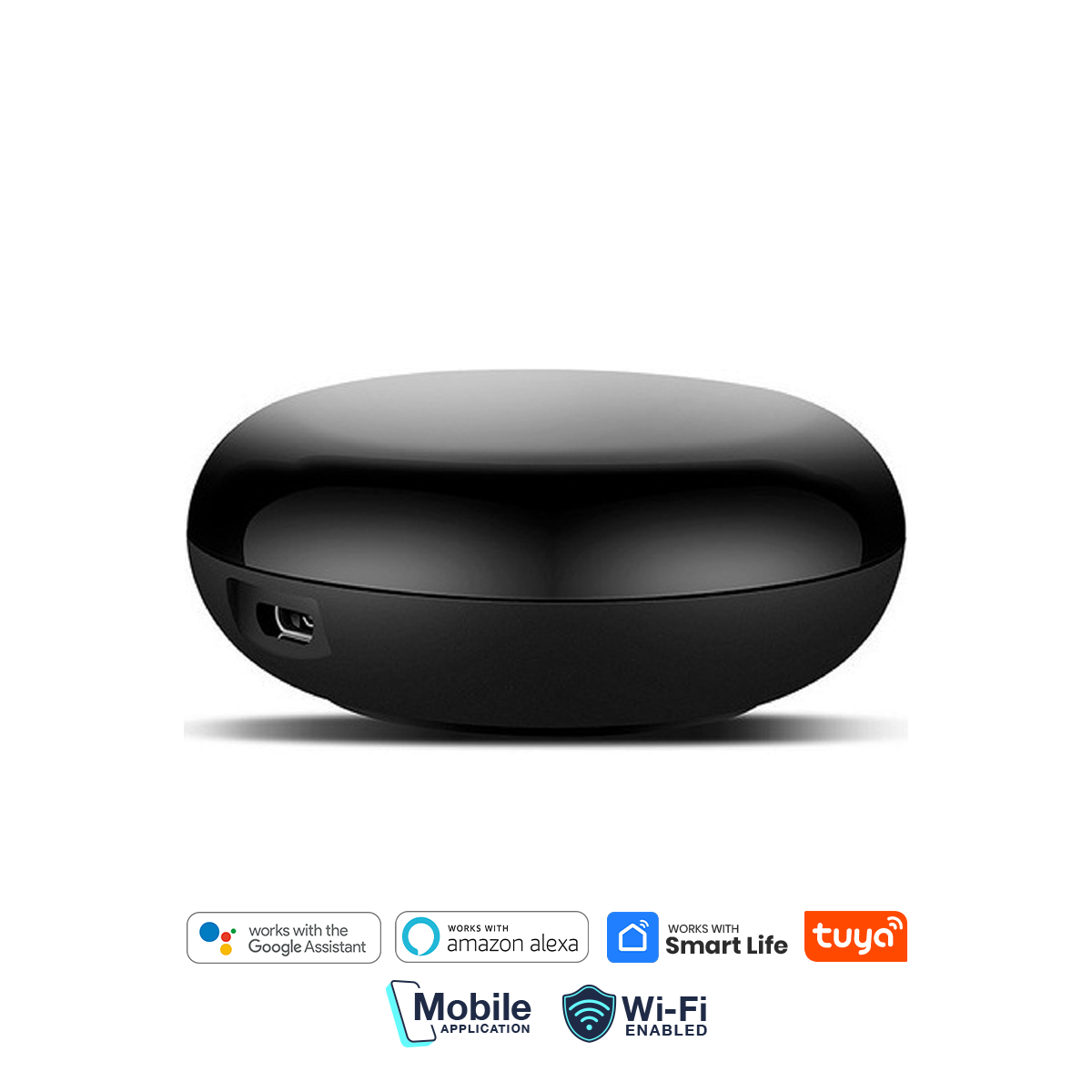

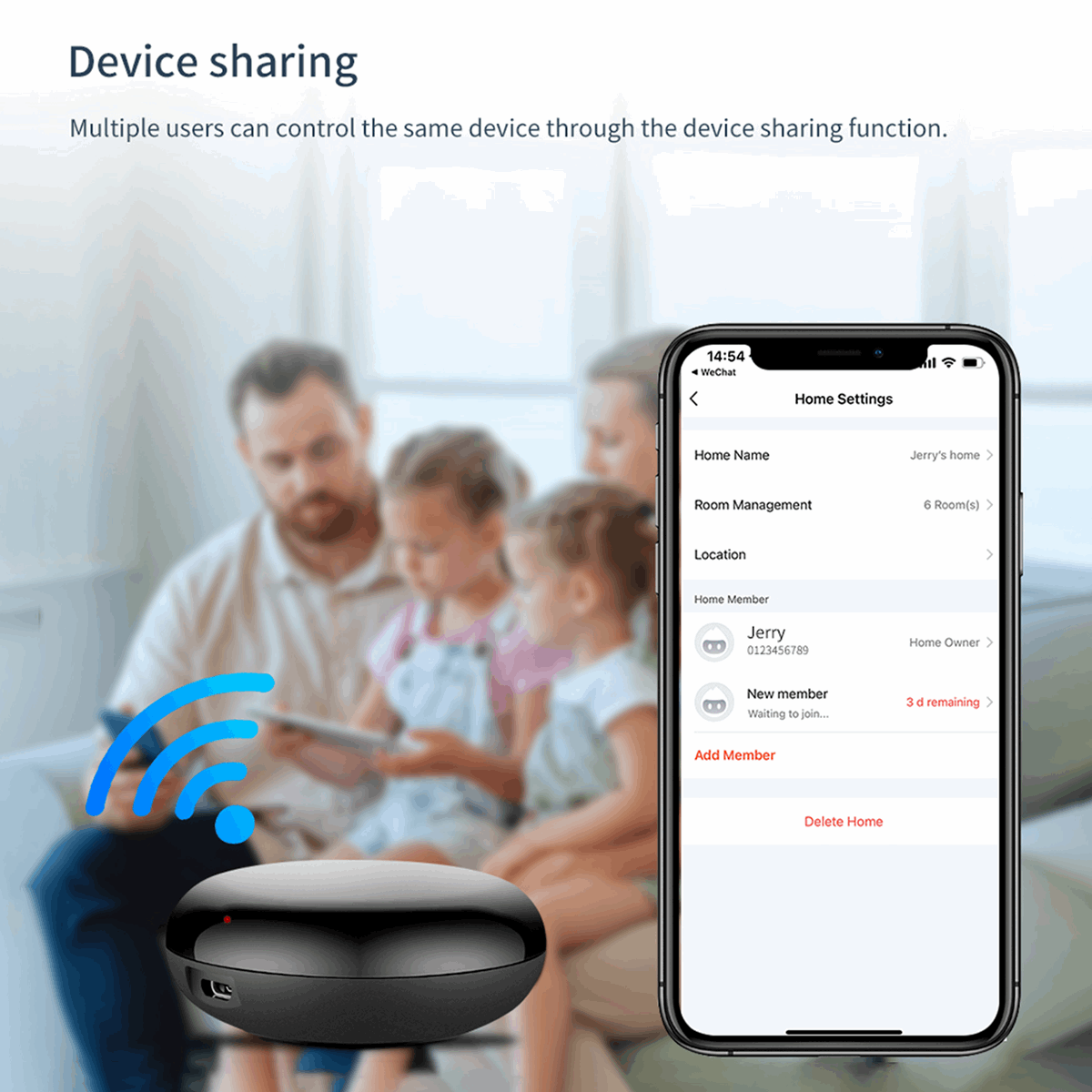

| App Support | Tuya Smart / Smart Life (Android & iOS) |
| Material | ABS Plastic |
| Installation | Plug & Play, App-Based Setup |
| Dimensions | Compact & Portable |
Working Process
The process can be divided into two main steps: setup and operation.
Setup/Programming
Unlike standard remotes that have a fixed set of codes, a universal remote must first be configured to “speak the language” of a specific target device (such as a TV, DVD player, or sound system). This is typically done using one of the following methods:
-
Direct Code Entry: The user finds the specific 3- to 5-digit code for their device’s brand and model from a provided manual or online list and enters it into the remote.
-
Auto Code Search: The remote automatically cycles through its internal library of codes, sending a power signal until the user’s device is turned off, at which point the correct code is stored.
-
Learning Function: More modern universal remotes can “learn” codes directly from an existing remote. The user points the original remote at the universal remote's IR receiver and presses a button. The universal remote captures and stores this specific pulse pattern.
Operation/Signal Transmission
Once programmed, the universal remote operates like any standard IR remote:
-
Button Press: When a user presses a button on the universal remote (e.g. "Volume Up"), an internal integrated circuit detects the button press.
-
Code Retrieval: The circuit consults its stored database for a specific binary code (a sequence of 1s and 0s) that corresponds to that command for the selected device brand.
-
Signal Modulation and Transmission: The remote's infrared light-emitting diode (IR LED) then emits that command as a series of invisible, rapid pulses of infrared light. To prevent interference from ambient light, these pulses are modulated at a specific carrier frequency, typically around 38 kHz.
-
Reception and Execution: The target device's IR sensor receives the modulated signal, filters the carrier frequency, and a built-in microcontroller decodes the binary data. If the code is recognized and valid, the device executes the command (e.g., increase the volume).
📊 Smart IR Remote vs Traditional Remote
| Feature | Smart IR Remote | Traditional Remote |
|---|---|---|
| Control Method | App + Voice | Manual Only |
| Remote Access | Yes | No |
| Device Support | Multiple (TV, AC, Fan, etc.) | Single Device |
| Scheduling | Yes | No |
| Smart Home Compatible | Alexa / Google Home | No |
