Universal Smart Wifi Plug 16A
The Universal Smart Wi-Fi Plug 16A is a device that plugs into a standard outlet. You control and monitor appliances, especially high-power devices, remotely. It connects to your home’s Wi-Fi, enabling control via a smartphone app (like Tuya or Smart Life) or voice assistants like Amazon Alexa and Google Home. The “16A” rating means it can safely handle up to 16 amps. It’s suitable for powerful appliances like air conditioners, water heaters, and microwaves.
Key Features
-
Remote Control: Turn appliances on or off from anywhere using a smartphone app.
-
Scheduling: Set specific times for appliances to turn on or off automatically.
-
Voice Control: Use voice commands through smart assistants like Alexa and Google Home to operate connected appliances.
-
High Power Capacity: The 16A rating is designed for high-power appliances, which is more than a standard 10A plug.
-
Energy monitoring: Some models include a feature to track and manage the energy consumption (in kWh) of connected devices in real time.
-

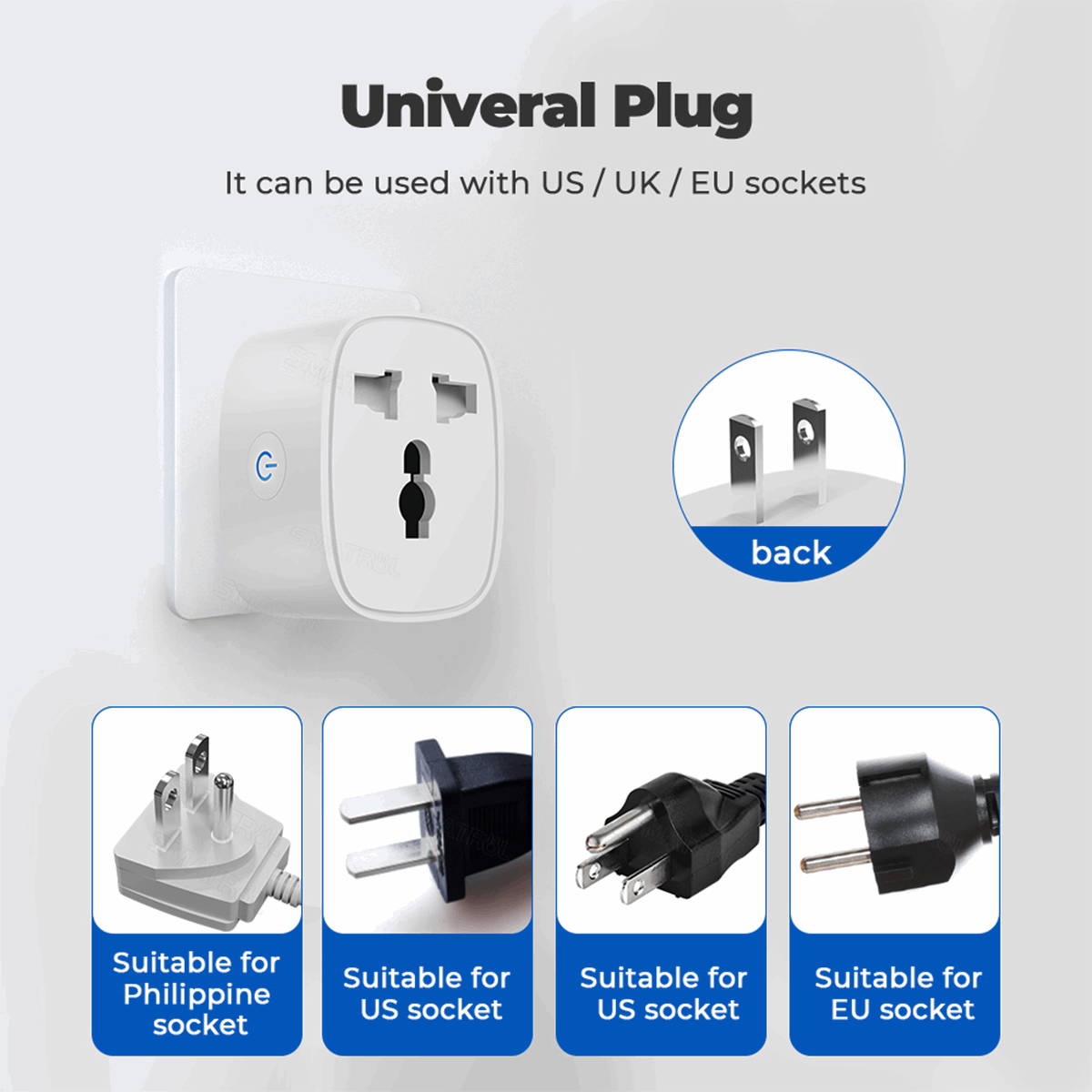

Universal compatibility: It can be plugged into a “universal” socket and works with devices in many different regions.
-
Safety features: Often includes overload and overheating protection to prevent damage or fire risks.
-
No hub required: Connects directly to your existing 2.4GHz Wi-Fi network without the need for an additional smart home hub.
Technical Specifications:
| Specification | Details |
|---|---|
| Rated Current | 16A |
| Voltage | 100–240V AC |
| Connectivity | Wi-Fi 2.4GHz (No hub required) |
| Control App | Tuya Smart / Smart Life |
| Voice Assistant Support | Amazon Alexa, Google Assistant |
| Material | Fireproof ABS + PC |
| Installation | Plug-in (DIY, no electrician required) |
Working Process Of Universal Smart Wifi Plug 16A
The Universal Smart Wi-Fi Plug 16A acts as a bridge, adding smart control, automation and energy monitoring to any connected high-power appliance via Wi-Fi and a smartphone app.
Working Principle
A smart plug is an adapter that fits into an existing wall socket and your appliance plugs into it. It has a built-in relay that physically cuts or restores the flow of electricity to the appliance, controlled by internal electronics.
-
High Power Capacity: The 16A rating means it can safely handle heavy-duty appliances like air conditioners, geysers (water heaters), ovens and washing machines, which draw more current than standard 10A or 13A plugs.
-
Internal Relay: A mechanical relay inside the plug acts as a switch. A small electrical signal from the internal microcontroller triggers this relay to make or break a 16A circuit.
-
Wi-Fi Module: A 2.4GHz Wi-Fi chip is the communication hub, connecting the plug to your home network without the need for a separate hub.
-
Microcontroller and Sensors: A microcontroller manages the logic, receives commands, and interacts with sensors that monitor potential energy to track real-time power consumption (kWh).
-
Manual Control: A physical on/off button on the plug allows for manual operation, even when Wi-Fi is off.
Working Process (Step by Step)
-
Physical Connection: The smart plug is inserted into a wall outlet, and an appliance (e.g., a 1.5-ton AC unit) is plugged into the smart plug’s universal socket.
-
Network Setup: Through an app like Tuya Smart or Smart Life, you connect the plug to your home’s 2.4 GHz Wi-Fi network.
-
Command Execution (Remote): You tap the on/off button in the app or issue a voice command via Amazon Alexa or Google Assistant. The command travels to the cloud server and back to your home router, then to the smart plug. The smart plug’s microcontroller receives the instructions and changes the state of an internal relay, turning the device on or off.
-
Energy Monitoring (if applicable): If the model includes this feature, internal sensors continuously measure energy usage and send this data to the cloud, allowing you to view real-time consumption and historical data in the app.
-
Automation and Safety: Timers, schedules, and automation (e.g., turning on the heater at a specific time) are managed by the app’s software, and built-in overload protection features ensure the safe operation of high-power devices.
16A Smart Plug vs Regular Plug:
| Feature | 16A Smart Plug | Regular Plug |
|---|---|---|
| Current Rating | 16A (High Power) | Up to 10A (Standard) |
| Remote App Control | ✅ Tuya / Smart Life | ❌ |
| Voice Control | ✅ Alexa / Google Assistant | ❌ |
| Timer/Scheduling | ✅ Built-in | ❌ Manual Only |
| Safety Features | ✅ Overload & Surge Protection | ❌ None |
| Plug Type Compatibility | ✅ Universal | ❌ Country Specific |
